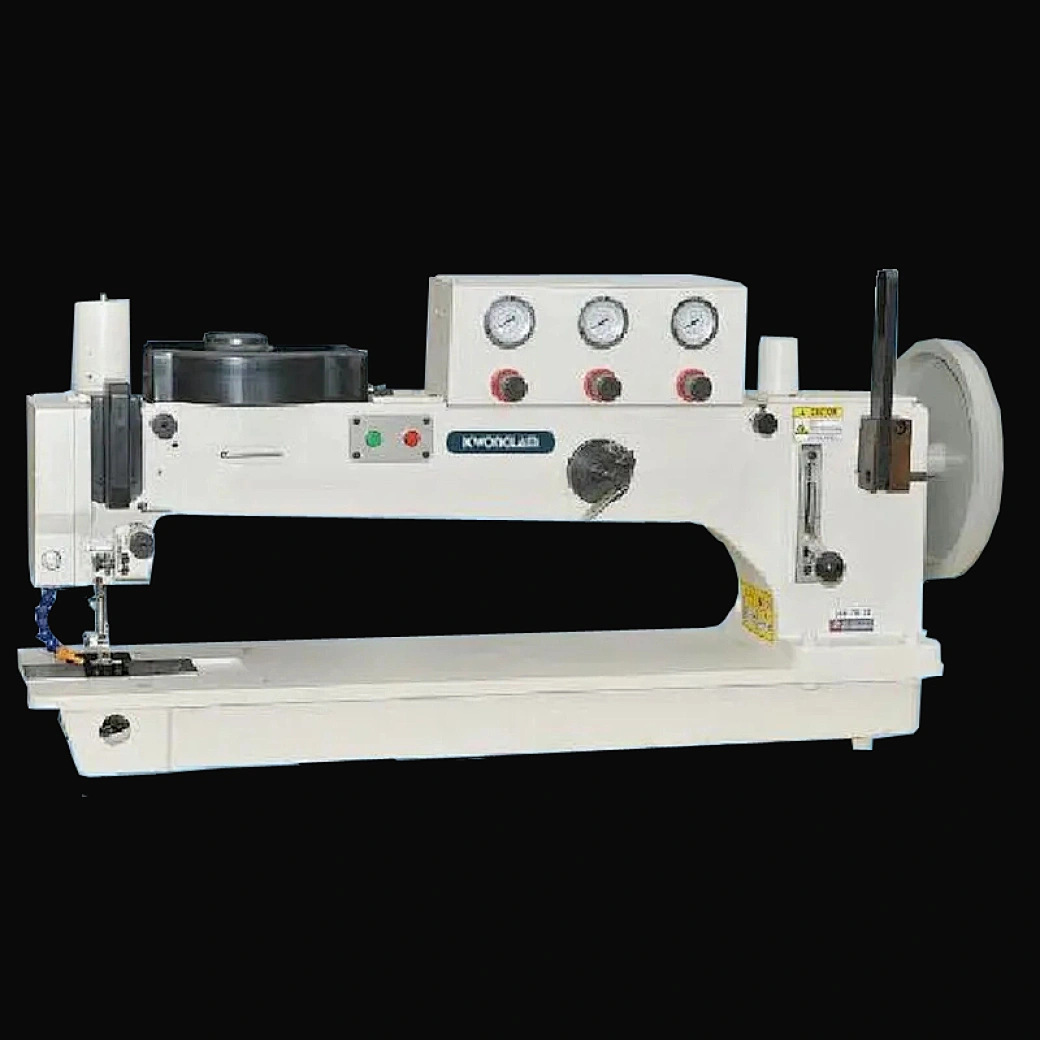

KL-366-76-12HM High Arm & Long Arm Heavy Duty Zigzag Sewing Machine (Large Sail Sewing Machine)
KL-366-76-12HM High Arm & Long Arm Heavy Duty Zigzag Sewing Machine (Large Sail Sewing Machine)

KL-366-76-12HM High Arm & Long Arm Heavy Duty Zigzag Sewing Machine (Large Sail Sewing Machine)

Model NO.
KL-366-76-12HM
Quantity:

Description

KL-366-76-12HM High Arm & Long Arm Heavy Duty Zigzag Sewing Machine (Large Sail Sewing Machine)

KL-366-76-12HM High Arm & Long Arm Heavy Duty Zigzag Sewing Machine (Large Sail Sewing Machine)

  • Zigzag for over-length and extremely thick materials
  • top and bottom synchronous feeding
  • synchronous wheels, make it more stable and stronger feeding power for the purpose of multilayer thick materials sewing

Parameters

Model

KL-366-76-12-HM

Maximum sewing speed

700r.m.p.

Maximum stitch length

10mm(0-10)

Maximum swing of zigzag sewing

14mm(0-14)

Zigzag sewing mode

Two points, three points, four points

Needle bar stroke

50.8mm

Take-up lever stroke

106.8mm

Needle

DY×3 27#

Shuttle hook

Large semi rotary hook

Presser foot lifting height

20mm

Lubrication system

Hand control

Working space

760×260mm

Motor

550W Electronic speed control motor


Configuration

* KL-750N servo motor

* HM550W servo motor

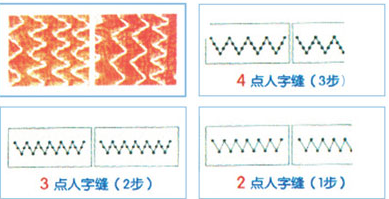

Stitch Sample/ Applications
