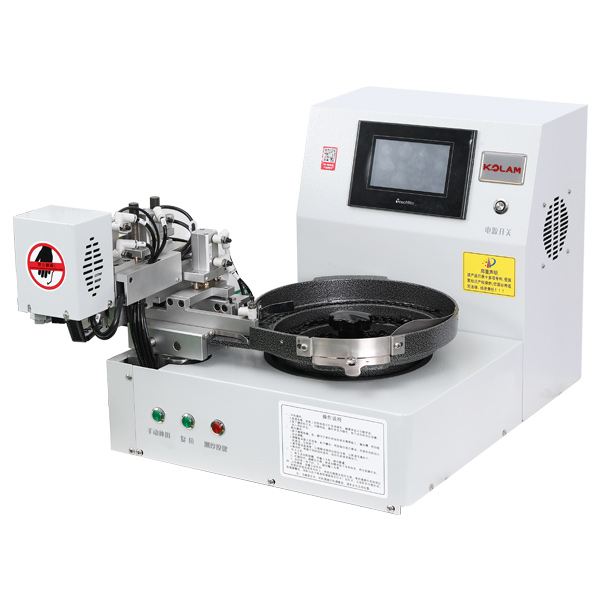

KL-998-1903D Full Automatic Button Feed And Attaching Machine(Motor)

Description

KL-998-1903D Full Automatic Button Feed And Attaching Machine

1.Electri control system:Adopting the PLC integrated system developed by the company,it has fast processor speed,low failure rate,and very convient maintenance;

2.One-click width and thickness measurement function:If different size of buttons,just press one button and put one buttons into the thickness measurement plate,adjusted the width、blocker and thickness automaticlly;

3.Motor  button feeding:Adopting high-precision stepper motor button feeding method,the feeding position is extremely precise、accurate、fast、and soft,the noise is low,and the service life is long;

4.Double functional:Two different size of buttons settled in one programe,size change automatically ,no need manual inset,easy operation,improvement of production effciency;

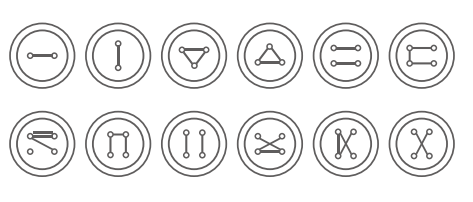

5.Function for two-hole button;

6.Support second time thread trimming function;

7.Anti-collision system:Operator foot on the pedal long times continue feeding button,mechnical system no collisions;

8.One key to open the"big button"function:When sewing big buttons(button diameter≥20mm),only need to open"big button ON"on the screen,and the system parameters will be adjusted automatically;

9.This equipment can be used with button sewing machines of various brands and models such as JUKI and BROTHER models, and can also be used with the existing button sewing machines used in garment factories, which greatly saves the cost of purchasing new button sewing machines;

(JUKI 1903、JUKI 373、JUKI 1377、BROTHER 438)

Detail:

---

Video:
