KL-KPK Automatic Fabric Cutting Machine

KL-KPK
Quantity:
Contact Now
add to cart
Description:

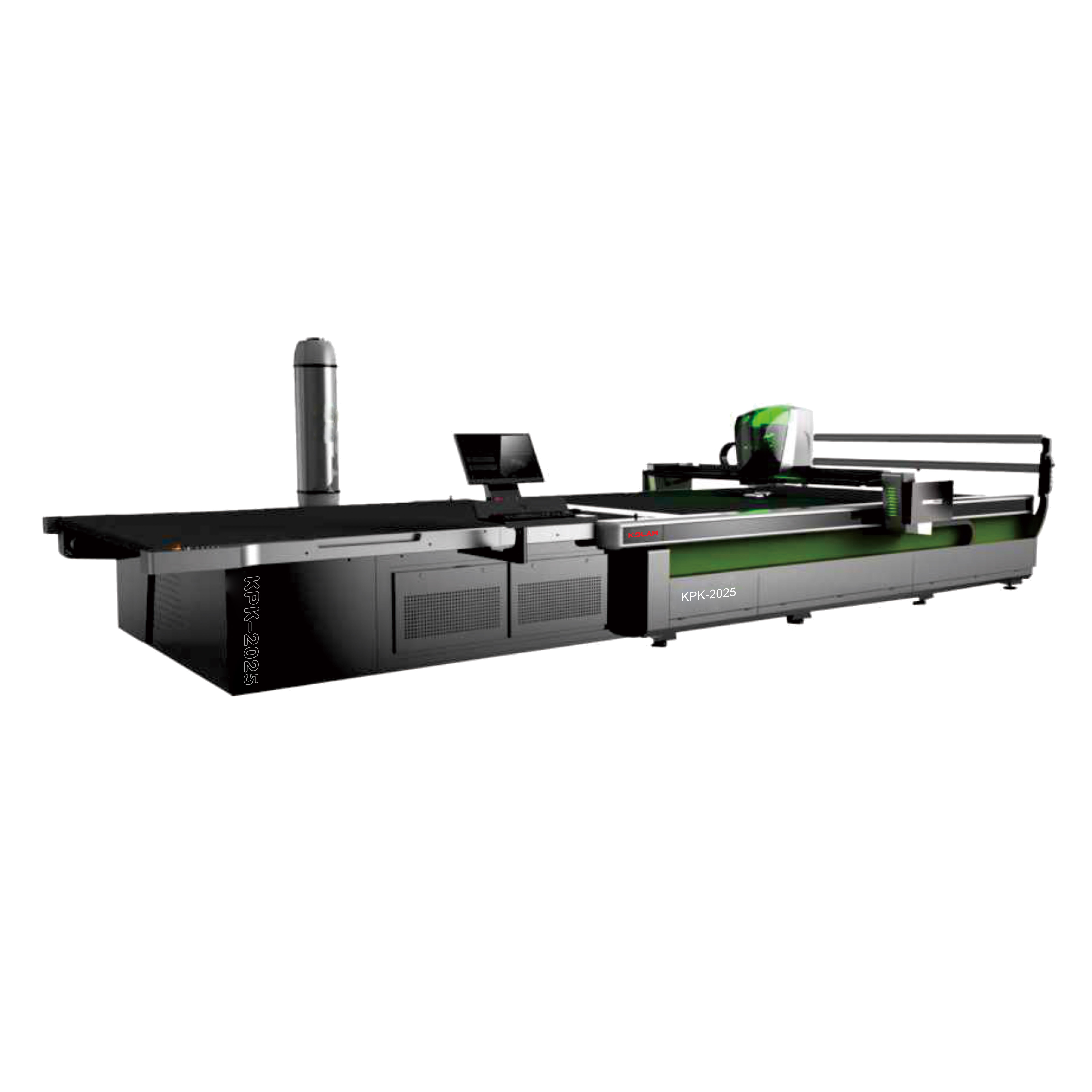

KL-KPK Automatic Fabric Cutting Machine

1. Control System: Equipped with the CutV4.0 cutting control system, it achieves high-precision, high-efficiency intelligent cutting by optimizing arc, sharp corner, and wave trajectories, along with automatic symmetrical graphic recognition.
2. Electrical System: Equipped with an automatic control electrical system featuring numerous imported components and a high-speed servo drive, it ensures high-precision, stable, and efficient operation of the cutter.
3. Transmissio System: Adopts a high-precision rack and gear transmission system to ensure stable start/stop, accurate transmission, and long service life.
4. Cutting head: Adopting a cutter head based on Japanese principle system, its core components are high-hardness, lightweight, and durable, ensuring high stability and cutting accuracy during high-speed operation.
Specificaation:
Model.NOKPK-1725KPK-2025KPK-2325KPK-1733KPK-2033KPK-2333
Cutting Area(w*l)1650*2300mm1950*2300mm2230*2300mm1650*3100mm1950*3100mm2250*3100mm
Machine Dimensions5900*2950*2150mm5900*3250*2150mm5900*3550*2150mm7500*2950*2150mm7500*3250*2150mm7500*3550*2150mm
Weight4.2T4.5T4.8T4.8T5T5.5T

Max Positioning Speed70m/min
Cutting Thickness7/9cm
Cutting Accuracy≤±1mm
Power16-25kw
Cutting StyleStraight Knife Cutting
SoftwareCutting Program
Control SystemCUT V4.0
Cooling SystemAuto Air Cooling System
Sharpen WaySharpening Stone System
Max Speed4500rpm/min
Motor & DriverPanasonic Servo Motors & Drivers
Machine PowerAC380V/50Hz
Air Pressure Supply0.55MPa 160L/min
