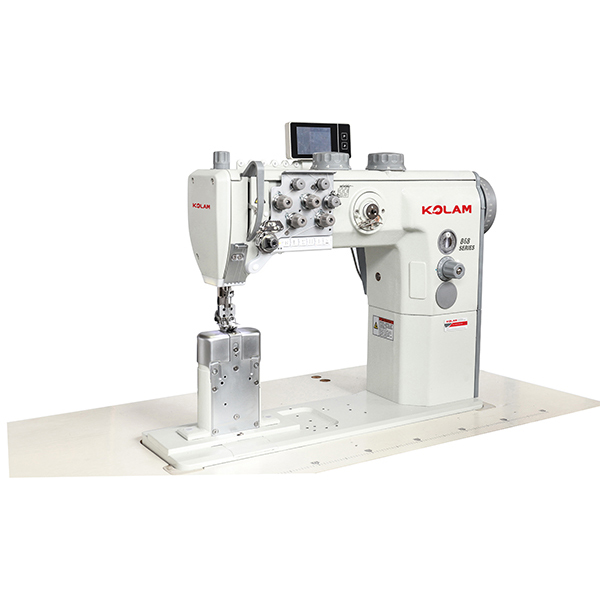

KL-868-220226/221226 Double Needle Post Bed Compound Feed Lockstitch
KL-868-220226/KL-868-221226
Quantity:
KL-868-220226/221226 Double Needle Post Bed Compound Feed Lockstitch
Description：
1.The powerful compound feed system including feeddog feeding, needle feeding and alternating presser foot feeding, guarantees feeding material freely without shift.
2.The lifting height of presser foot can reach 20mm whichis convenient to sew heavy materials.
3.Max. alternation of presser foot reach 9mm which cansew differential thick materials.
4.Large working space (335mm width and 295mm height)which would be easier for large area materials.
5. Efficient basic functions such as automatic thread trimmer,automatic back tacking，automatic lubrication system，walking foot and pneumatic presser foot lifter.
2.The lifting height of presser foot can reach 20mm whichis convenient to sew heavy materials.
3.Max. alternation of presser foot reach 9mm which cansew differential thick materials.
4.Large working space (335mm width and 295mm height)which would be easier for large area materials.
5. Efficient basic functions such as automatic thread trimmer,automatic back tacking，automatic lubrication system，walking foot and pneumatic presser foot lifter.
coding ：
DURKOPP ADLER 868
Detial:

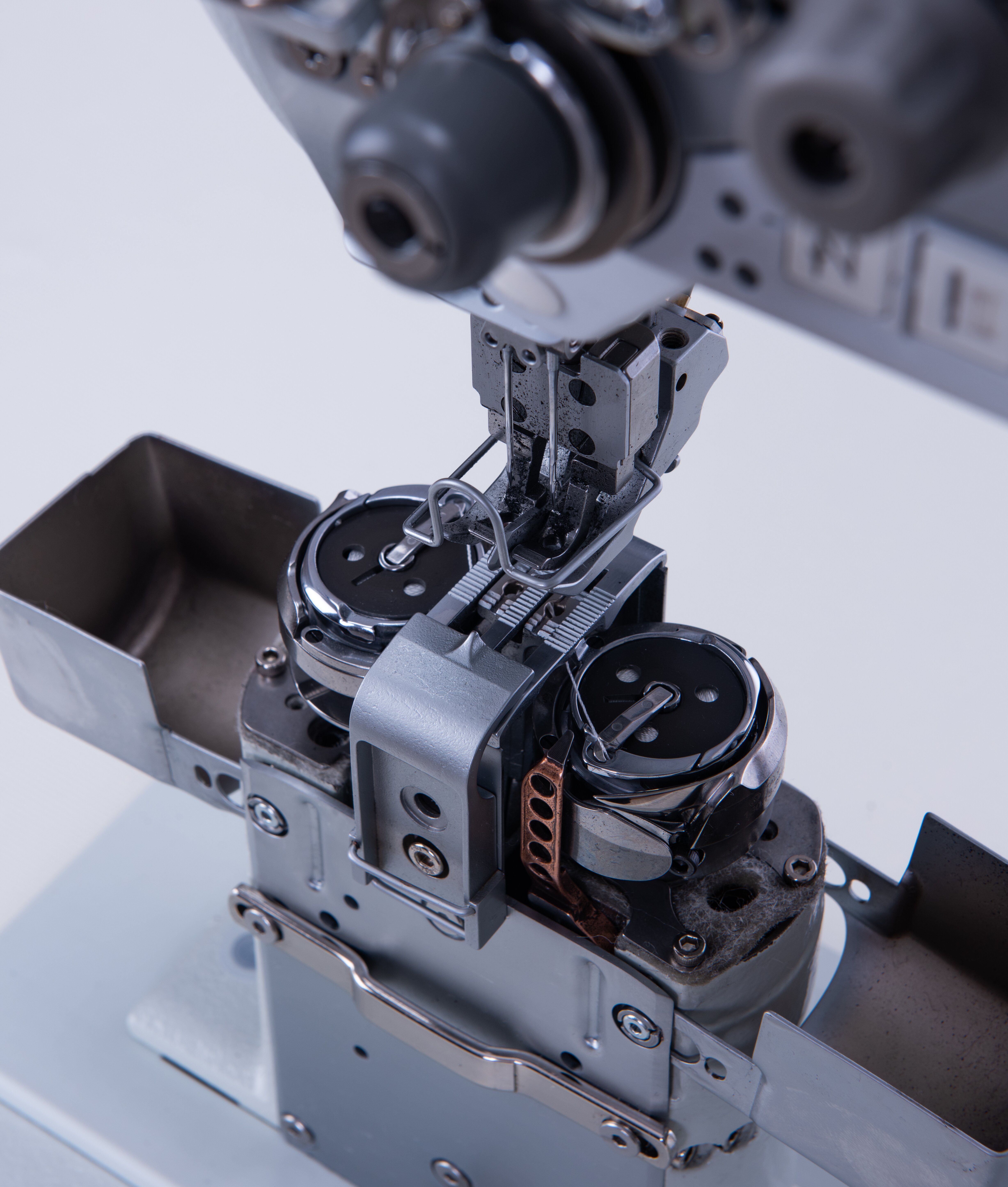

New hook technology with large bobbin twin needle
Scope of sewing:
1.The Max. stitch length is 9mm.
2.The thickest thread is Nm10/3.
3.The Max. sewing speed is 3000 R.P.M.
2.The thickest thread is Nm10/3.
3.The Max. sewing speed is 3000 R.P.M.

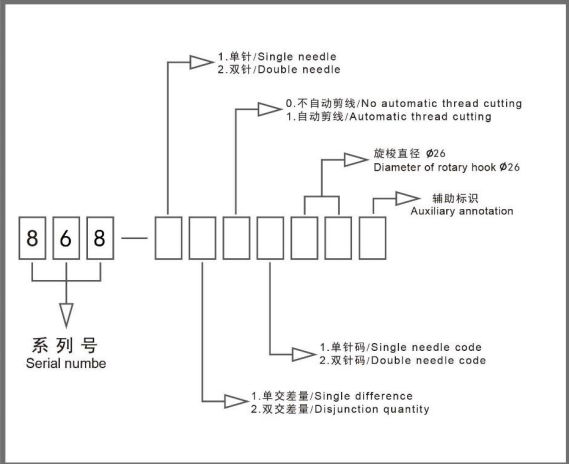

Code diagram:
