Description

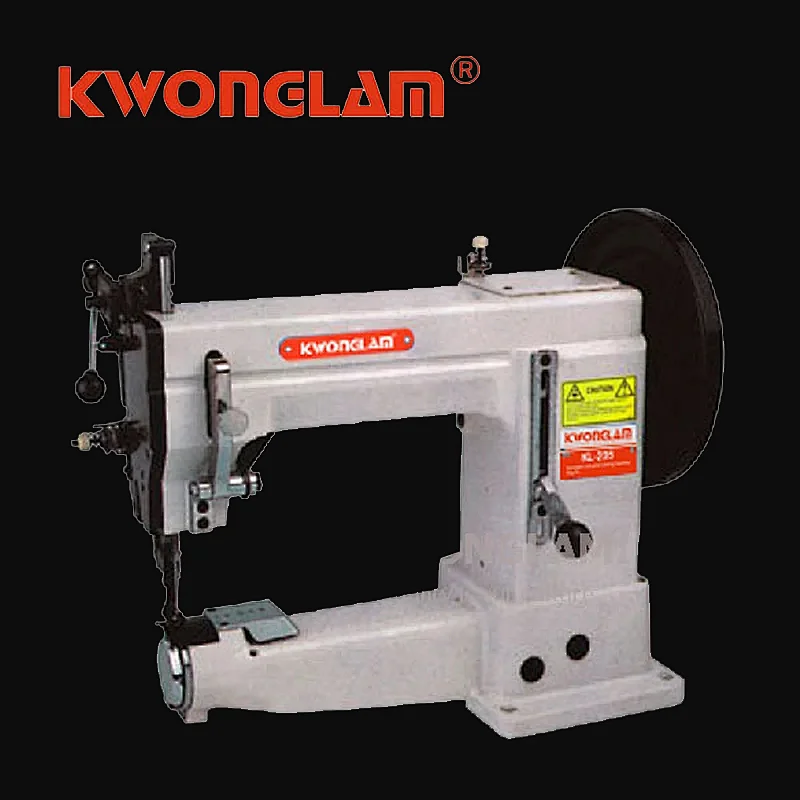

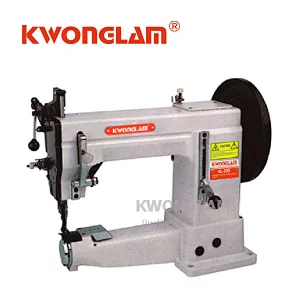

KL-205 Single needle Top and bottom feed Cylinder Bed walking foot

- Presser toot can be litted up to 20mm for sewing extremely thick materials
- working space 320mm
- suitable for large items. Large barrdel shuttle reduse mumber of thread shanges and to raise sewing efficiency.
- for sewing extreme heavy materials such as handles svitcdses or buiesfacases basehall mittens,seat belts,chair cushions,shoes,etc
Parameters
Model | KL-205 |
Maximum sewing speed | 800r.p.m |
Stitch length | 0-11mm |
Take-up lever stroke | 96mm |
Needle bar stroke | 56mm |
Presser foot lifting height | Hand control | 13mm |
| |
Knee control | 25mm |
Bed size in dia | 81mm |
Shuttle hook | KSP-204N |
Needle | DY×3 27# |
Lubrication system | Manual lubrication |
Motor | 55OW 4P |
Height of the sewing bed | 78mm |
Configuration
* KL-750N servo motor

* HM550W servo motor

Stitch Sample/ Applications
