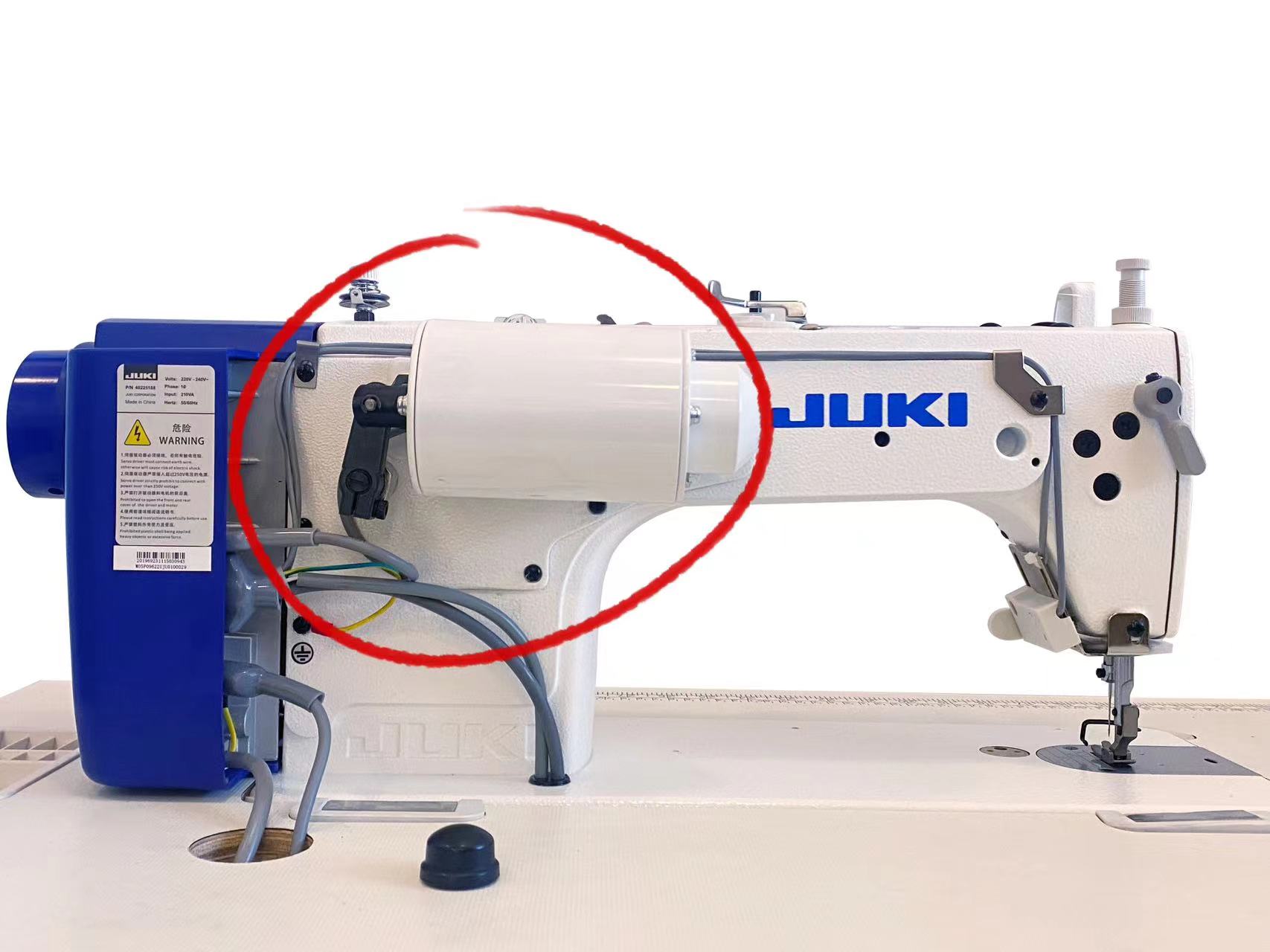

AK85C Automatic Foot Lifter Device For JUKI DDL7000A

AK85C
Automatic Foot Lifter Device for JUKI Industrial Single Needle Sewing Machines
Quantity:
Contact Now
add to cart
Description：

         Spare part:AK85C Automatic Foot Lifter Device For JUKI DDL7000A
1.Simple installation；
2.Usable in combination with the knee lifter；
3.Original quality, made in Taiwan;
Application：
1.Generic auto presser foot lifter device;
2.Window-plate-mounting type;
3.Suitable for single needle industrial sewing machine like JUKI Models:DDL-7000A；
Installation：
1.Remove the rear cover of the macine;
2.Replace the connecting hinges screw with the silver screw as shown in the figure;
3.Remove nut,washer;
4.Install the attached rear cover on the machine,and ensure that the siot of link arm is locked on the special screw;
5.Tighen the solenoid body on the rear cover plate with washers and nuts;
6.Push the solenoid shaft in the arrow mark direction;
7.Turn the connecting shaft in the most counter clockwise direction.Mark sure the movement of the whole mechanism is very smooth before tightening the clamping screw;
8.Plug the wire of the foot lifter into the control box of the motor.Re-check that he wire is not obstructing any moving parts;
9.In some type of motor,be sure to properly set the Dip-Switch in the control box before using the auto foot lifter;
Installation video：
Specification：
1.Presser foot lifting amount:
(1)Manual presser foot lift:5.5mm；
(2)Automatic presser foot lift(AK85-C):9mm；
(3)Knee lift presser foot:13mm;
2.Max. presser foot pressure:88N；
