KL-1390A-360 Head Rotating Template Machine

KL-1390A-360
The head rotates 360°
Quantity:
Contact Now
add to cart
Description:

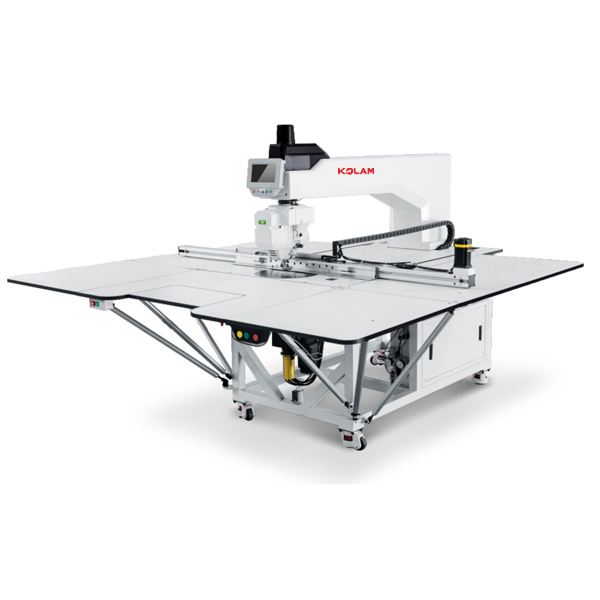

KL-1390A-360 Head Rotating Template Machine
1.Elevated laser head for greater space;The smoke and dust absorption and filtration purification system to reduce the emision of particulate matter;
2.Equipment operation status monitoring,fault diagnosis,program upgrade,sewing pattern editing,input storage,and other function can be achieved through the operating system computer;
3.Dry head,oil free,without stains on material;
4.360° infinite rotation,no reverse sewing,fast rotation angle,less empty feeding and high efficiency;
5.Adopting electronic wire clippers and electronic loosening devices, which can be adjusted through the control panel;
6.Independent closed-loop stepper motor driven circular knife thread cutting mechanism, thread cutting head length ≤ 5mm;
7.New auxiliary presser foot mechanism, cylinder driven, height 15mm ;
8.Set functions such as bottom thread allowance, thread breakage alarm, sewing counting, etc ;
9.The oil supplied by rotary hook can be adjusted and controlled through the control panel ;
10.Integrated large base plate, low vibration and noise, easy installation and maintenance ;
11.Folding table, nice overall appearance, convenient installation and maintenance ;
12.Mechanical presser foot structure,easy to handle thick materials such as leather;
13.Central pressure foot independent closed-loop stepper motor drive,adjustment range: 0-5mm (factory set to 2.5mm);
Detail:

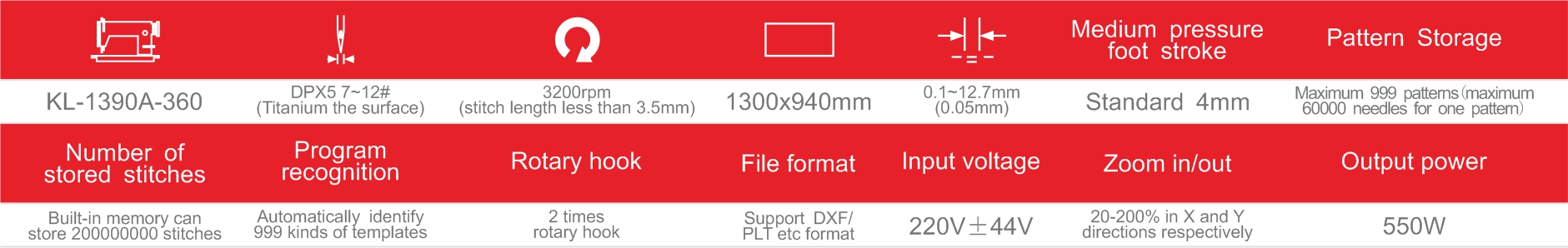

Specification:
