cutting machine

KL-1500TS 1.5m wide fully automatic cutting machine

KL-1500TS
Quantity:
Contact Now
add to cart
Description:
KL-1500TS 1.5m wide fully automatic cutting machine

1. High-speed feeding, automatic and manual free switching, convenient for operators.
2. Adjustable speed, the fastest value is 60 times/minute (taking 100mm cutting length as an example), adjustable length, 0.1mm-----99999.9mm can be set arbitrarily.
3. Spring feeding assembly increases friction, spreads the material flat, avoids material adsorption on the machine, and stacks the material more neatly (for light, thin, and soft materials), multiple sets of tension devices, always keep the material in a flat state, and avoid oblique cutting of the material.
4. Photoelectric induction automatic feeding, automatic matching of front and back, and online speed adjustment.
5. One-button switching between Chinese and English, LCD display.
6. Can cut double rows or multiple pieces at the same time, length and speed can be adjusted continuously.
7. Adopt high-precision feeding motor, microcomputer program control accuracy reaches 0.1mm, high-power cutting motor, strong power, wider application range, batch pause and delay time can be set.
8. Cutting time protection; total setting; segment and batch setting; segment pause time is adjustable.
9. LCD large screen intuitive Chinese display, simple and convenient operation, automatic accumulation and total setting, cumulative counting.
10. Adopting special mechanical structure and special thickened tool, equipped with special software control, solves the problem of uneven material cutting; achieves smooth cutting, accurate length, stable and durable.
Configuration list:
Main control panel, keypad, 128*64 LCD screen, driver, feed motor, unloader motor, cutter motor, slitting knife motor, photoelectric sensor unit, unloader speed control unit, slitting knife speed regulator, spring feed assembly, mechanical components, high-speed steel cutter, tension control assembly, hanger, limit clamp, tool kit, instruction manual, maintenance manual, warranty card, power cord.

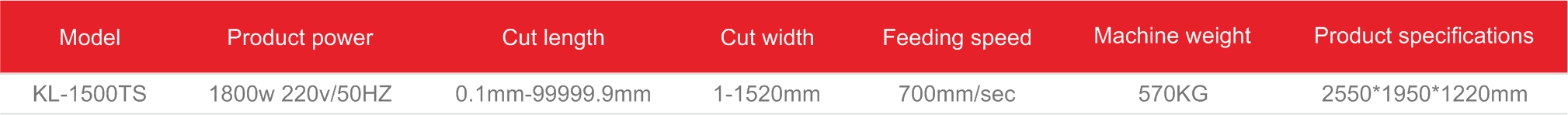

Specification:
