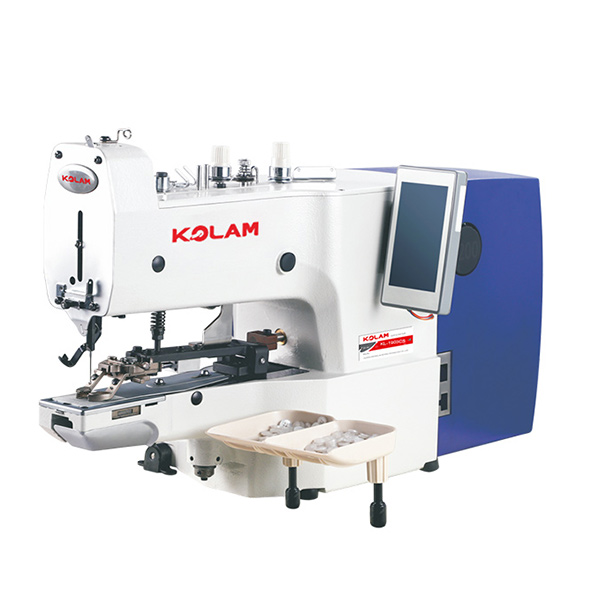

KL-1903CS Three Stepping Motor Chain-Stitch Direct Drive Button Attaching Machine
KL-1903CS
The KL-1903CS is a high-precision, direct-drive button attaching machine designed for superior efficiency and stitch quality in garment manufacturing. Its advanced drive system and user-friendly smart controls make it an ideal solution for modern production lines.
Quantity:
Description:
KL-1903CS Three Stepping Motor Chain-Stitch Direct Drive Button Attaching Machine
1.Advanced Drive System: Combines a main shaft motor with three stepping motors for unparalleled precision and smooth operation.
2.Stitch Type: Utilizes a reliable single-thread chain stitch.
3.Ultra-Short Thread Tail: Automatically trims the thread tail to approximately 3-4mm, reducing waste and manual work.
4.Secure Lock Stitching: Features adjustable lock stitches at both the start and end to effectively prevent unraveling.
5.Programmable Flexibility: Equipped with an expansion/contraction function for freely adjustable stitch length and a color touchscreen for effortless editing of diverse patterns.
6.Ample Storage: Uses NORFLASH storage media with a capacity for up to 99 pins per pattern. It comes with 18 standard patterns and can store up to 100 user-defined patterns.
2.Stitch Type: Utilizes a reliable single-thread chain stitch.
3.Ultra-Short Thread Tail: Automatically trims the thread tail to approximately 3-4mm, reducing waste and manual work.
4.Secure Lock Stitching: Features adjustable lock stitches at both the start and end to effectively prevent unraveling.
5.Programmable Flexibility: Equipped with an expansion/contraction function for freely adjustable stitch length and a color touchscreen for effortless editing of diverse patterns.
6.Ample Storage: Uses NORFLASH storage media with a capacity for up to 99 pins per pattern. It comes with 18 standard patterns and can store up to 100 user-defined patterns.
（like juki MB-1800）
Detail:
Parameter:
| Model | KL-1903CS |
| Needle | DPX17 #14/90 |
| Button diameter | 9-30 9-20(Standard) |
| Button hole spacing | 3-5 3.5(Common) |
| Button hole spacing | 2.5-6.5 |
| Height presser foot | 16.0 |
| Needle bar stroke | 45.7 |
| Automatic thread trimmer | |
| Max.speed | 3000 2600(Common) |
| Weight | 45/52 |
| Package size | 780 *360*550 |
