cylinder bed walking foot sewing machine

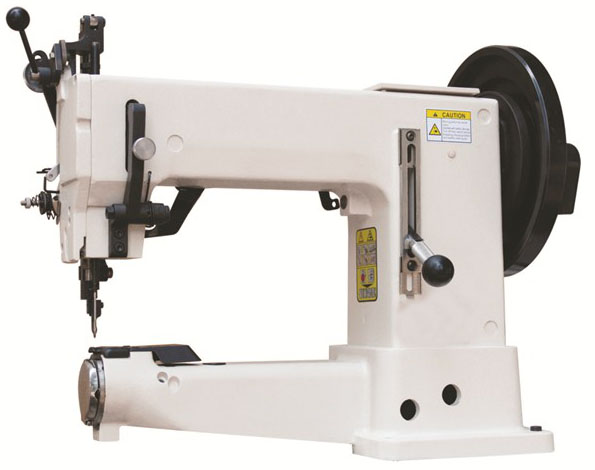

KL-205 Single needle Top and bottom feed Cylinder Bed walking foot sewing machine

KL-205
Delivery:
FOB
minimum order:
1 box
Supply Ability:
1000box / Week
Country of Origin:
YUHUAN,TAIZHOU,ZHEJIANG,CHINA.
Stock Time:
3Day
Quantity:
Contact Now
add to cart

Description

KL-205 Single needle Top and bottom feed Cylinder Bed walking foot sewing machine

  • Presser toot can be litted up to 20mm for sewing extremely thick materials
  • working space 320mm
  • suitable for large items. Large barrdel shuttle reduse mumber of thread shanges and to raise sewing efficiency.
  • for sewing extreme heavy materials such as handles svitcdses or buiesfacases basehall mittens,seat belts,chair cushions,shoes,etc

Parameters

Model

KL-205

Maximum sewing speed

800r.p.m

Stitch length

0-11mm

Take-up lever stroke

96mm

Needle bar stroke

56mm

Presser foot lifting height

Hand control

13mm

Knee control

25mm

Bed size in dia

81mm

Shuttle hook

KSP-204N

Needle

DY×3 27#

Lubrication system

Manual lubrication

Motor

55OW 4P

Height of the sewing bed

78mm

Configuration

* KL-750N servo motor

* HM550W servo motor

Stitch Sample/ Applications
