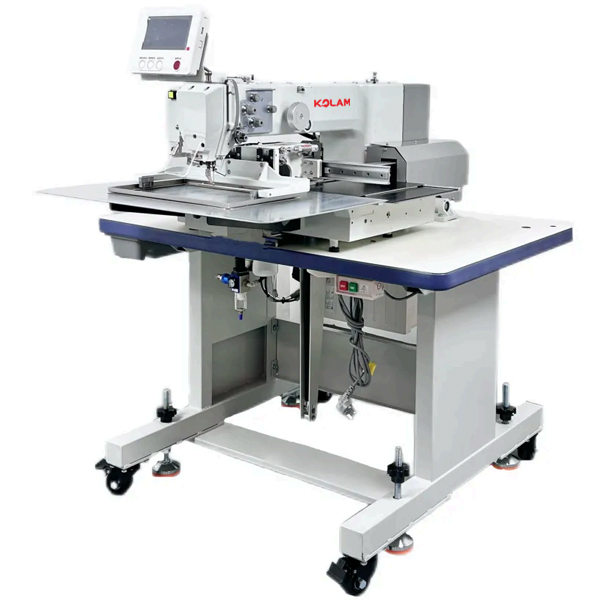

KL-2516SH-2 Small hook pattern machine
KL-2516SH-2
The KL-2516SH-2 is a specialized small-hook pattern sewing machine engineered for high-precision sewing and automated operation. Its unique narrow needle bar and presser foot assembly allow it to access and sew intricate, hard-to-reach areas with ease, making it an ideal solution for complex contours and small cylindrical items.
Quantity:
Description:
KL-2516SH-2 Small hook pattern machine

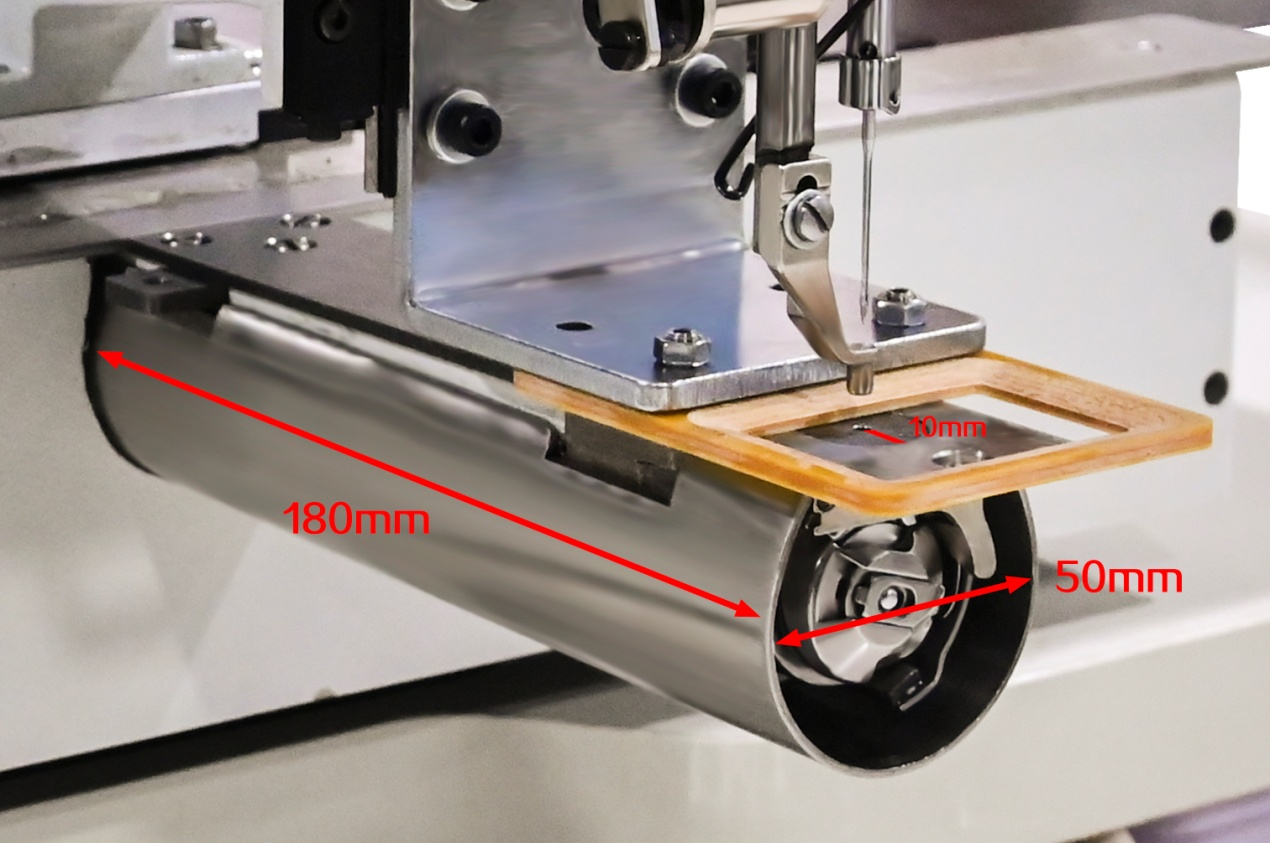

1.Narrow Sewing Head & Small Hook Design: The compact sewing head provides unparalleled access to confined spaces like cuffs, collars, and pre-assembled shoe uppers, enabling flawless stitching in intricate patterns；
2.Automatic Thread Trimming: Integrated auto thread trimming ensures a clean and efficient workflow. It cuts both top and bobbin threads instantly at the cycle's end, saving time and reducing manual labor；

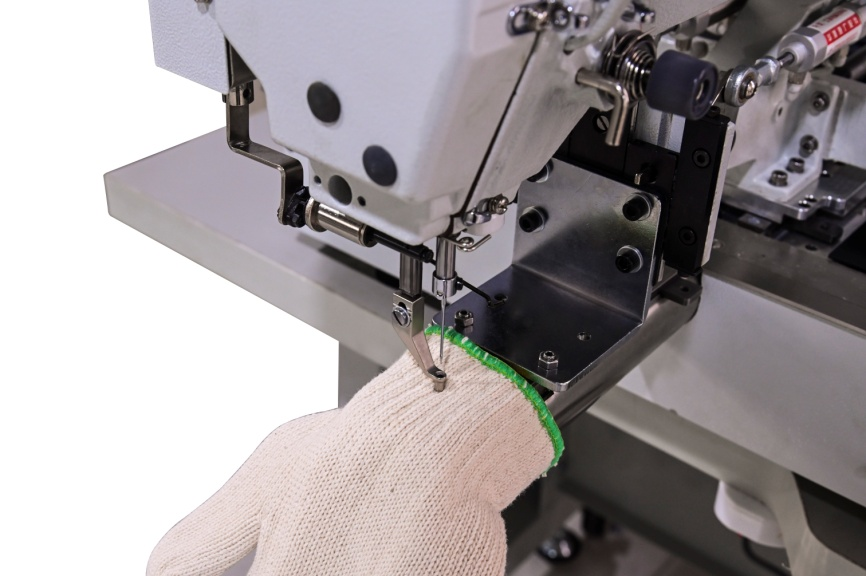

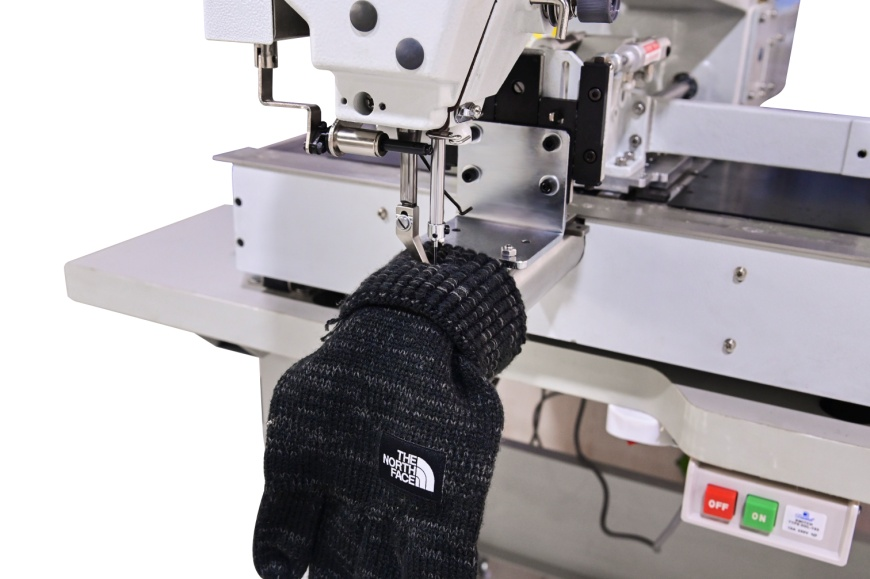

3.Versatile Sewing Applications: Excellently suited for a wide range of products including hat edges, gloves, footwear, cuffs, children's wear, and other small-sized or tubular items that are challenging to flatten；
4.Consistent & High-Quality Stitches: Delivers neat, tight, and secure seams with superior durability. The machine ensures stable and firm stitch quality, even on complex curves and multiple fabric layers；
5.User-Friendly Operation: Designed for easy setup and smooth integration into existing production lines, allowing operators to maintain high efficiency and consistent output with minimal training.
2.Automatic Thread Trimming: Integrated auto thread trimming ensures a clean and efficient workflow. It cuts both top and bobbin threads instantly at the cycle's end, saving time and reducing manual labor；
3.Versatile Sewing Applications: Excellently suited for a wide range of products including hat edges, gloves, footwear, cuffs, children's wear, and other small-sized or tubular items that are challenging to flatten；
4.Consistent & High-Quality Stitches: Delivers neat, tight, and secure seams with superior durability. The machine ensures stable and firm stitch quality, even on complex curves and multiple fabric layers；
5.User-Friendly Operation: Designed for easy setup and smooth integration into existing production lines, allowing operators to maintain high efficiency and consistent output with minimal training.
Applicable types：
Ideal For:
Garment factories, hat and glove manufacturers, footwear production, and any textile industry requiring precise pattern sewing and edge-stitching on small or curved components.
Garment factories, hat and glove manufacturers, footwear production, and any textile industry requiring precise pattern sewing and edge-stitching on small or curved components.
Parameter：
| model | KL-2516SH-2 |
| Sewing range | 250mm x 160mm |
| Stitch type | Single-needle lockstitch |
| Sewing speed | 200-2800 RPM |
| Stitch length setting | 0.1-12.7mm |
| Maximum stitch count | 8000 stitches/pattern |
| Operation panel | Touch panel |
| Maximum pattern count | 1000 patterns stored in the machine, unlimited patterns stored in an external USB flash drive |
| Sewing machine motor | AC servo motor 750W (built-in direct drive) |
| Hook | Double thread gauge hook |
| Needle | DPX17#14-25 |
| Lower thread count | Raise/lower (0-9999) |
| Inner presser foot lift | 38mm |
| Intermediate presser foot lift | 4-10mm |
| Intermediate presser foot type | Motor |
| Power supply | AC 200-220V with grounding protection |
| Compressed air pressure | 0.4-0.5MPa (maximum 0.55MPa) |
| Thread guide | Solenoid valve drive |
| Needle bar stroke | 40cm |
| Dimensions (unpacked) | Length 1200mm x Width 1060mm x Height 1270mm |
| Weight | 170kg |
