KL-3020HP-3 Triple Size Rotating Hook Pattern Machine
KL-3020HP-3
suit for automotive supplies, PET supplies, PET leashes, luggage and luggage, rigging, seatbelts, PET belts, tensioner, tie-UPS
Quantity:
Description:

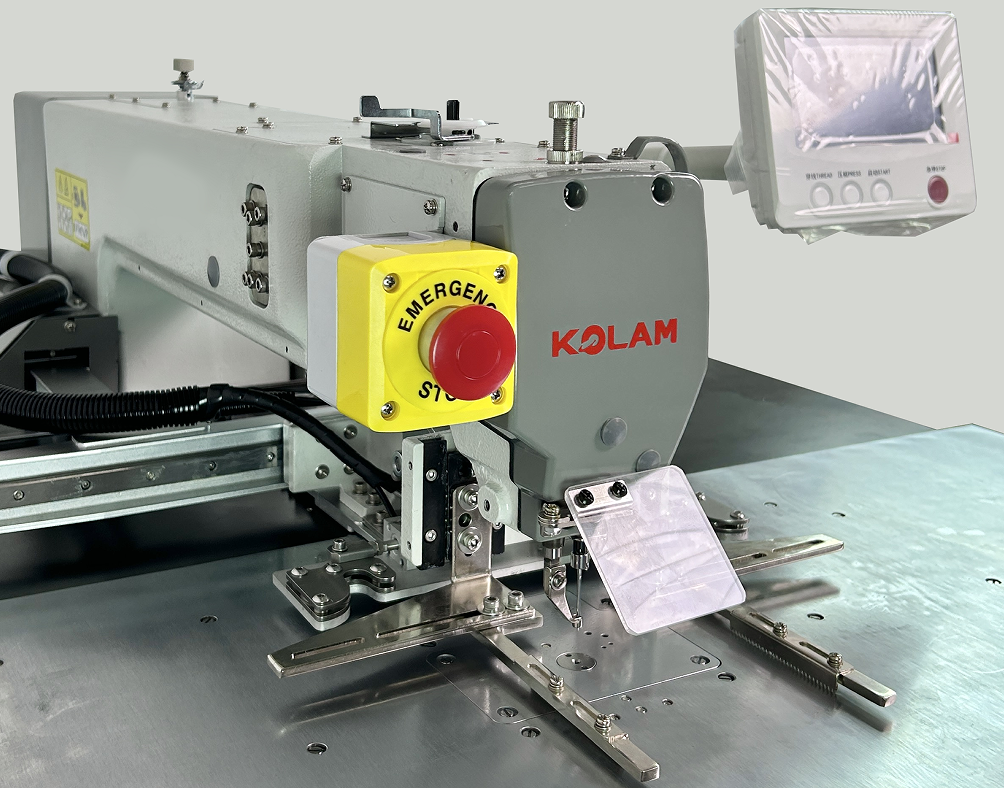

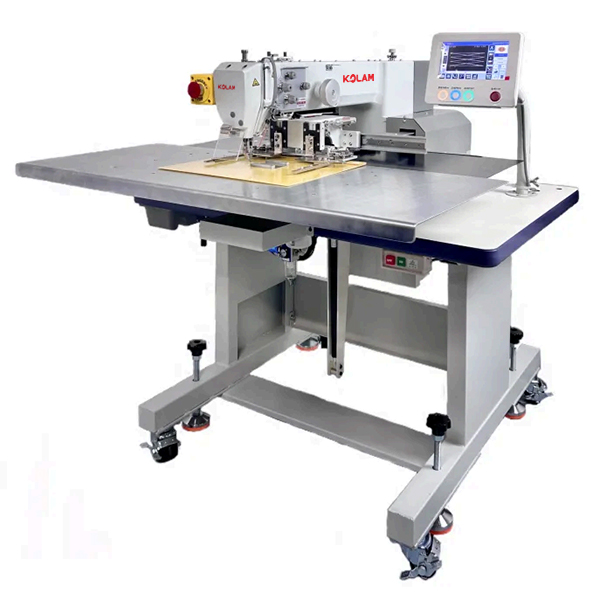

KL-3020HP-3 Triple Size Rotating Hook Pattern Machine
1.Newly developed molds for the entire machine. The extended and thickened body frame increases net weight by 23 kg compared to the old model, ensuring high-speed stability (no head wobbling) and a more aesthetically pleasing exterior.

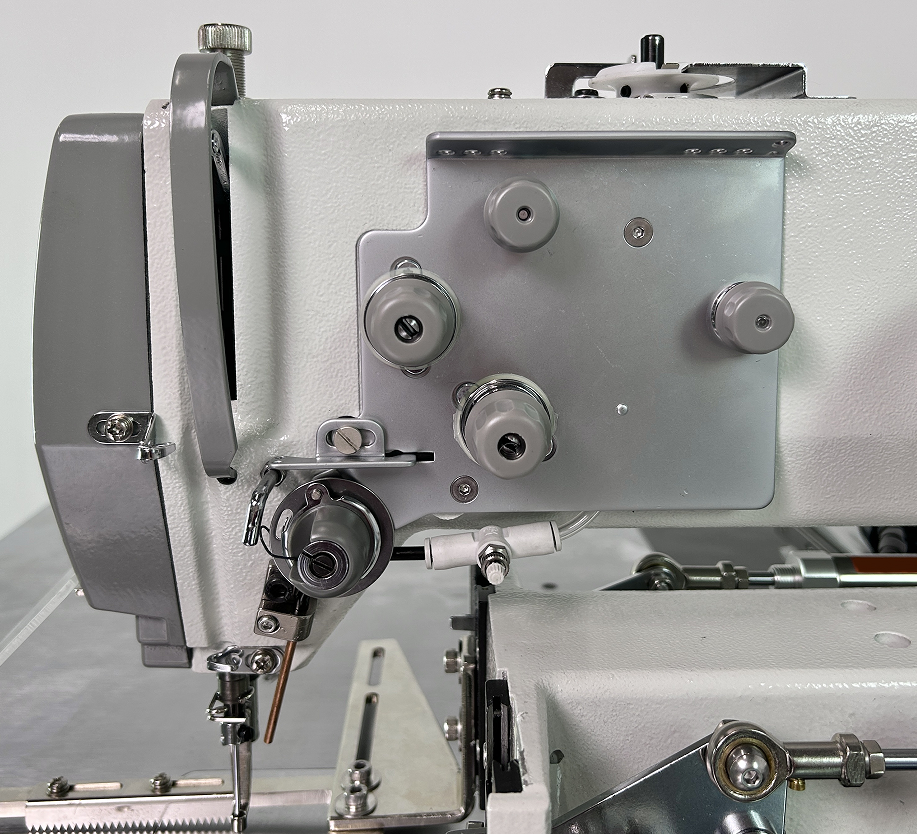

2.German"Dürkopp Adler"-style pneumatic double-clamp mechanism effectively distributes thread tension, reducing thread tangling/twisting during sewing. Smoother thread flow and neater stitches result in over 20% fewer thread breaks.

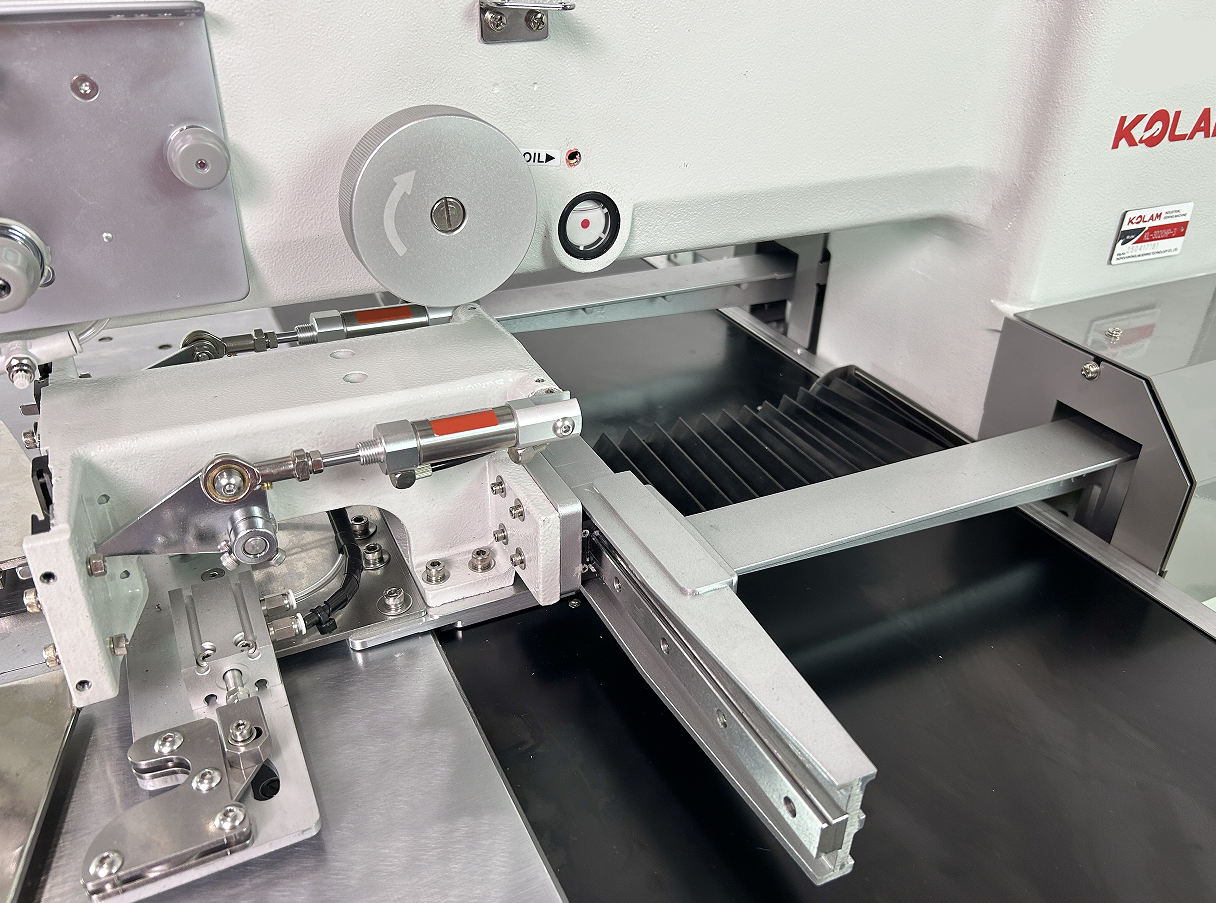

3.Upgraded from 9mm to 15mm high-precision guide rails. Y-axis now features 4 rails (previously 2), enhancing durability by 50%+ and load capacity by 80%+.
4.Y-axis drive upgraded from 1 to 2 imported belts (30cm spacing), enabling synchronized dual-power transmission for smoother operation.
5.Motor direct drive ratio improved from 1:1 to 1:2.5, boosting power by 70%. Delivers more precise high-speed sewing with 20% less vibration/noise.
6.Cloud-based IoT platform support for pattern management and wireless design transfer, simplifying workflow.
7.30% faster electronic control performance, with max speed of 3,000 RPM (3.0). Stronger penetration and enhanced stability.
8.Pre-loaded standard patterns eliminate manual digitizing—user-friendly interface allows mastery within 5 minutes.
9.Anti-bobbin idling function prevents thread jams caused by empty bobbin rotation, ensuring consistent stitching.
10.Pneumatic flat-knife thread trimming & loose thread release, paired with electronic presser foot for tangle-free thread pickup and no bird’s nesting on the backside. Compatible with threads from 200D to 1200D.
11.Quick mold replacement and unified machine standards enable wireless CAD pattern transfer.
2.German"Dürkopp Adler"-style pneumatic double-clamp mechanism effectively distributes thread tension, reducing thread tangling/twisting during sewing. Smoother thread flow and neater stitches result in over 20% fewer thread breaks.
3.Upgraded from 9mm to 15mm high-precision guide rails. Y-axis now features 4 rails (previously 2), enhancing durability by 50%+ and load capacity by 80%+.
4.Y-axis drive upgraded from 1 to 2 imported belts (30cm spacing), enabling synchronized dual-power transmission for smoother operation.
5.Motor direct drive ratio improved from 1:1 to 1:2.5, boosting power by 70%. Delivers more precise high-speed sewing with 20% less vibration/noise.
6.Cloud-based IoT platform support for pattern management and wireless design transfer, simplifying workflow.
7.30% faster electronic control performance, with max speed of 3,000 RPM (3.0). Stronger penetration and enhanced stability.
8.Pre-loaded standard patterns eliminate manual digitizing—user-friendly interface allows mastery within 5 minutes.
9.Anti-bobbin idling function prevents thread jams caused by empty bobbin rotation, ensuring consistent stitching.
10.Pneumatic flat-knife thread trimming & loose thread release, paired with electronic presser foot for tangle-free thread pickup and no bird’s nesting on the backside. Compatible with threads from 200D to 1200D.
11.Quick mold replacement and unified machine standards enable wireless CAD pattern transfer.

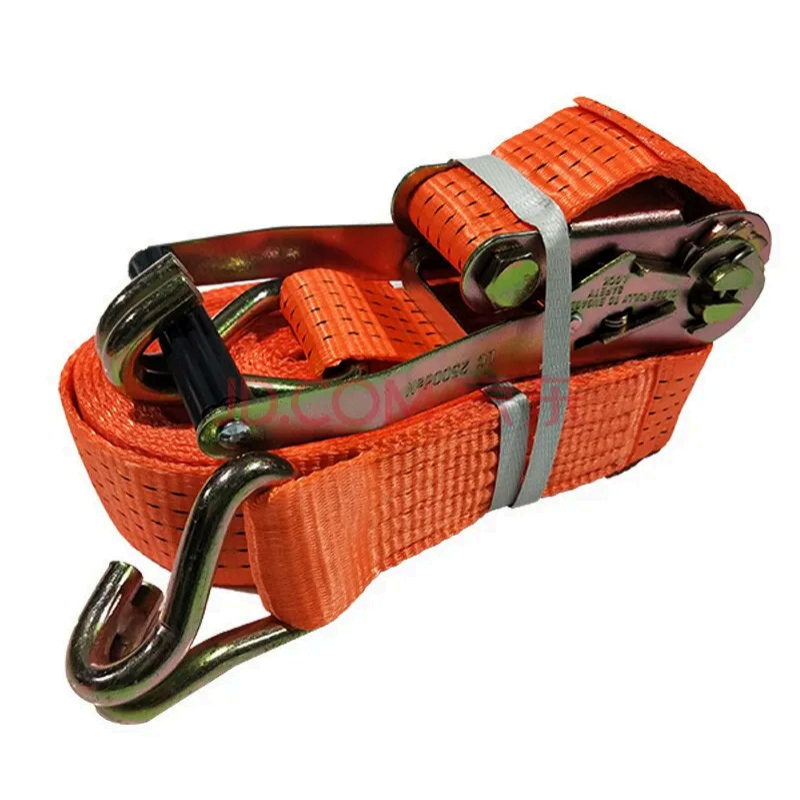

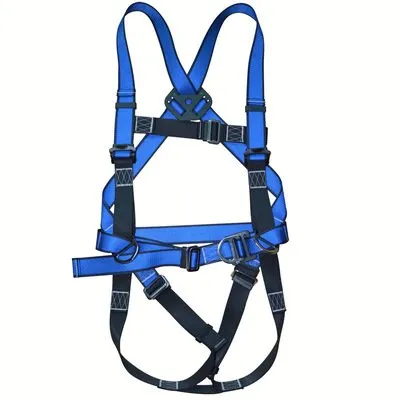

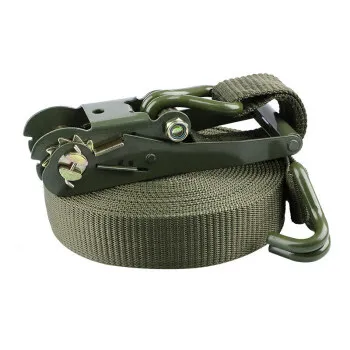

（suit for automotive supplies, PET supplies, PET leashes, luggage and luggage, rigging, seatbelts, PET belts, tensioner, tie-UPS）
Detial:
Application:

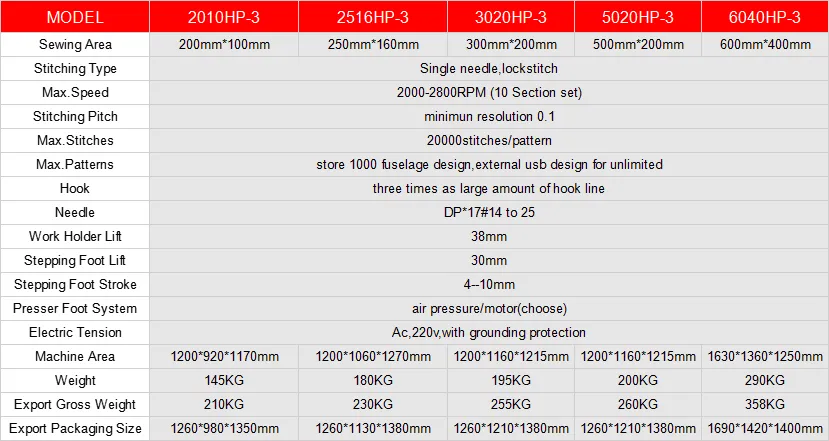

Specification:
Triple Size Rotating Hook: 2010HP-3/2516HP-3/5020HP-3/6040HP-3 sewing range models to choose .
Video:
