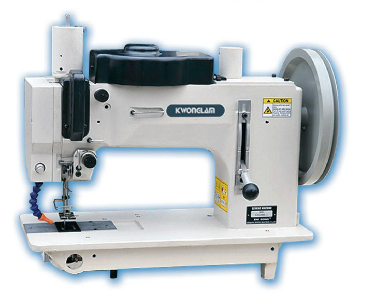

KL-366-32 Type Extra Heavy-weight Material Zigzag Sewing Machine

KL-366-32 Type Extra Heavy-weight Material Zigzag Sewing Machine

single needle lockstitch zigzag sewing machine used for straight stitch operations in the production of sails, tents and tarpaulins as well as for leather processing.

Parameters

Model

KL-366-32

Maximum speed of revolution

800r.m.p.

Maximum stitch

10mm(0-10)

Maximum swing of zigzag sewing

14mm(0-14)

Zigzag sewing mode

Two points, three points, four points

Needle bar stroke

50.8mm

Take-up lever stroke

106.8mm

Needle

DY×3 27#

Shuttle hook

Large semi rotary shuttle hook

Presser foot lifting height

20mm

Lubrication system

Manual lubrication

Working space

320×185mm

Motor

550W electronic speed control motor

Configuration

* KL-750N servo motor

* HM550W servo motor

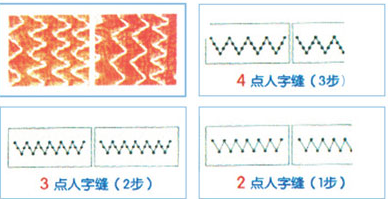

Stitch Sample/ Applications
