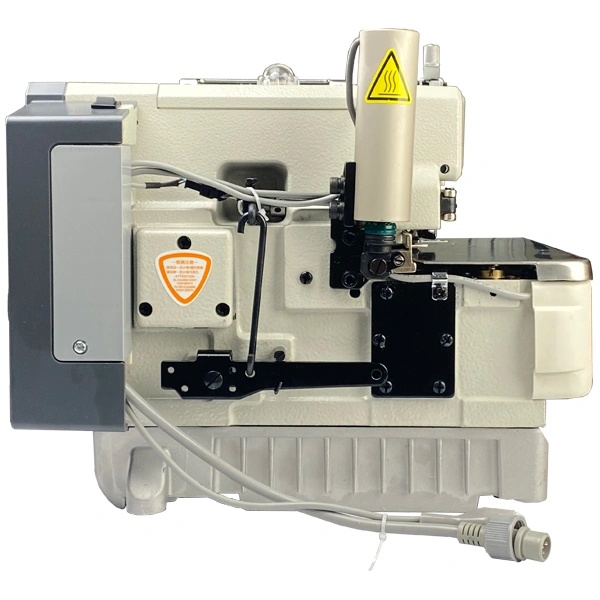

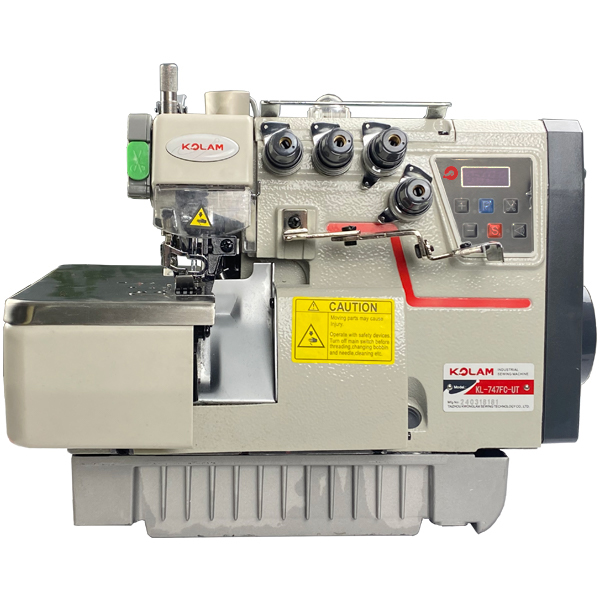

KL-747FC/UT Integrated Direct Drive 4 Thread Overlock Sewing Machine With Auto Trimmer
KL-747FC/UT
Suitable for overlocking and overedging workpieces of light and medium weight materials
Quantity:
Description:
KL-747FC/UT Integrated Direct Drive 4 Thread Overlock Sewing Machine With Auto Trimmer
1. Direct-drive servo motor: The overlock sewing machine adopts modular direct-drive servo motor, which is more flexible and diverse;
2. Electric thread trimming device: Adding electromagnets to the original machine to realize the automatic thread trimming function, which is more convenient and saves manpower and time;
2. Electric thread trimming device: Adding electromagnets to the original machine to realize the automatic thread trimming function, which is more convenient and saves manpower and time;
3. New piece counting function: reduce labor costs;
4. Side cutting (with electric eye device): This machine has an electric eye device, which uses the electric eye to detect the edge of the fabric, and the control box adjusts the knob to control the cutter action when cutting the thread to avoid thread waste; the delay time of the light eye is improved from the original 100 milliseconds to 10 milliseconds, with an error of about two needles, and the response is more sensitive;
5. Semi-automatic back sewing system: Wrap the thread ends together in the suture to prevent the thread ends from falling off at the seam, and meet the high-quality sewing requirements;
6. Side belt rack: used for belt feeding, located on the right side of the workbench;
Application:
Suitable for overlocking and overedging workpieces of light and medium weight materials. Auto lubrication and excellent performance. Low sewing tension, neat & beautiful stitches! Suitable for overlocking and overedging workpieces of light and medium weight materials. With low sewing tension, neat and beautiful stitches are achieved even running at high speed;
Specification:
| Model | KL-747 |
| Head Number | Single |
| Power(W) | 250W/400W |
| Max.Sewing Speed | 6500rmp/min |
| Max.Sewing Thickness | 6mm |
| Over-lock Stitch | Four Wire |
| Net Weight | 28KG |
| Gross Weight | 30KG |
| Overrall Dimensions | 465*325*470mm |
