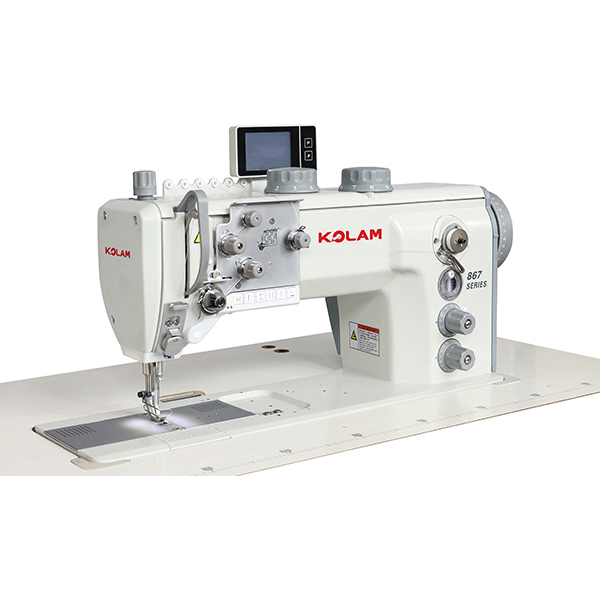

KL-867-121232 Single Needle Compound Feed Lockstitch With Auto Thread Trimmer
KL-867-121232
Quantity:
KL-867-121232 Single Needle Compound Feed Lockstitch With Auto Thread Trimmer
Discription:
1.Durkopp Adler 867 type compound feed sewing machine;
2.Imported Italian Hook;
3.Automatic back stitch,automatic press foot lifting,antomatic thread trimming;
4.The powerful compound feeding system including feed dog feeding,needle feeding and alternating presser foot feeding,guarantees feeding material freely without shift;
5.The lifting height of presser foot can reach 20mm which is convenient to sew thick material;
6.Max alternation of presser foot reach 9mm which can sew differential thick materials;
7.Large working space (335mm width and 125mm height) which would be easier for large area materials;
8.Increased productivity due to the 32 big hook for extra 70% bobbin capacity;
Scope of sewing:
The Max. stitch length is 9mm( “K” is 12mm)
The thickest thread is Nm10/3( “K” is N8/3)
The Max. sewing speed is 3000 R.P.M(“K” is 1500 R.P.M)
The thickest thread is Nm10/3( “K” is N8/3)
The Max. sewing speed is 3000 R.P.M(“K” is 1500 R.P.M)

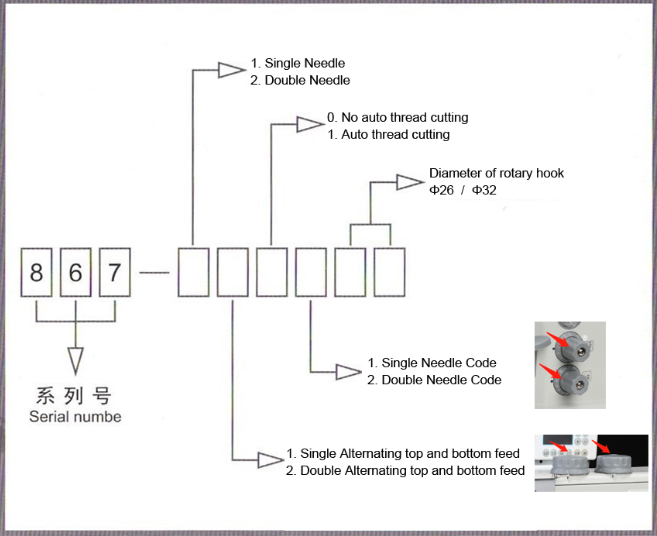

Code diagram:

Please choose series according to code diagram.
Specification:

Video:
