KL-900/KL-1200/KL-1400/KL-1600/KL-1800/KL-2000 Fusing Machine

KL-900/KL-1200/KL-1400/KL-1600/KL-1800/KL-2000
Double roll double pressure,extesior lower belt
Quantity:
Contact Now
add to cart
Description:
1.Double roll and double press fusing machine,especially suitable for the bonding of ultra thin material and the bonding of reflective strips,without super bubbles and air holes;
2.The imported belt is lengthened to facilitate the operation of clothing fabric placement;
3.Q2S type is lextesior lower belt,Q2 for the double roll double pressure;
Detail:
1.This series of products adopts 4-stage heating system controlled by microcomputer controller to achieve ideal temperature effect;sectional pressure control,simple operation,high flexibility,strong unversality,high operation reliability,and more convenient maintenance;

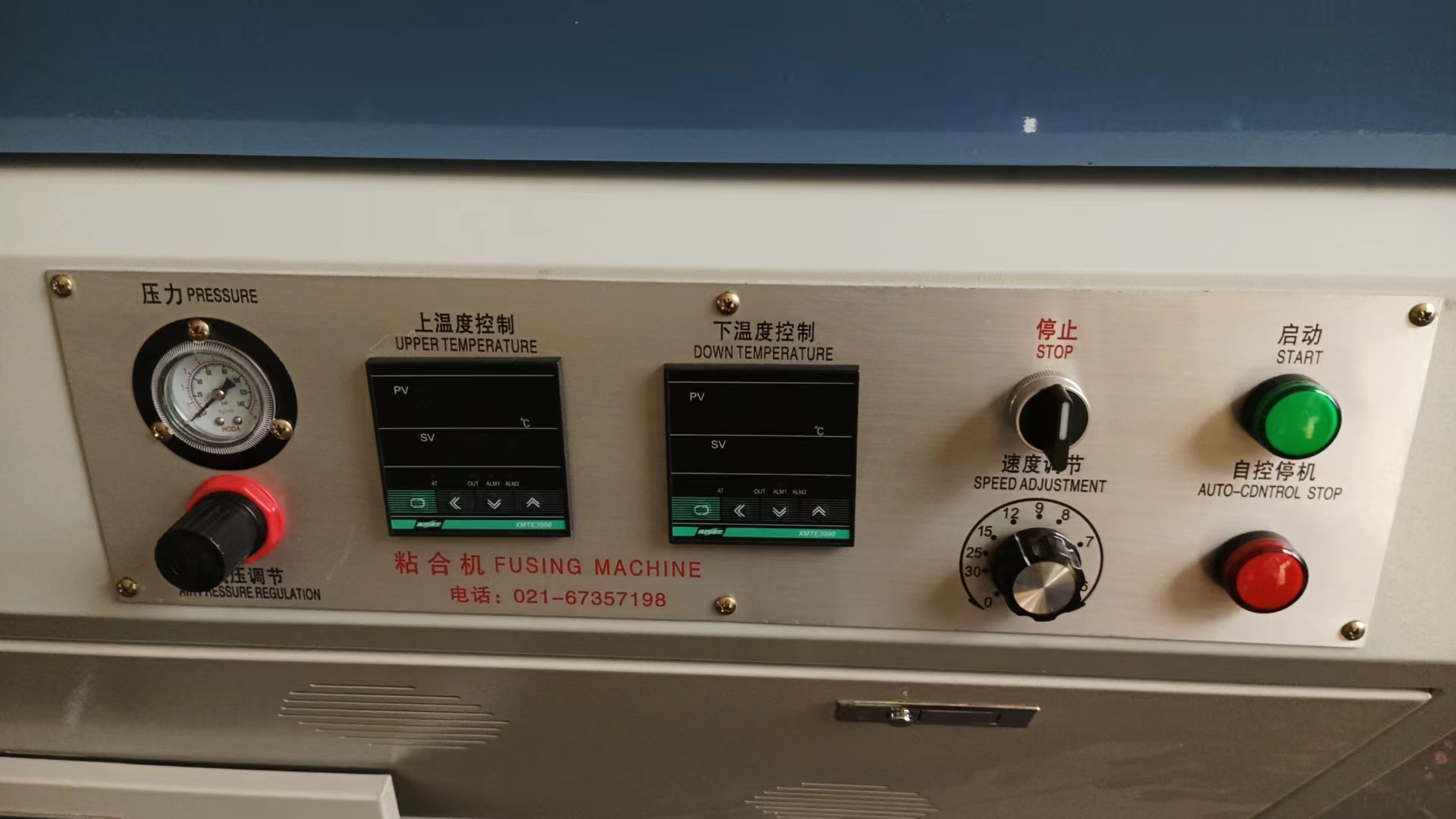

 CNC operation panel
2.The discharging mode adopts the detachable upper paddle,and the lower paddle device makes the cloth naturally peeled off the belt at the outlet,without wrinkles;
Continous operation

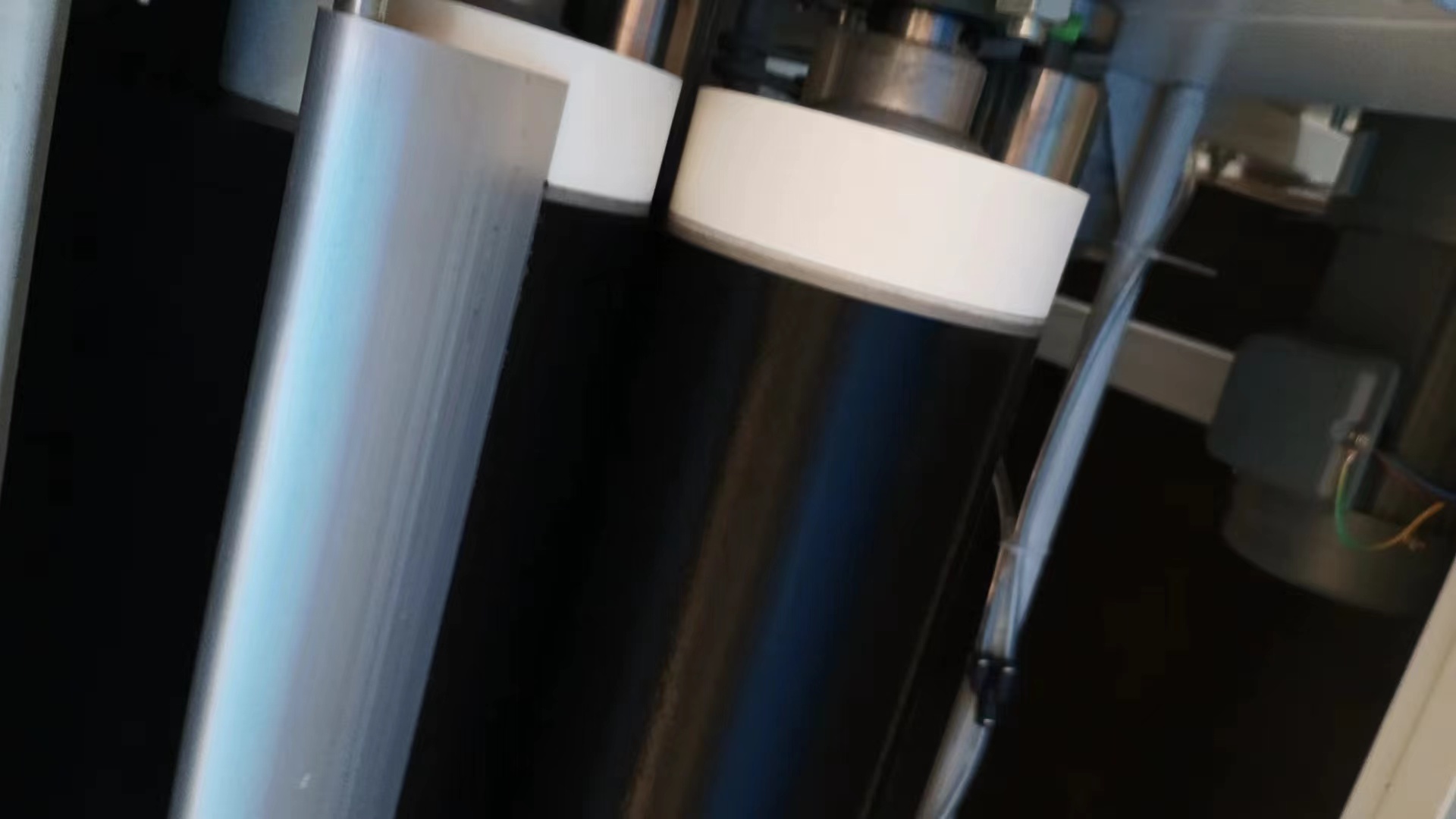

3.The pressure cylinder is made of silica gel coated cylinder to ensure the pressure is stable and evenly distributed at every point on the cylinder to ensure the best bonding effect;

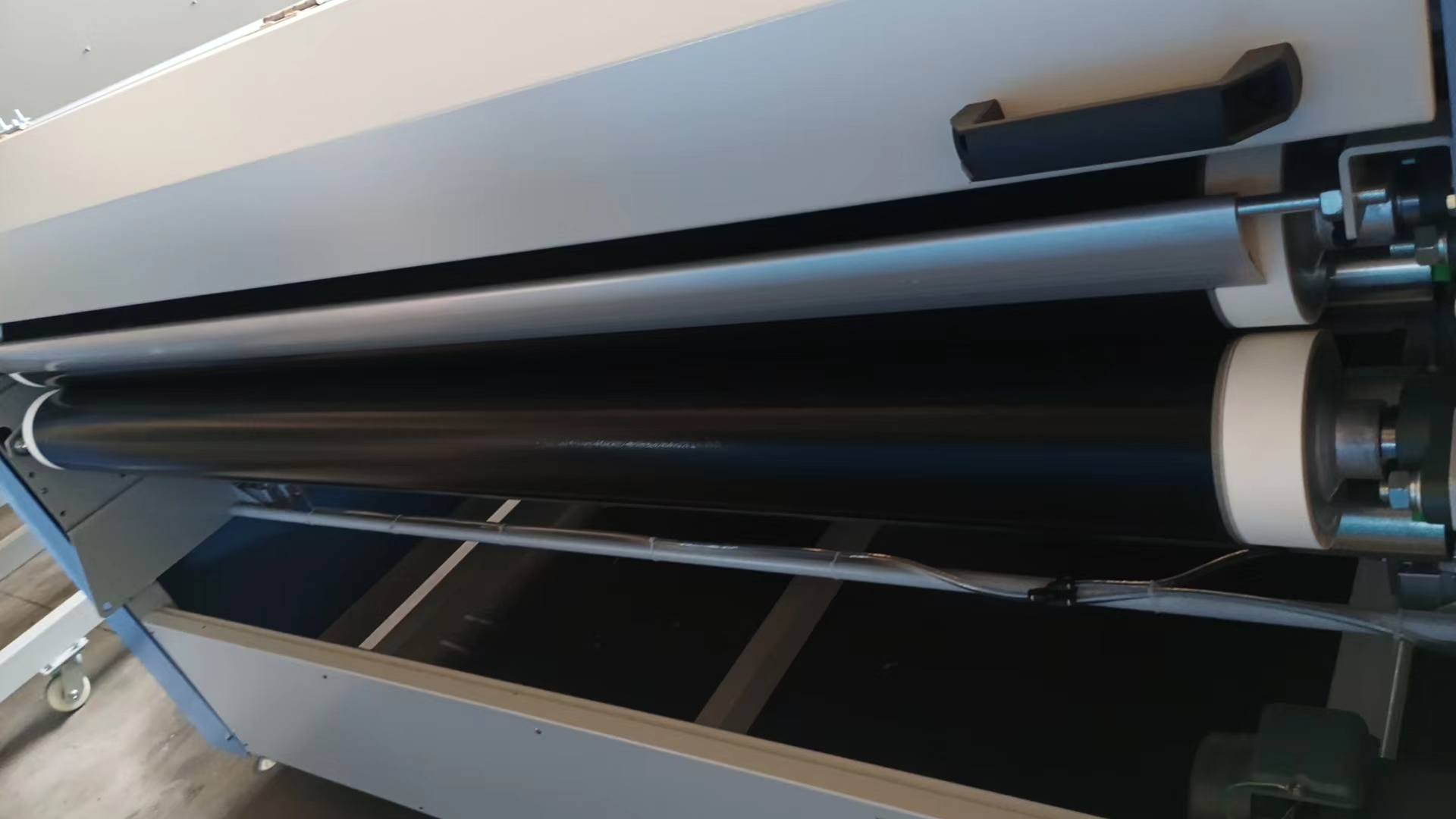

Double roll press
4.It adopts durable high tempera import belt with good anti sticking performance,greatly improved strength,long service time,good anti-static effect,good anti deviation,smooth and delicate surface,better processing of ultra-thin adhesive linging,and longer belt is more suitable for large-scale operation;

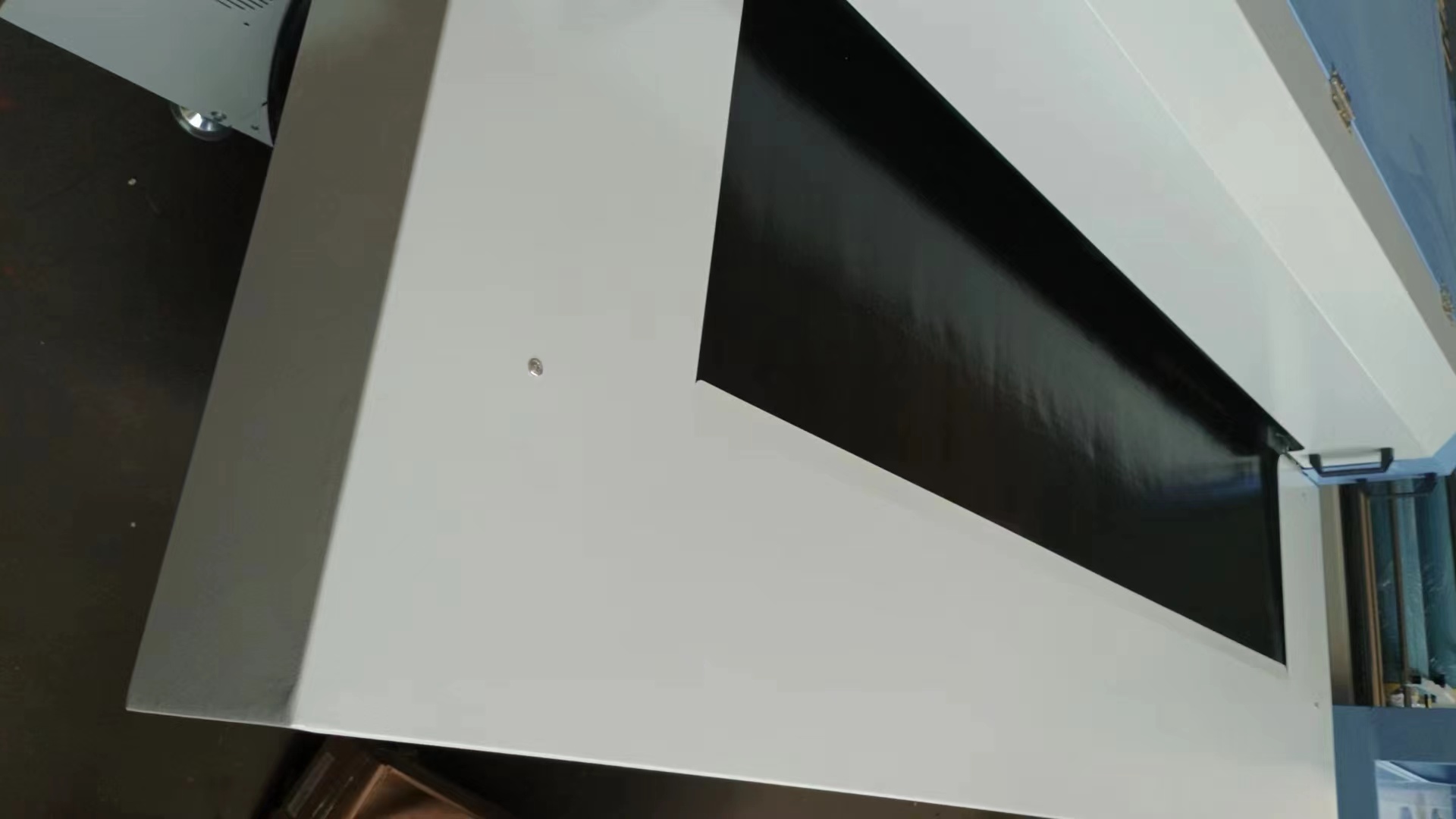

Inlet belt extension
5.This series of products adopts automatic induction device and screw component correction device to make the upper and lower belts more stable without deviation,so as to ensure that that the cloth will not wrinkle;
Automatic deviation correction
Application:
NHG series machine can be widely used in various non-flammable agents contain fabric collar,chest,cuffs,placket,waist top fabric and adhesive products smooth stiff and resistant to washing,easy trend,the dragon it applicable to all resins collar lining,non-woven adhesive liner;

            Adhesive lining                          Transfer trademark                        Transfer printing                                The collar,the cuff,
                                                                                                                                                                                       the skirt of the shirt
Specification:
ModelKL-1400KL-1600KL-1800
Pressurization modePneumatic double roll pressure inlet belt extension
Max.bonding width1400mm1600mm1800mm
Operating speed of conveyer belt0-10m/min
Bonding pressure0-0.4MPa
Bonding temperature≤190℃
Upper belt width*length1400*5450mm1600*5450mm1800*5450mm
Botton belt width*length1400*5520mm1600*5520mm1800*5520mm
Motor power of convery belt400W
Heating area2500mm
Electric heating power31.2kW37.9kW40.8kW
Compressed air pressure0.7MPa
Power supply380V/3PH/50Hz
G.W.1000kg1100kg1200kg
Out line dimension(L*W*H)4500*2300*1513mm
