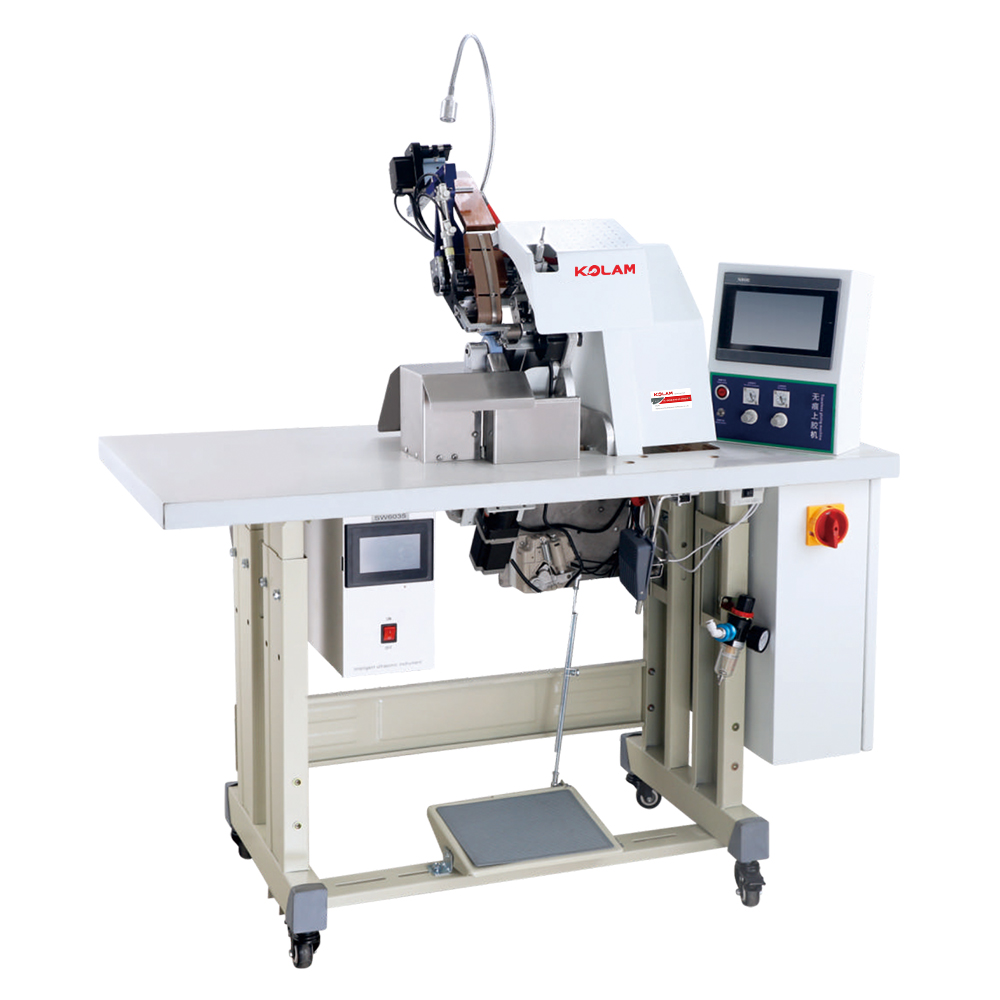

KL-G10-BG Non marking ultrasonic glue and tooth exposure integrated machine

KL-G10-BG
Quantity:
Contact Now
add to cart
Description:
KL-G10-BG Non marking ultrasonic glue and tooth exposure integrated  machine
1.The speed of the upper and lower rubber and lower rubber wheels can be independently adjusted.
2.The heating tank can independently adjust the temperature（preheating tank）
3.The adhesive groove has two types:movable and fixed,which can be selected according to the processed product.
4.Blowing mode,with two types:internal blowing and external blowing,can be selected according to the processed product.
5.The ultrasonic upper and lower mold trimming parts can be connected as a whole and rotate according to the outer contour trajectory of the lower wheel of the feeding part to achieve two processes of gluing and glue exposure.
6.Preheating and heating system.
7.Adjustable handle to adjust the height of the upper and lower wheels.
8.Speed ratio between upper and lower wheels,ultrasonic upper and lower mold motor,and conveyor motor with precise and adjustable speed ratio.
Specification:
Voltage220v 50/60Hz
Power1500w
Compressed air0.4-0.8MPa
Maximum temperature350℃
Upper wheel width22mm
Lower wheel width22mm
Ultrasonic operating frequency35kHz
Working diameter30mm
Welding speed30ft/min
Detail:
