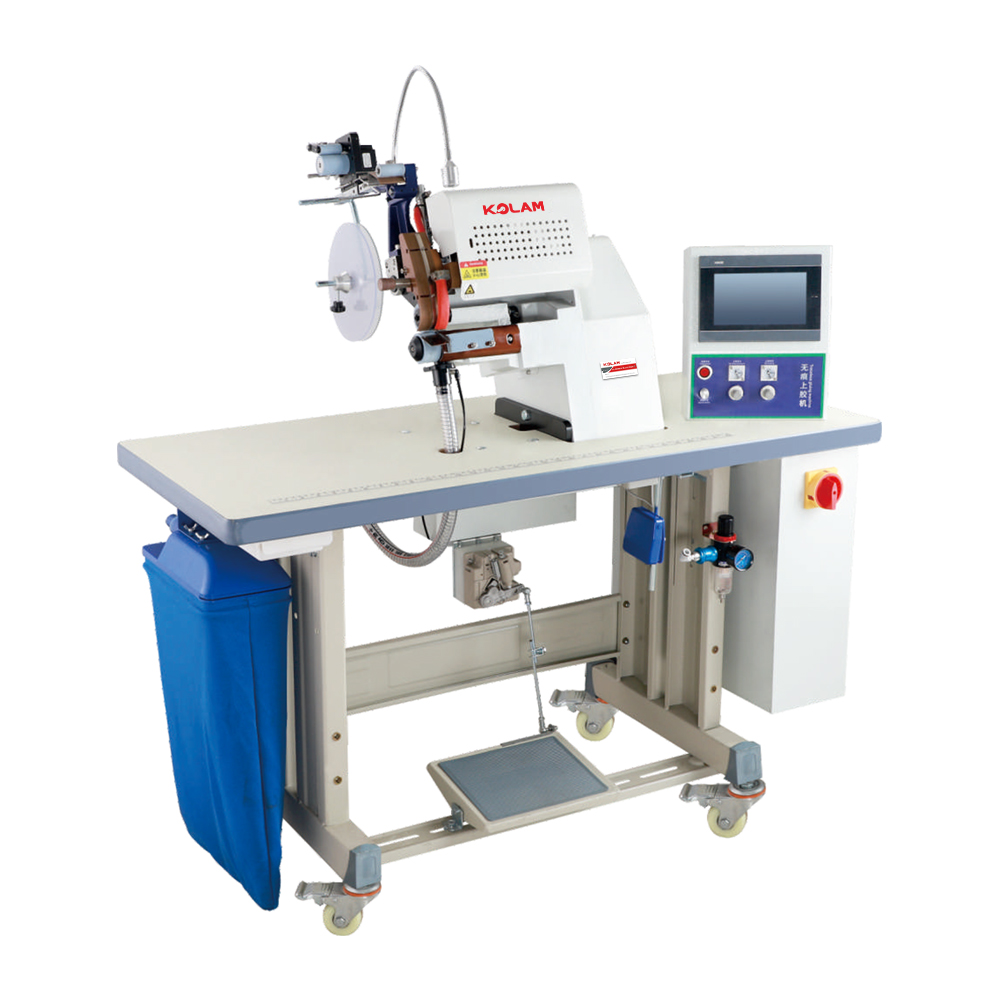

KL-G10-SJ glue machine

KL-G10-SJ
Quantity:
Contact Now
add to cart
Description：
KL-G10-SJ glue machine
1.Speeds of the upper and lower rubber rollers are independently adjustable.
2.Heating channel temperature is independently adjustable (pre-heating channel).
3.Glue tank options include movable and fixed types, selectable based on the product being processed.
4.Air-blowing modes include internal and external options, selectable based on the product being processed.
5.Roller-based mechanism suitable for applying tape to both straight sections and curved areas.
6.Pre-heating system.
7.Adjustable handle for setting the height of the upper and lower rollers.
8.Precise, adjustable speed ratios for the upper/lower rollers and the tape-feeding motor.
Detail:
Specification:
Speed0-7cm/S
Nozzle temperature0-480°C
Compressed air0.5MP
Power supply220V-240VAC
Roller widthStandard 3.0
Power 1860W
Cutter speed0-3000rpm
Heating tank width
Standard 30MM
Net weight90KG
Total weight(with wooden case)122KG
Machine dimension1210*560*1180
Export wooden case dimension1270*640*1430
