KL2416-900A-867 AI Smart Robotic Arm

KL2416-900A-867
Quantity:
Contact Now
add to cart
Description:

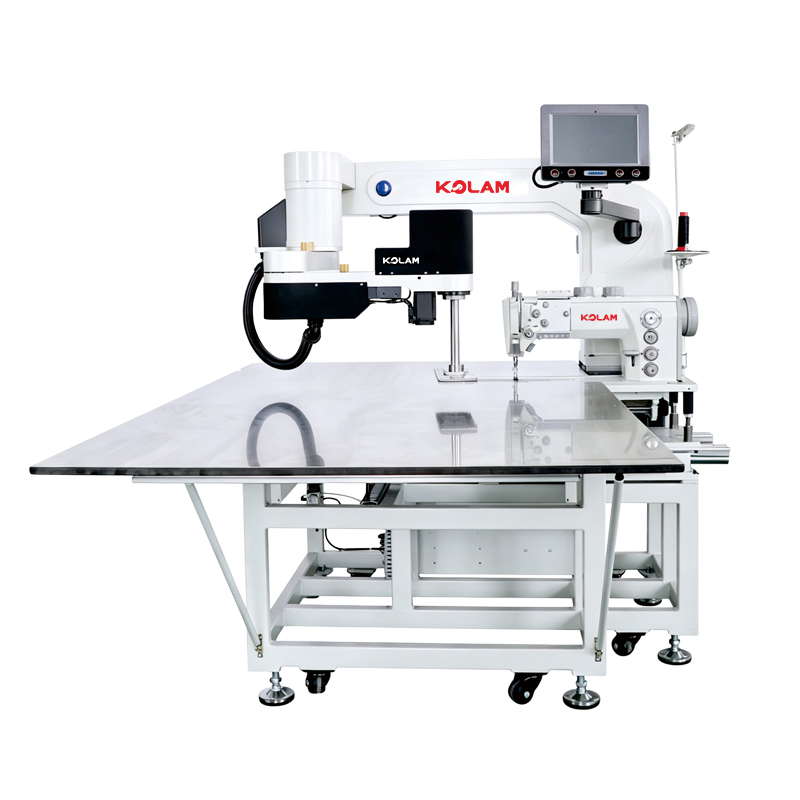

KL2416-900A-867 AI Smart Robotic Arm
1. The self-developed SCARA sewing unit control system features an operation method and parameter adjustment process identical to those of mainstream template sewing machines on the market, significantly lowering the learning threshold for such equipment and enhancing user-friendliness.
2. Designed with a modular structure, it is compatible with the vast majority of sewing equipment available. Without altering the main structure, switching between different compatible sewing devices can be achieved quickly, enabling multi-purpose use of a single unit and reducing customer operational costs.
3. When used with needle feed and triple synchronous sewing equipment, the perfect synchronization between the fabric and mechanical feed results in high-quality stitching. The feeding method of this sewing process closely mimics manual sewing, ensuring superior stitch quality.
4. The electronic control system is equipped with lot functionality, allowing for remote updates, error diagnosis, and data transmission. It also includes interfaces to send sewing-related data to the customer's MES system.
Specification:
ModelKL2416-900A-867
Machine size1510mm*1200mm*1538mm
Arm length450mm, 450mm
Lifting height50mm
Max sewing speed2500RPM
Max stitch length12mm
Max sewing limit1100mm
Minimum sewing limit>40mm
Max template weightness5kg
Position accuracy0.01mm
Working voltage220V
Max pattern storage999
