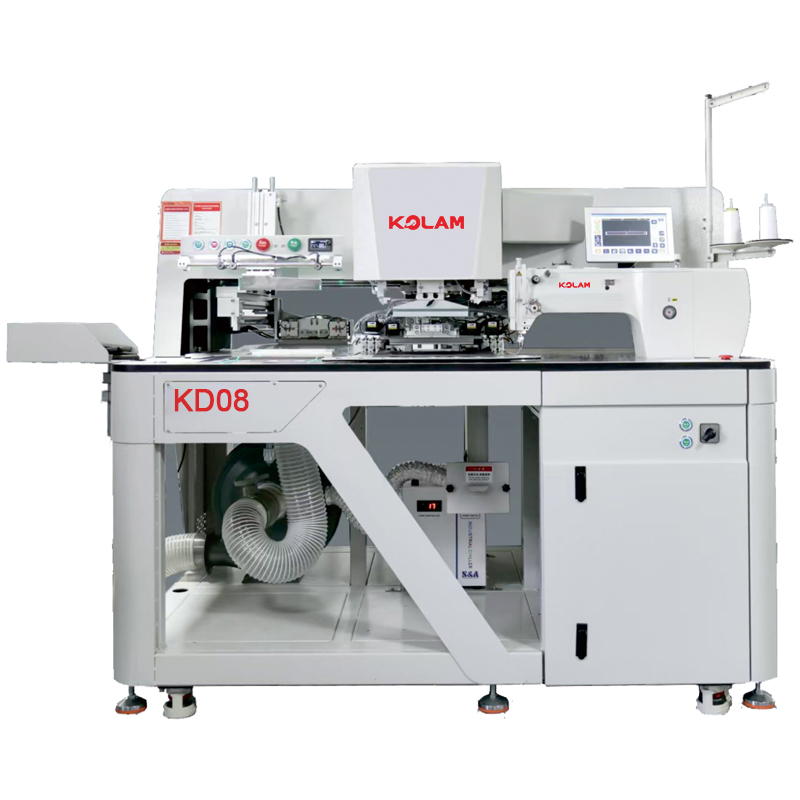

KL-KD08-4 Fully Automatic Laser Pocket Welting Machine
KL-KD08-4
Quantity:
Description:
KL-KD08-4 Fully Automatic Laser Pocket Welting Machine
1. Upgrade the pocket lip structure: Replace the left and right sliding cylinder motion mechanism with a cylinder lifting mechanism, which is safer and more aesthetically pleasing than the original design.
2. Upgrade the laser reflector: Replace the original 5-stage reflector with a 2-stage reflector, increasing the laser power by 20% compared to the original.
3. Upgrade material feeding sight issue: The folding blade component is retracted backward by 55mm, resulting in a better material feeding sight compared to the previous generation model.
4. Upgrading the circular board structure: Solving the problem of large pocket fabric being folded.
5. Top material structure: Cooperate to solve the problem of large pocket fabric folding.
6. Appearance upgrade: More concise and elegant than the original model, with an open rack structure for easier maintenance, and better heat dissipation of the machine's fan and laserwater tank.
7. Upgrading the connection method of the machine head: The original soft connection has been changed to a hard connection, making the machine more stable, with less shaking and more beautiful stitching.
8. Upgrade one-click mold changing structure and no need to change jigs: The width and length of the pocket welting can be adjusted with one click in the computer board parameter settings.
Detail:
Specification:
| Head Sewing Speed | 3000rpm/min |
| Sewing Head | Programmable pattern machine |
| Machine Needle | DPx17 (9#、10#、11#、12#、14#、16#、18#) |
| Sewing Stitch Programming | By screen |
| Line Programming Storage Capacity | Up to 999 patterns can be stored |
| Stitch Distance | 1.0mm-3.5mm |
| Pressure Foot Rising Height | 60mm-80mm |
| Fabric Cutting | Cutting with 120W laser head |
| Laser power | 120W |
| Feeding Drive Mode | Servo motor drive 750W |
| Power Supply | AC220V/50Hz |
| Air Pressure And Air Pressure Consumption | 0.5Mpa (5kg/cm）、22dm/min |
| Package Size(m) | 1.93m*1.43m*1.68m |
| Weight | 950KG |
| Thread broken sensor | With |
