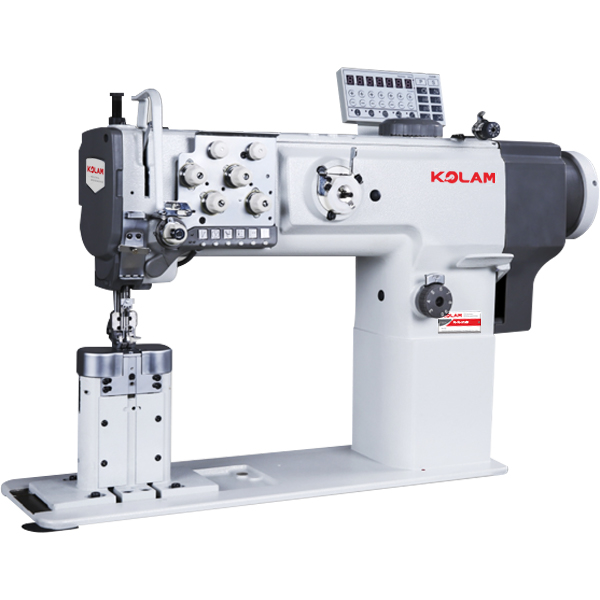

KL-1780B-7-14 Intensive direct drive,post bed,double needle compound feed sewing machine

KL-1780B-7-14

Topstitch process of the soft-furniture,car seats and automotive interior.

Quantity:

Contact Now

add to cart

Description:

KL-1780B-7-14 Intensive direct drive,post bed,double needle compound feed sewing machine

1.Internal diract drive servo motor and pneumatic controllercomponents,it is convenient to install and maintain.

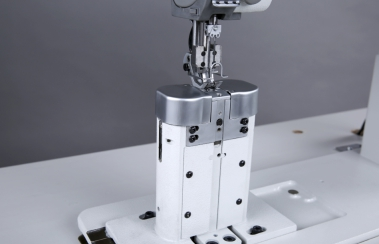

2. Extra large operation spaCe and slim post bed facilitate the handing ofthree dimension material and high-quality decorative topstitch seams.

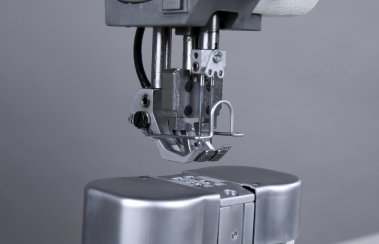

3.It's equipped with auto back tacking,pneumatlc presser footlftng,integrated LEDlight,free handle bobbin winder,up and down needlepositioning.pneumatic halving outer foot,balance and compensateinner foot and other practicalfunctions,make the daily sewing moeefficient.
4.It can adjust instantaneouslyinternal and external presser footalternating amount by shortcut button.
5.Standard 8mm needle gauge set,tape device parts can be chosen.

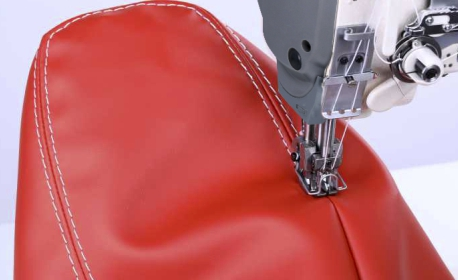

Three dimension material topstitch process for sofa and car seat.

Product Advantages:

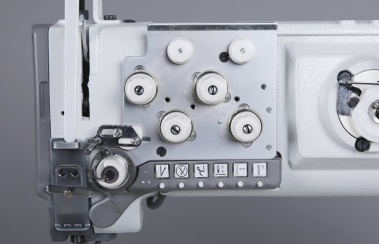

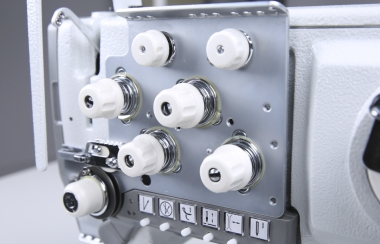

Sixkeyboard shortcuts

Extralarge operation space

DL function

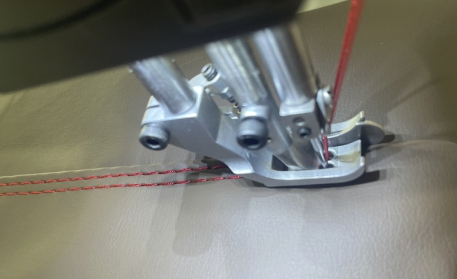

Pneumatic presser foot lifting

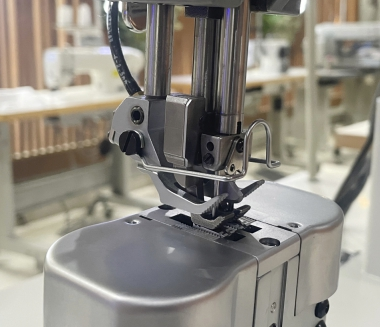

Pneumatic clamptool subassembly

Application:

Specification:

Model	KL-1780B-7-14
Feeding system	Alternatingpresser foot,feed dogand needle feeding
Maxsewingspeed	20005.p.m.
High of the post bed	160mm
Shuttediameter	φ26mm
Applied needle	DP×17#18-#23
Thread size	Maximum thread9strands nylon
Maxstitch length	9mm
Maxalternatingpresserfoot	6.5mm
Maxpresserfootlitingheight	16mm
Auto trimming	√
Auto backtacking	√
Presser foot lifting heightby air	√
DLfunction	√
operation space	335×260mm
