sewing machine with automatic backstitch

KL-20618-01-4QD/KL-20618-02-4QD Single/Double Needle Compound Feed Lockstitch With Automatic Thread Trimmer(Pneumatic type)

KL-20618-01-4QD/KL-20618-02-4QD
It is especially availbale institching car seat cushions,safety belts,safety air bags,tents,parachutes,etc.Suitable for sewing bags,sofa,furniture,sport articles and tents etc
Quantity:
Contact Now
add to cart
Description:

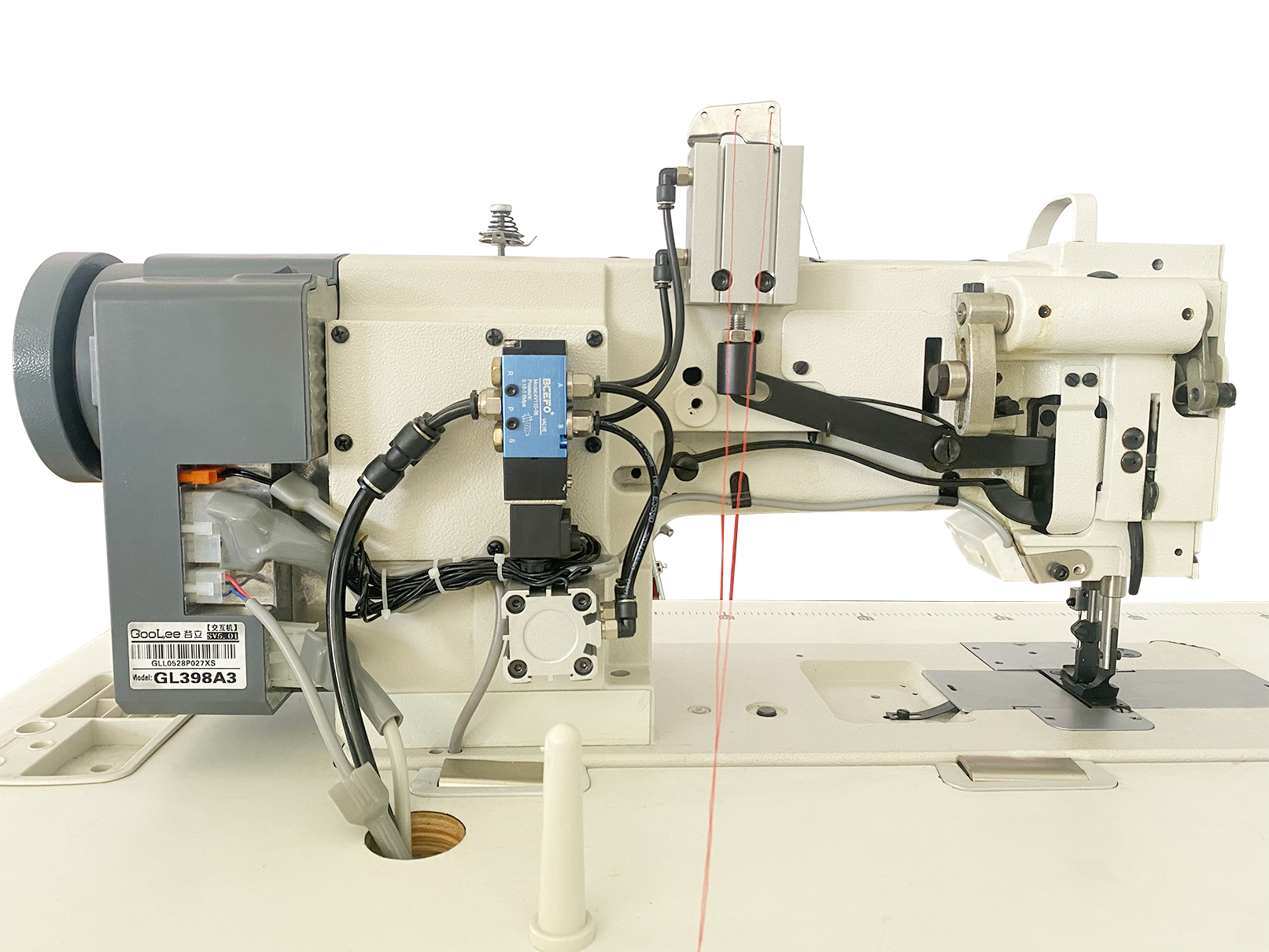

KL-20618-01-4QD/KL-20618-02-4QD Single/Double Needle Compound Feed Lockstitch back display

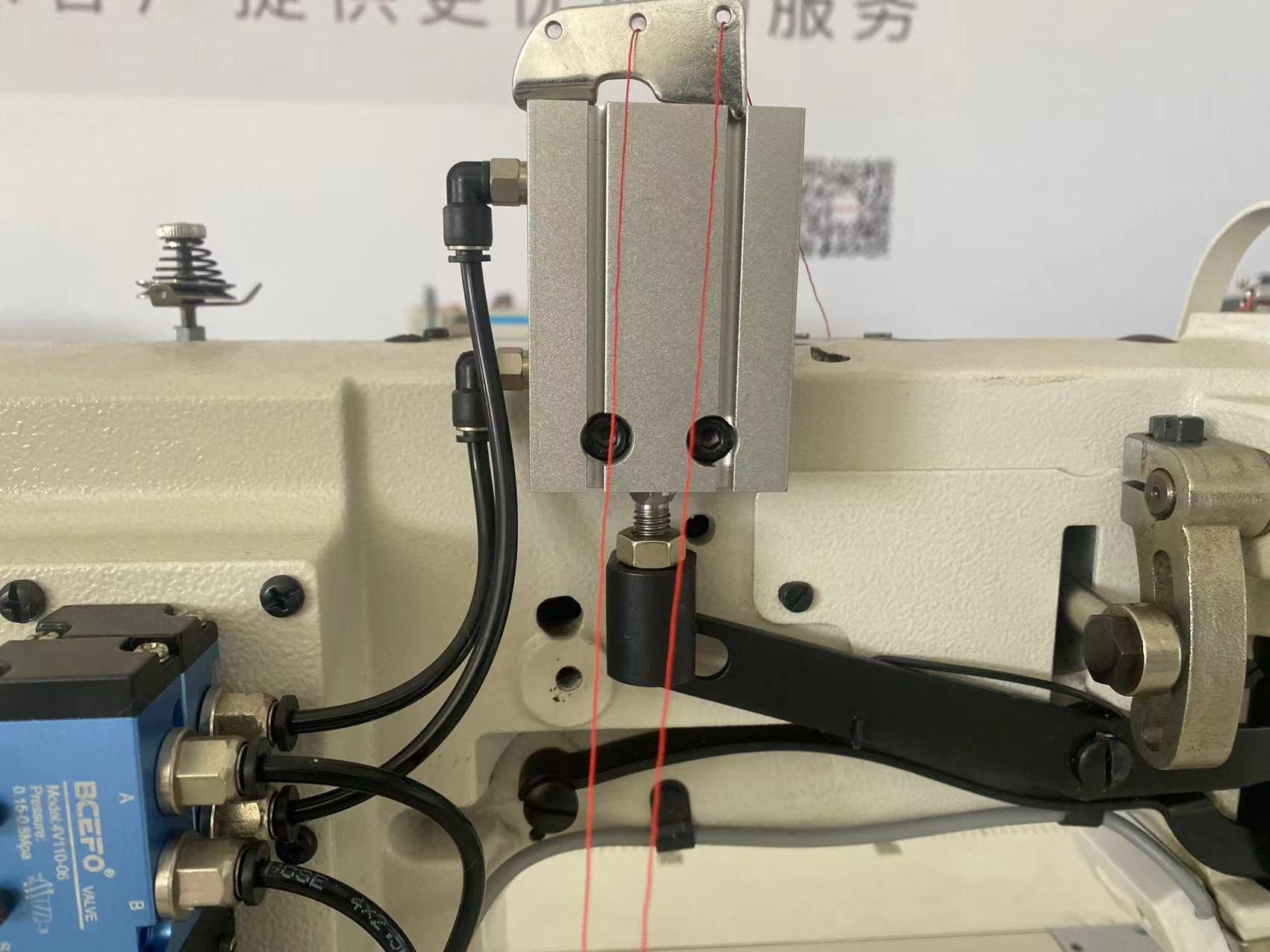

1.Automtic wire clipping,significantly reducing workers'operational strength;

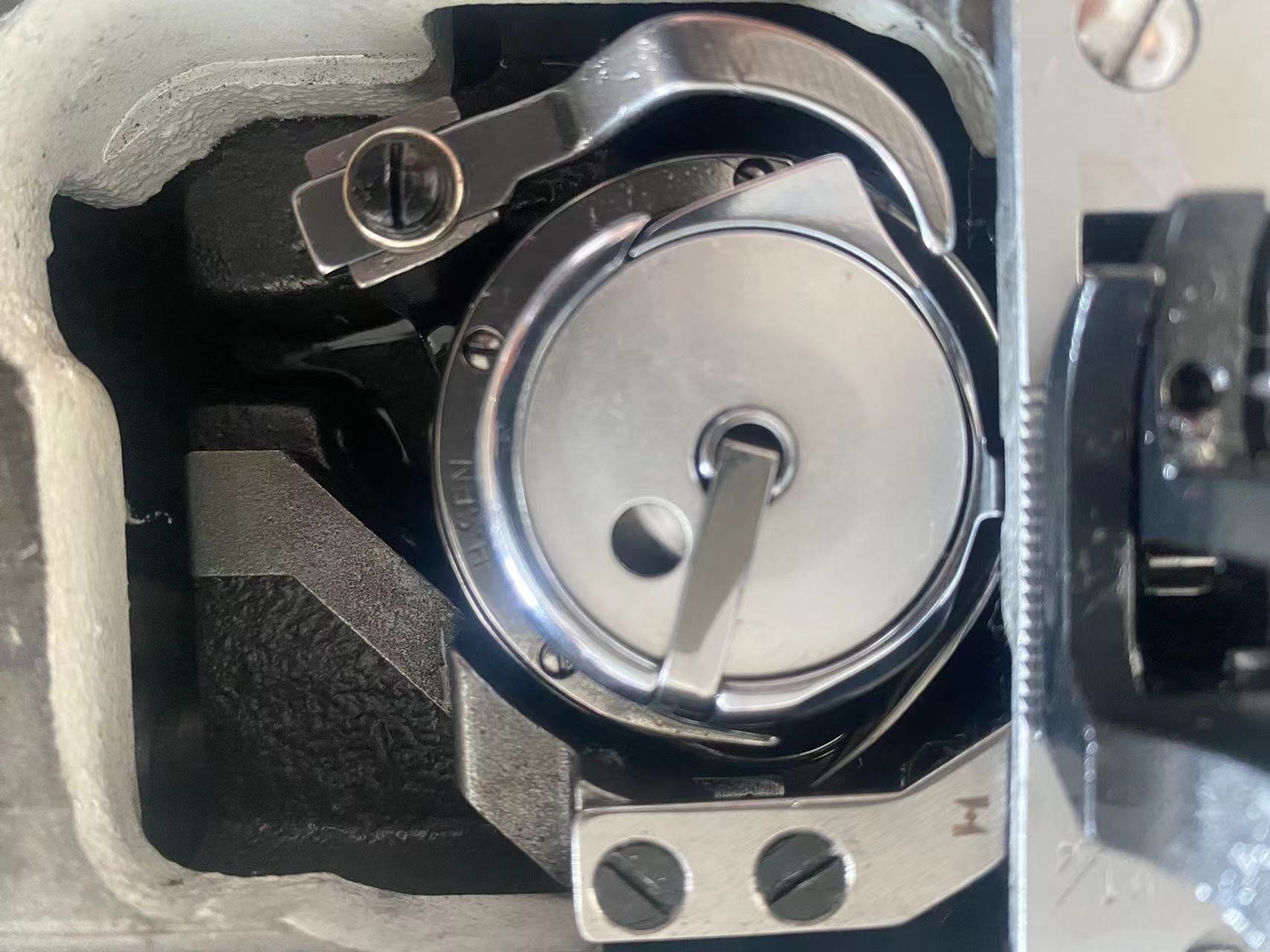

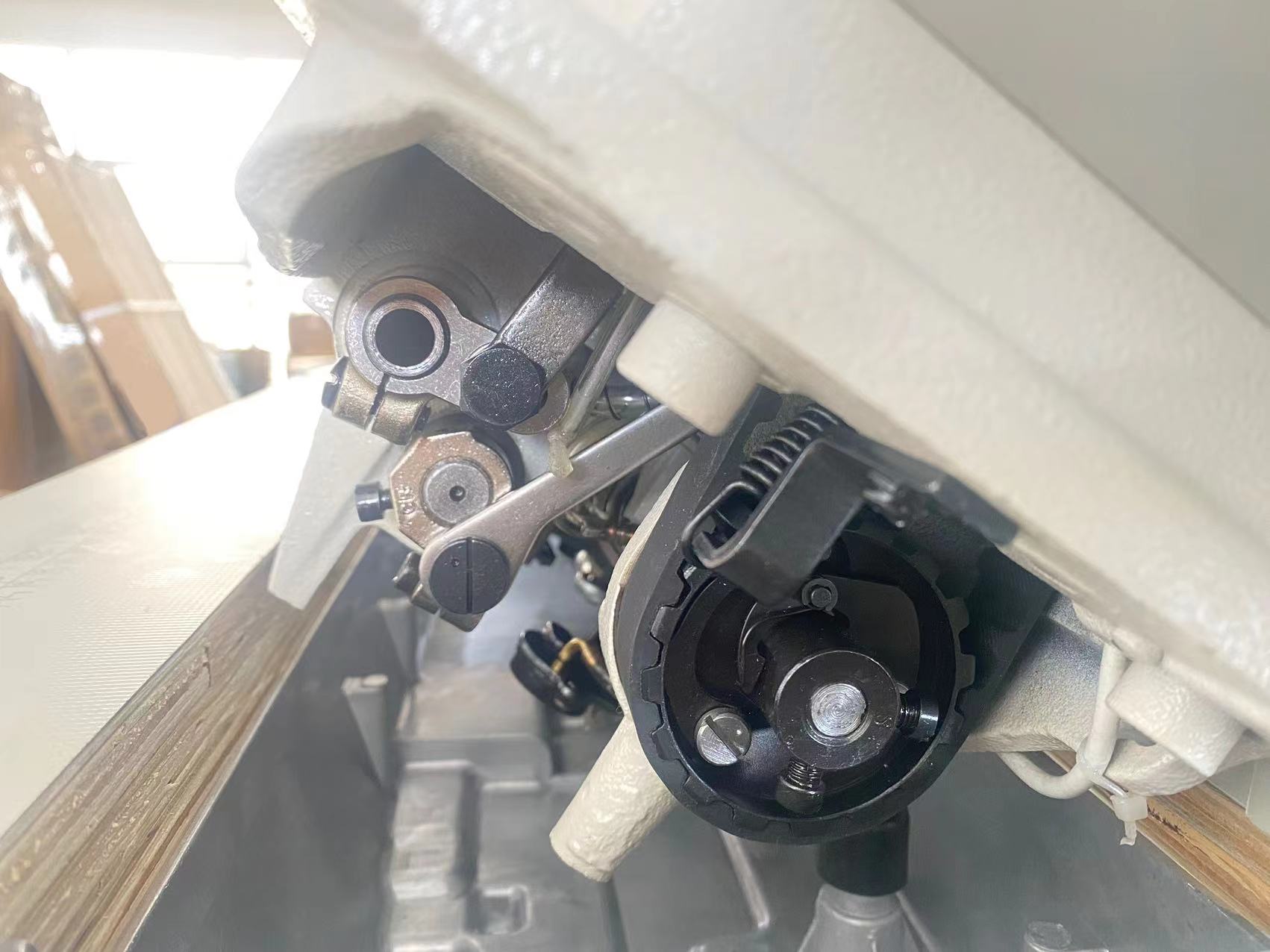

2.This machine is designed with large vertical rotating hooks for thread loop catchingand sliding bars for thread uptaking;
3.The machine is divided into two types: single needle and double needle. It has synchronous toothed belt drive plunger oil pump lubrication system. It adopts synchronous feeding mode of needle bar swing and presser foot feeding；

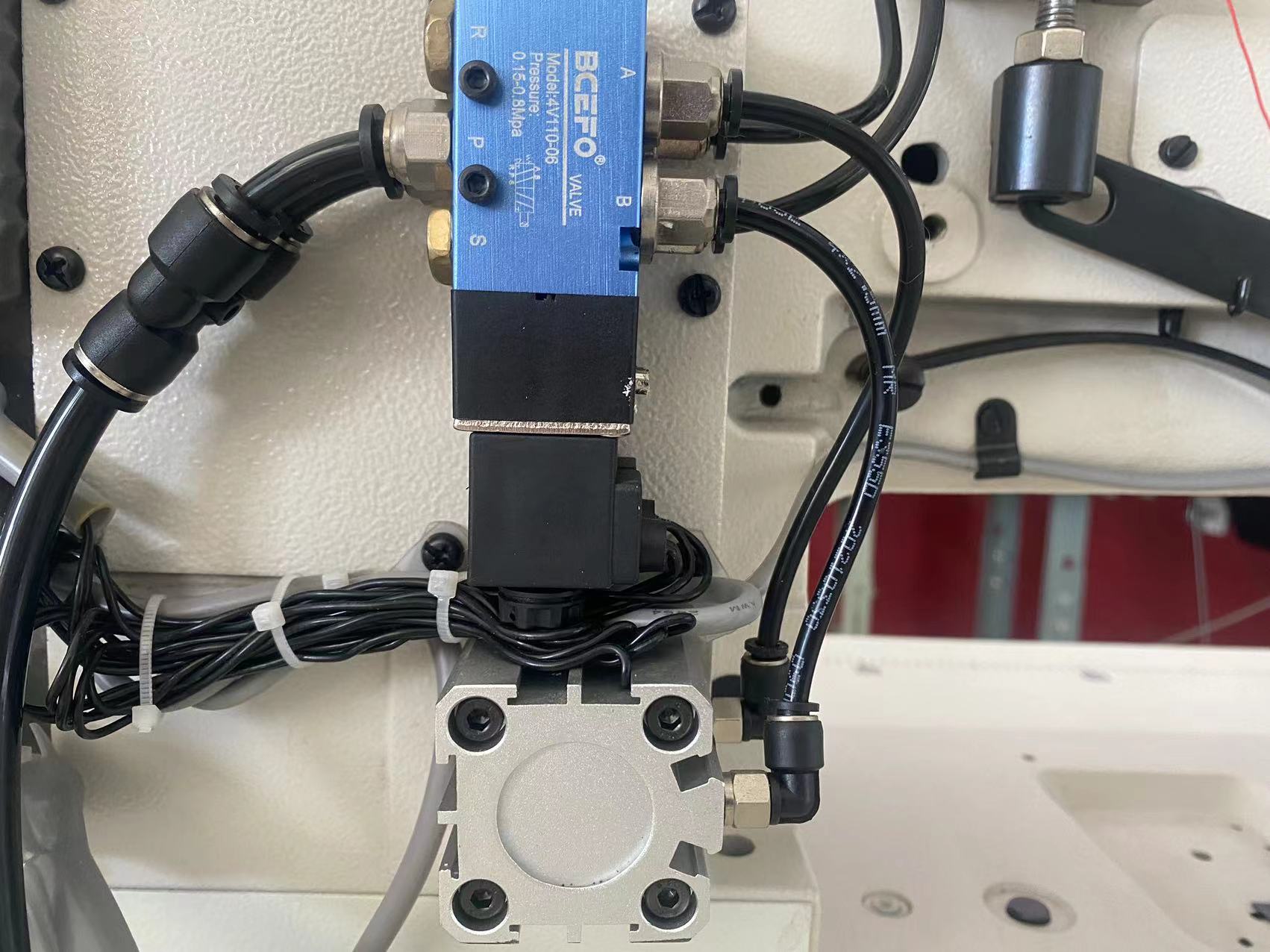

4.The machine is controlled by two cylinders to control the automatic presser foot lifting and automatic back stitching functions respectively；

5.It is also equipped with a safety cluth to prevent the hooks from damage by overduty operation;
Application:
It is especially availbale institching car seat cushions,safety belts,safety air bags,tents,parachutes,etc.Suitable for sewing bags,sofa,furniture,sport articles and tents etc.
Specification:
ModelKL-20618-01KL-20618-02
Number of needlesSingle-needleDouble-needle
Sewing speed(Max)2000r.p.m.
Stitch length0-9mm
Needle bar stroke36mm
Presser foot liftBy hand8mm
Pneumatic13mm
NeedleDp*17 Nm 125-180
Needle gaugeStandard/6.4mm
Special3.2/4/4.8/5/9.5/12.7/16/19/25.4mm
HookVertical hook
