automatic thread trimmer

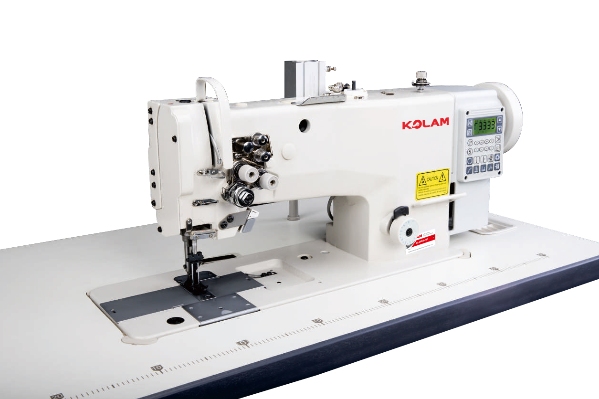

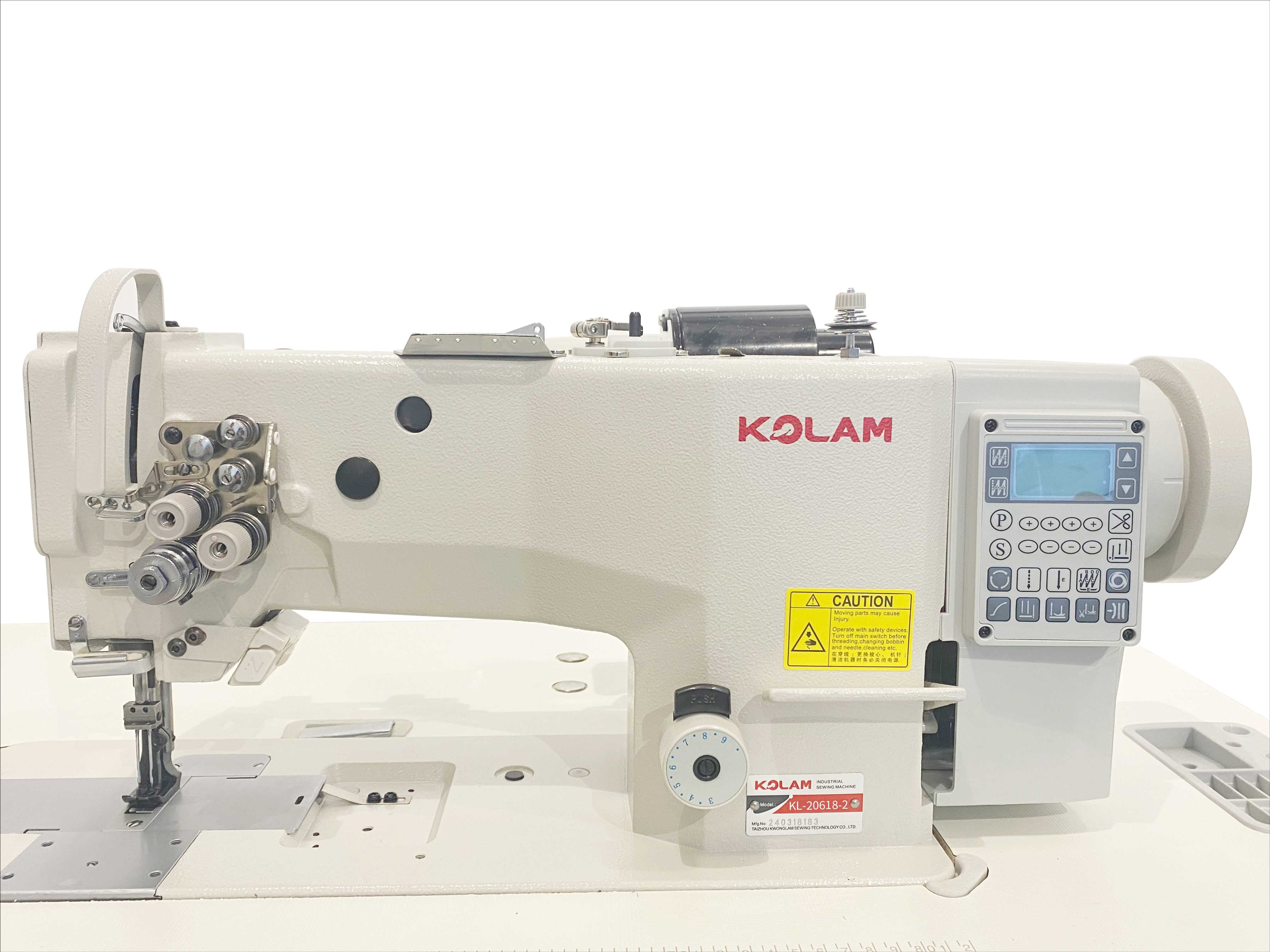

KL-20618-01-4D/KL-20618-02-4D Single/Double Needle Compound Feed Lockstitch With Automatic Thread Trimmer(Electric type)

KL-20618-01-4D/KL-20618-02-4D
It is especially available institching car seat cushions,safety belts,safety air bags,tents,parachutes,etc.Suitable for sewing bags,sofa,furniture,sport articles and tents etc
Quantity:
Contact Now
add to cart

Description:



KL-20618-01/KL-20618-02 Single/Double Needle Compound Feed Lockstitch(Electric type)

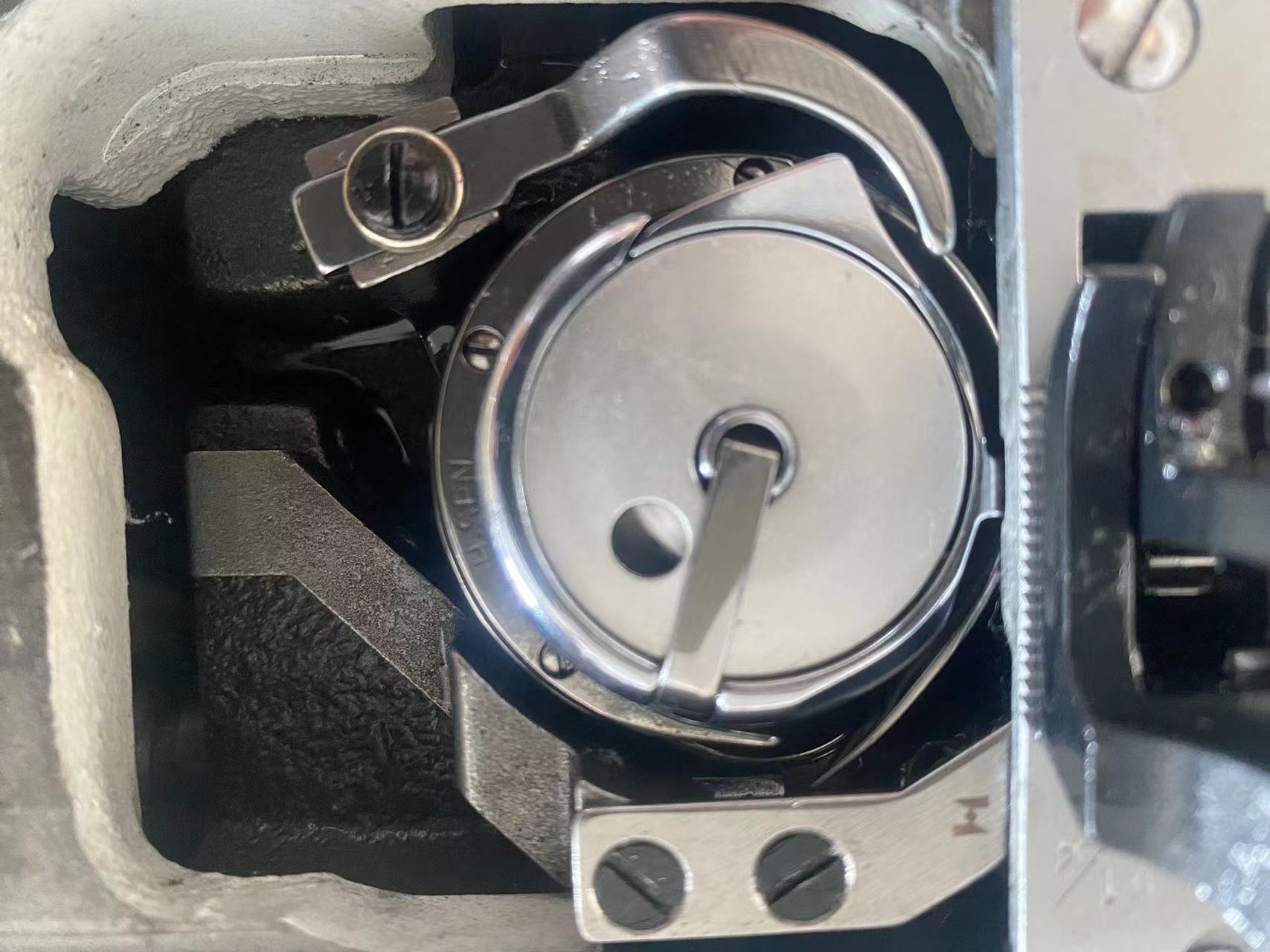

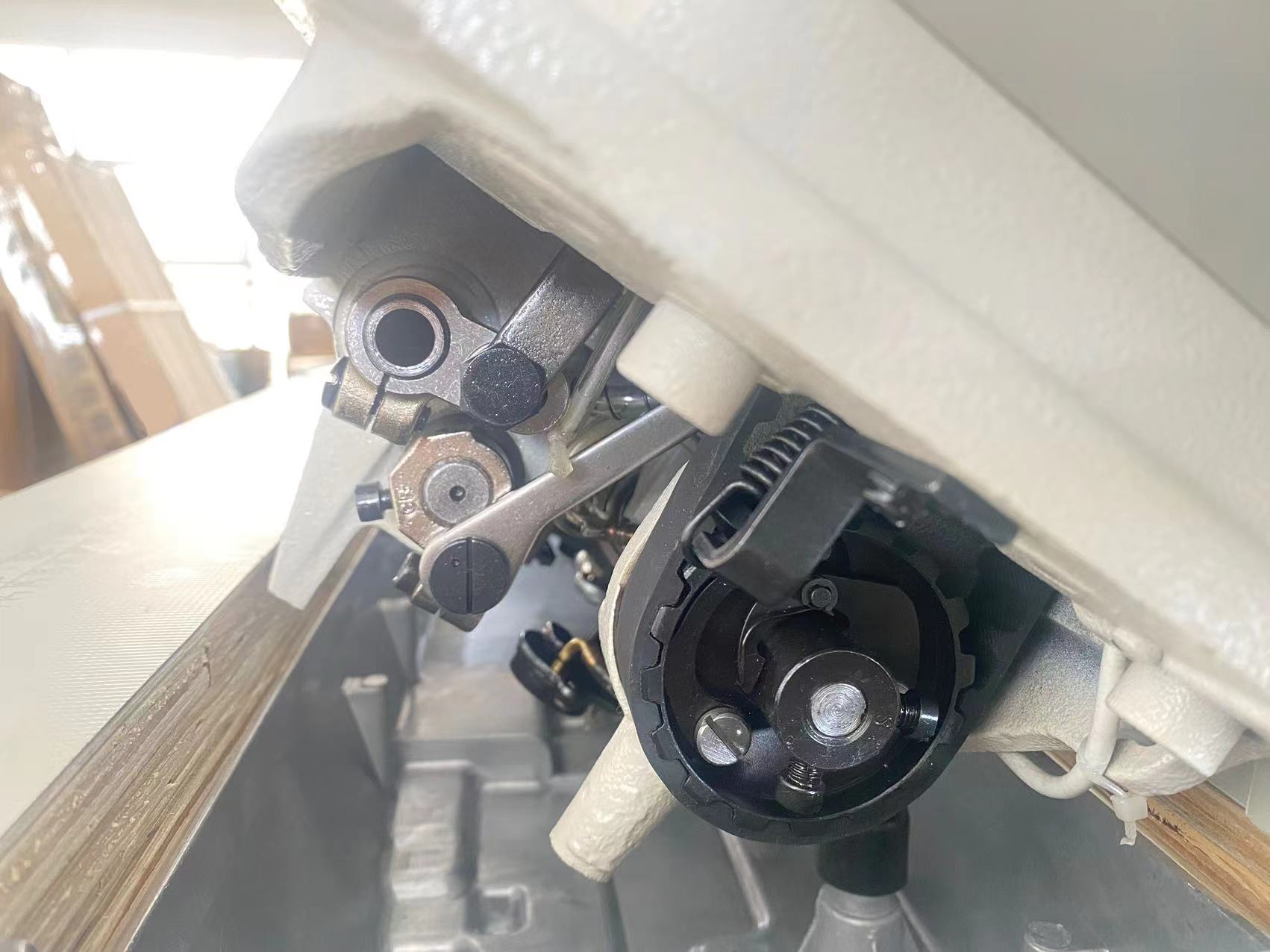

1.This machine is direct compound feed locktitch sewing machine,which is designed with sliding bar thread take-up,automatic lubrication system and equipped with thick thread large vertical hook;

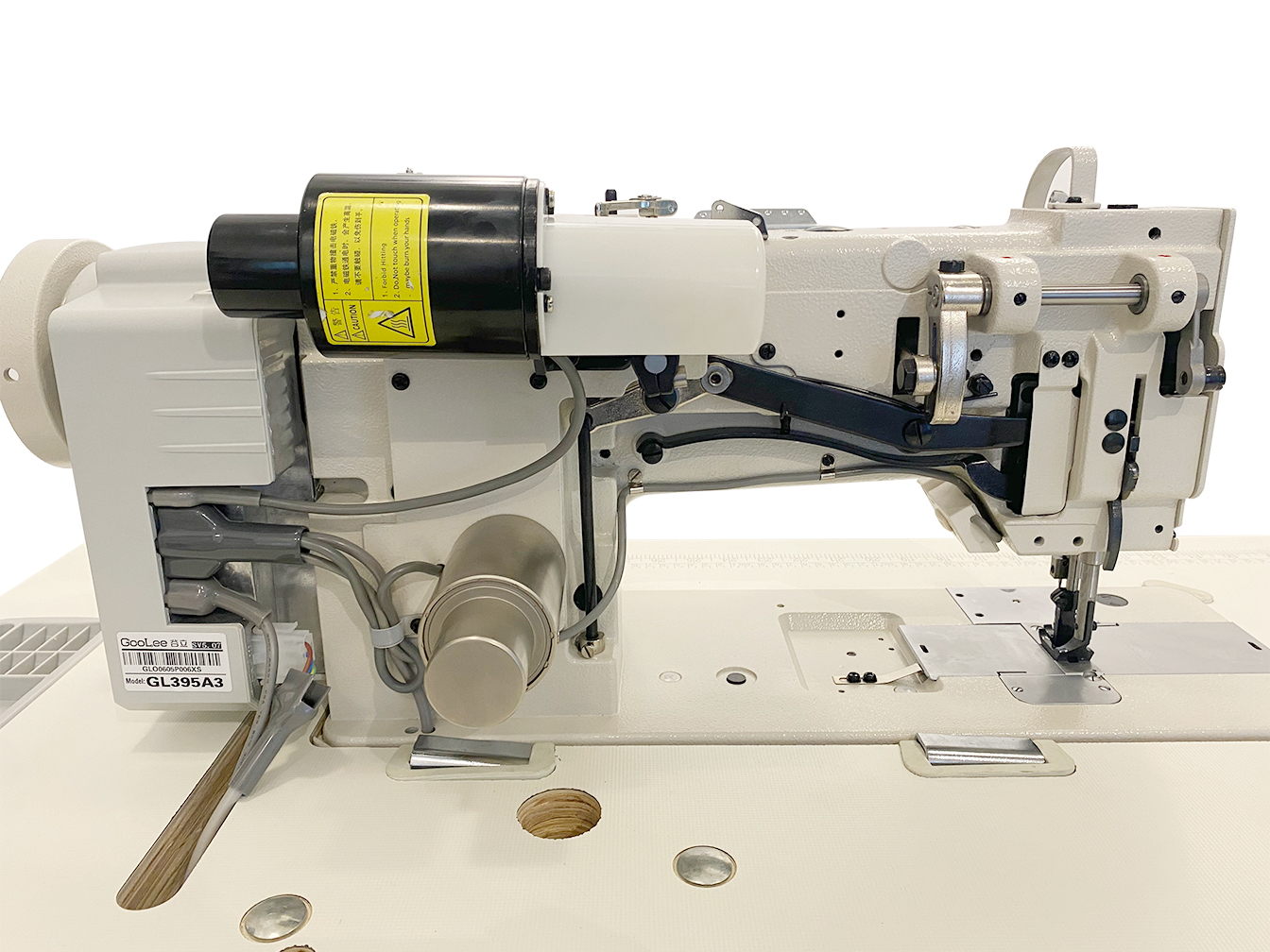

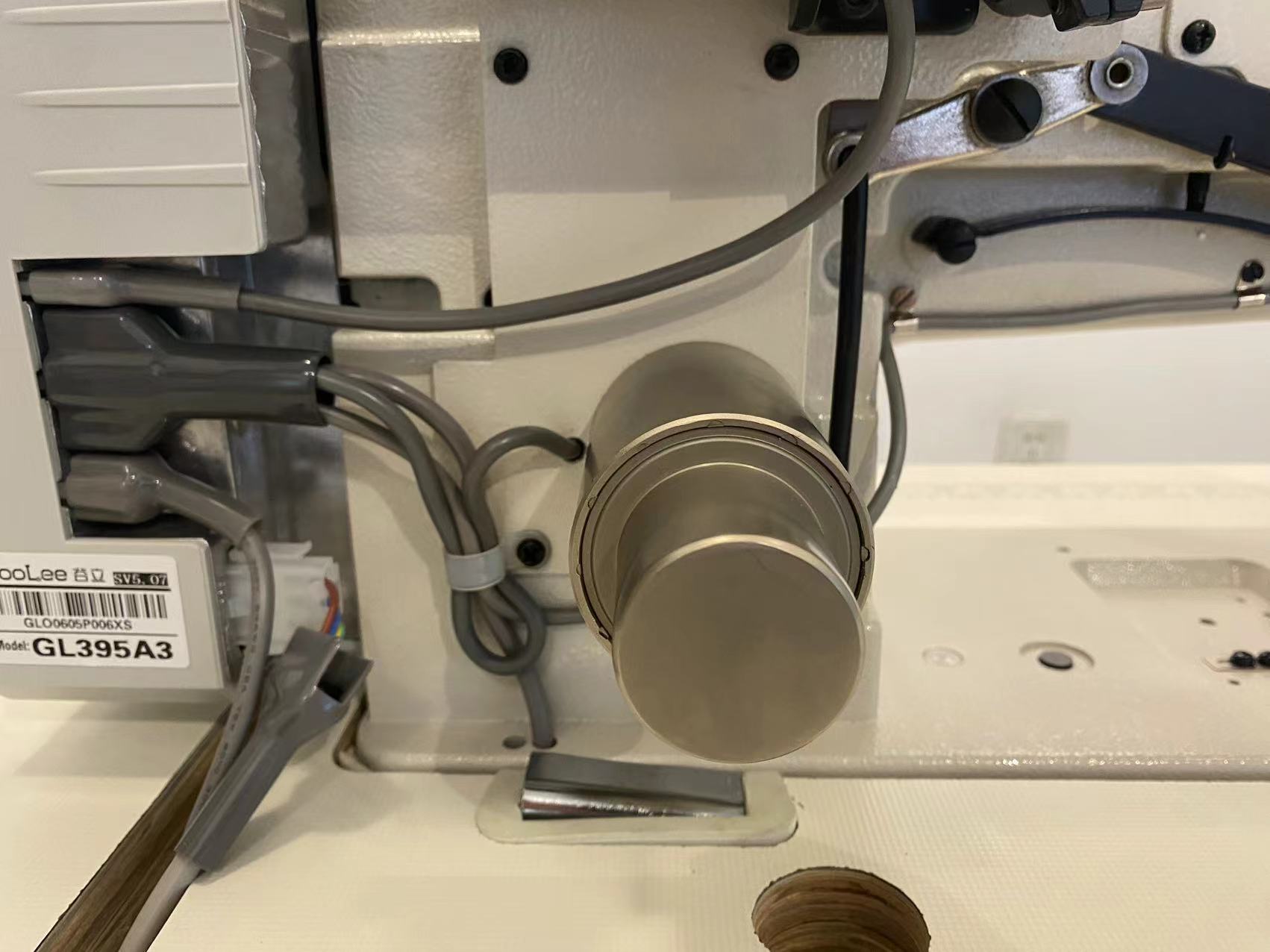

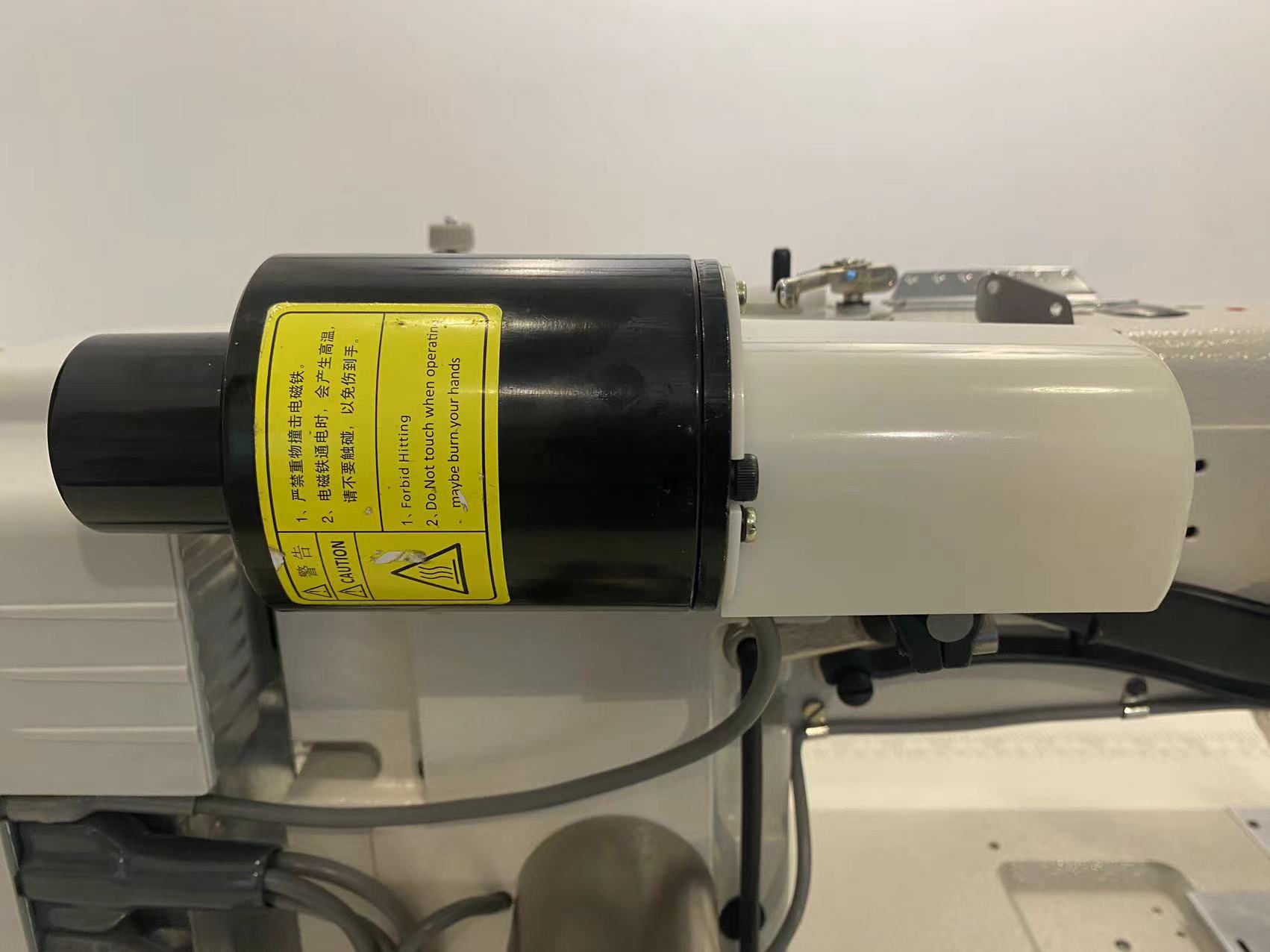

2.Using electric device instead of traditional cylinder to realize automatic functions: automatic presser foot lifting,automatic back stitch. No air source is needed, easy to install;

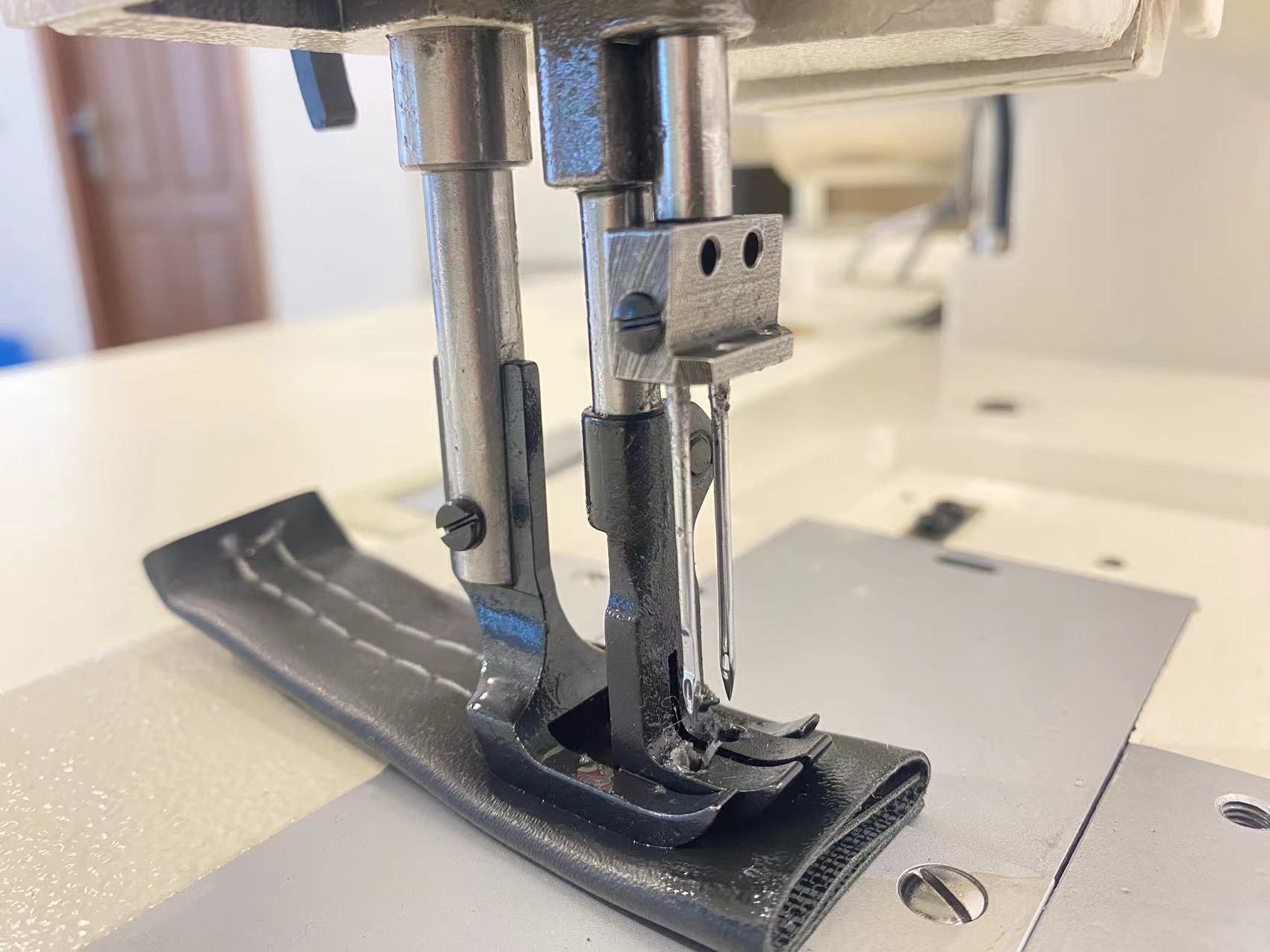

3.The machine has two types of single and double needles to choose from, synchronous toothed belt drive plunger oil pump lubrication system.The compound feed by needle,presser foot and feed dog improves its sewing performance and easily adapts to changes presser foot lifting and it is suitable for sewing various mediun-heavy materials;

4.It is also equipped with a safety cluth to prevent the hooks from damage by overduty operation;
 Application:
It is especially available institching car seat cushions,safety belts,safety air bags,tents,parachutes,etc.Suitable for sewing bags,sofa,furniture,sport articles and tents etc.

Specification:

ModelKL-20618-01KL-20618-02
Number of needlesSingle-needleDouble-needle
Sewing speed(Max)2000r.p.m.
Stitch length0-9mm
Needle bar stroke36mm
Presser foot liftBy hand8mm
Electric13mm
NeedleDp*17 Nm 125-180
Needle gaugeStandard/6.4mm
Special3.2/4/4.8/5/9.5/12.7/16/19/25.4mm
HookVertical hook
