KL-289 Computer-controlled,High-speed,Single-thread Chainstitch, Button-neck-wrapping Machine

KL-289

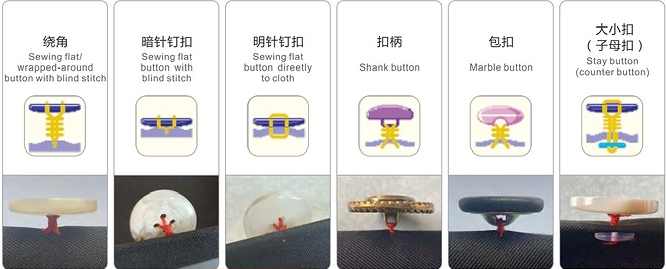

This single machine can also sew flat buttons,shank buttons,marble buttons and stay buttons(counter buttons)
Quantity:
Contact Now
add to cart
Description:
KL-289  Computer-controlled,High-speed,Single-thread Chainstitch, Button-neck-wrapping Machine
1.This single machine can also sew flat buttons,shank buttons,marble buttons and stay buttons(counter buttons);
2.Exclusive active tension(electronic thread tension control system)
(1)The exclusive active tension system for KL-289 further improves responsiveness and allows delicate tension setting when the user changes gabrics;
(2)Thread tensions for button sewing and neck wrapping can be separately set on the operation panel;
(3)The machine stores sewing condition in memory on a pattern-by-pattern basis.Required sewing conditions can be exactly reproduced for every pattern;
3.Cycle sewing
(1)The machine sews buttons on a double-breast suit,a garment that requires the sewing of different types of buttons,in a continuous manner;
(2)Cycle sewing data can be set/edited with the sewing item graphically displayed on the operation panel(the number of buttons,button sewing locations,and sewing locations,and sewing order of buttons);
(3)The button loader can feed two type of buttons in a single sew in cycle;
4.The color panel provides excellent operability
(1)The operation panel is a touch-seneitive type LCD.The clear graphical displays make it much easier for the operator to set or modify sewing data;
(2)A CompactFlash TM card can be used to store and transfer sewing data.This makes it possible for sewing machines at one or more factories to share data.In addition to the CompactFlash TM,the machine is provided as standard with a USB connector.As a result,the use of a USB flash drive or card reader enables the storage and transmission of sewing data by means of various kinds of media(such as a floppy disk,SmartMedia,CompactFlash and SD card) to enable sewing using the same sewing data among sewing machines in a plant or or among subcontract plants;
Detail:

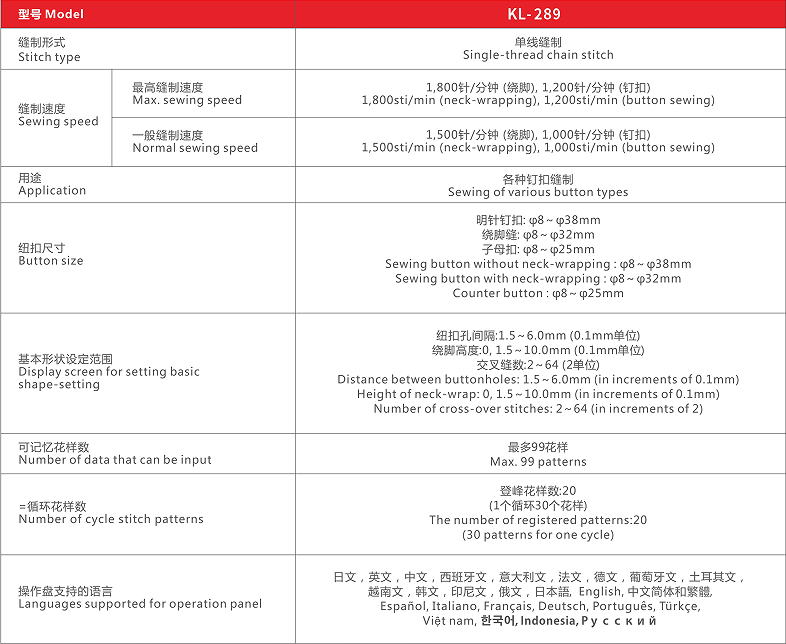

Specification:
Video:
