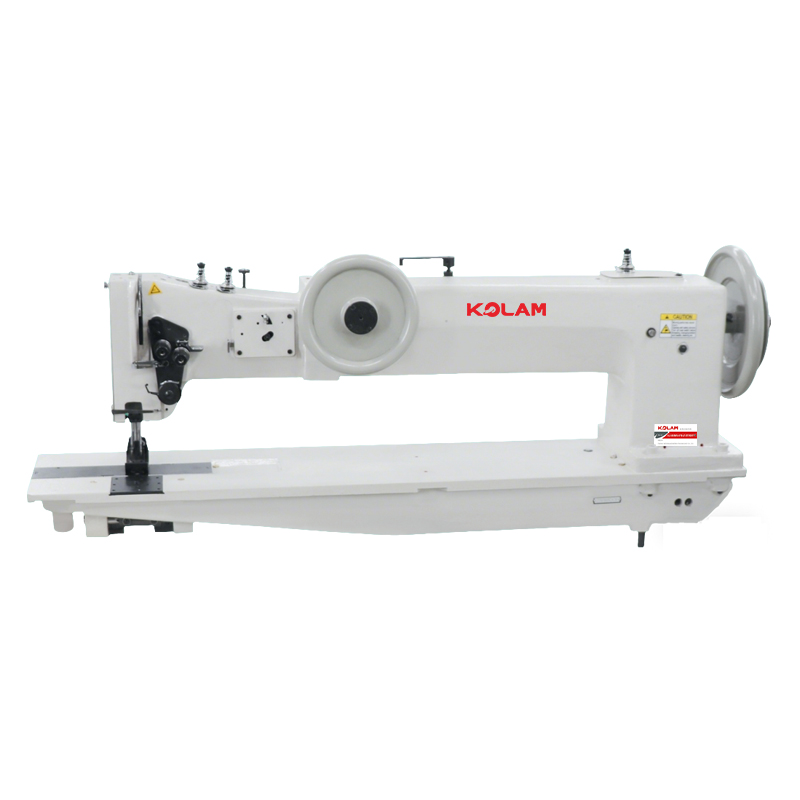

KL-28BL30 Long-arm Single/Double-needle Sewing Machine for Thick Material with Comprehensive Feeding
KL-28BL30
Quantity:
Description:
KL-28BL30 Long-arm Single/Double-needle Sewing Machine for Thick Material with Comprehensive Feeding
1.Type: Long-arm, post-bed machine with a rotating shuttle. Single or double needle.
2.Drive & Feed: Synchronous belt drive. Integrated needle, presser foot, and feed dog movement.
3.Key Features: Smooth, durable, low noise. Large workspace. Overload clutch for safety.
4.Applications: Ideal for automotive parts (seats, seatbelts) and large gear (tents, parachutes).
5.Options: 550W electronic motor. Auto presser lift, backtack, and needle positioning available.
2.Drive & Feed: Synchronous belt drive. Integrated needle, presser foot, and feed dog movement.
3.Key Features: Smooth, durable, low noise. Large workspace. Overload clutch for safety.
4.Applications: Ideal for automotive parts (seats, seatbelts) and large gear (tents, parachutes).
5.Options: 550W electronic motor. Auto presser lift, backtack, and needle positioning available.
Application:
parameter：
| Model | KL-28BL30 |
| Max.sewing speed | 1200r.p.m |
| Stitch length | 10mm |
| Needle bar stroke | 47.3mm |
| By hand | 20mm |
| Presser foot lift/By knee | DYx327# |
| Nedle size | 25mm |
| Needle | 1/2 |
| Rotating hook | Large vertical hook |
| Lubrication | Manual |
| Needle gauge | Factoey 12.7mm |
| Motor | 550W Clutch motor 1400r.p.m |
| Working space | 762*143mm |
