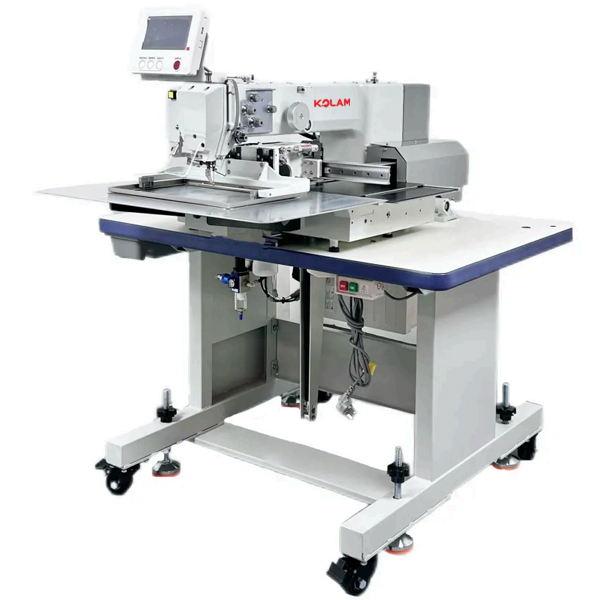

KL-3020HP-2 Double Size Rotary Hook Pattern Machine
KL-3020HP-2
suit for automotive supplies, PET supplies, PET leashes, luggage and luggage, rigging, seatbelts, PET belts, tensioner, tie-UPS
Quantity:
Description:
KL-3020HP-2 Double Size Rotary Hook Pattern Machine
1. The whole machine has a new mold, the casing is longer and thicker, and the net weight is 23 kg less than the old model. It does not nod at high speed, and the exterior is more beautiful.

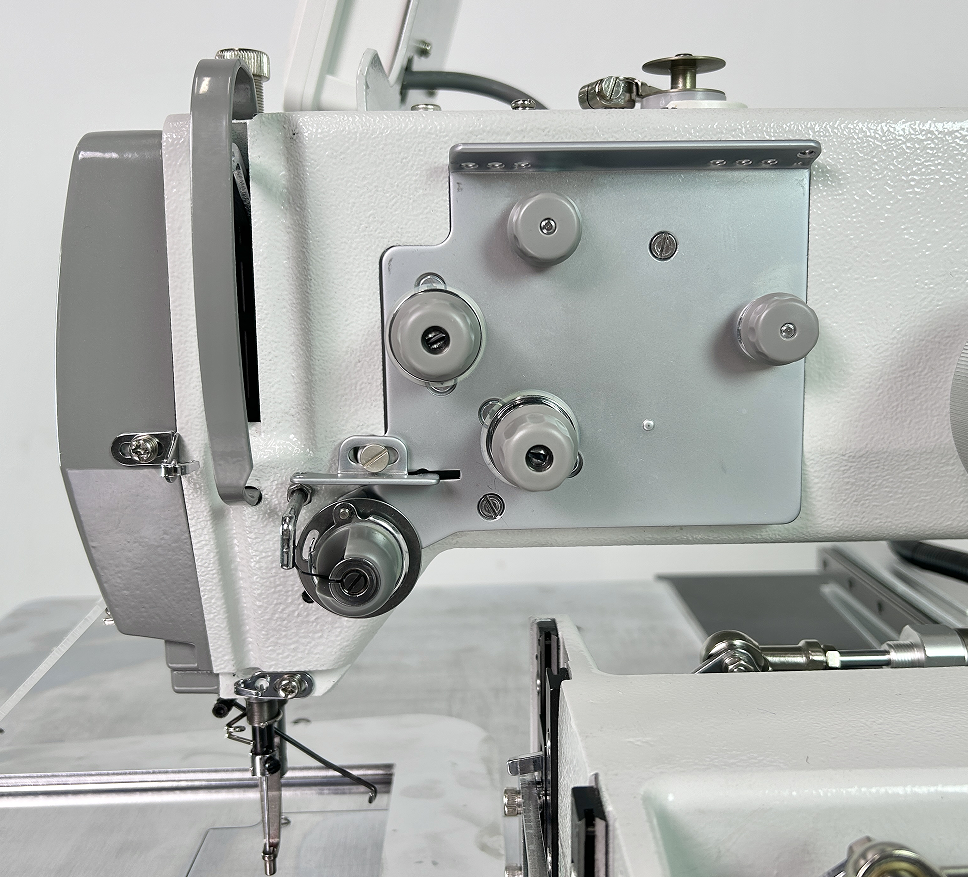

2. The German Durkopp cylinder double clamp device is adopted to effectively disperse the pressure of the clamping line, so it is not easy to knot or twist during sewing, the line is smoother, and the stitches are more beautiful. Reduce the frequency of thread breakage by more than 20%.

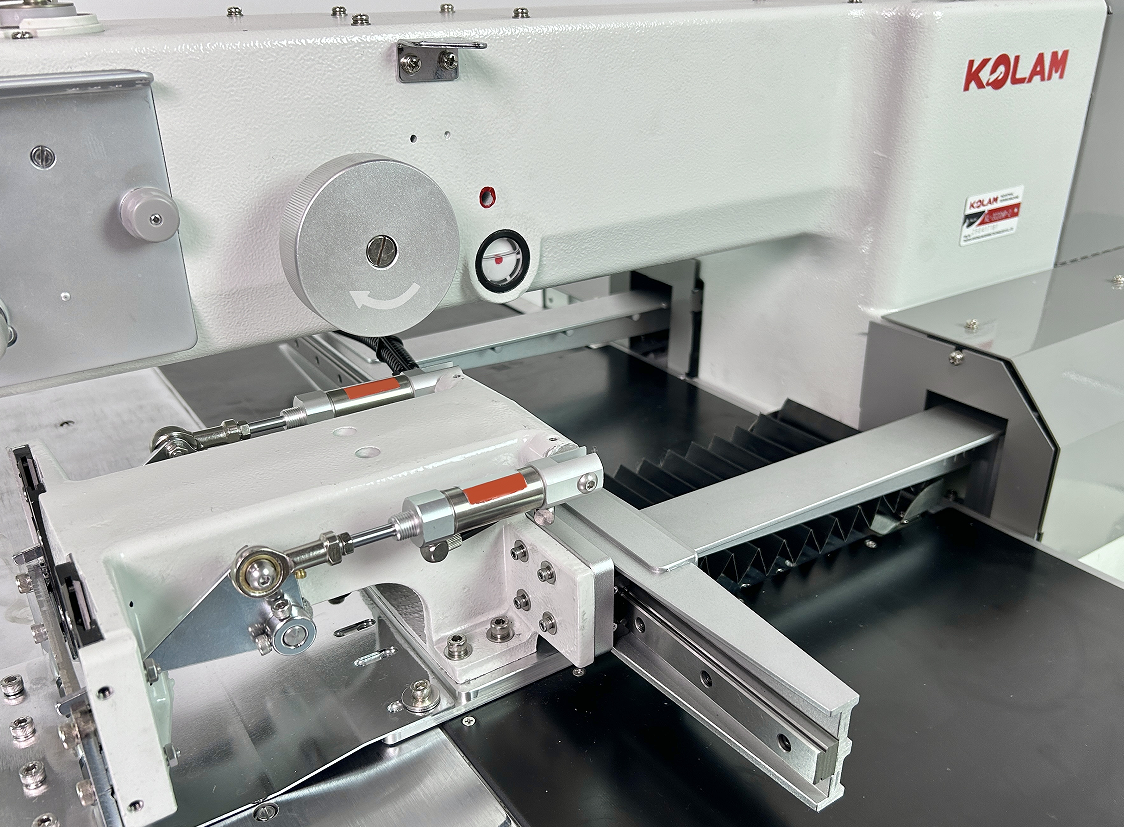

3. The 9 mm guide rail is upgraded to a 15 mm high-precision guide rail. The 2 guide rails in the Y direction are upgraded to 4 guide rails, the durability is increased by more than 50%, and the load capacity is increased by more than 80%.
4. The Y direction is upgraded from one imported belt to 2, with a spacing of 30 cm, and the operation can be powered at the same time.
5. The motor direct connection 1:1 is upgraded to 1:2.5, and the power is increased by 70%. High-speed sewing is more accurate, and vibration noise is reduced by 20%.
6. Supports Internet cloud service platform, pattern management, pattern transmission, and easier management.
7. The electronic control performance is improved by 30%, with the fastest speed of 3000 revolutions per minute (3.0). Stronger penetration and more stable performance.
8. Conventional pattern free pattern making function, simple and easy to understand, you can easily get started in 5 minutes.

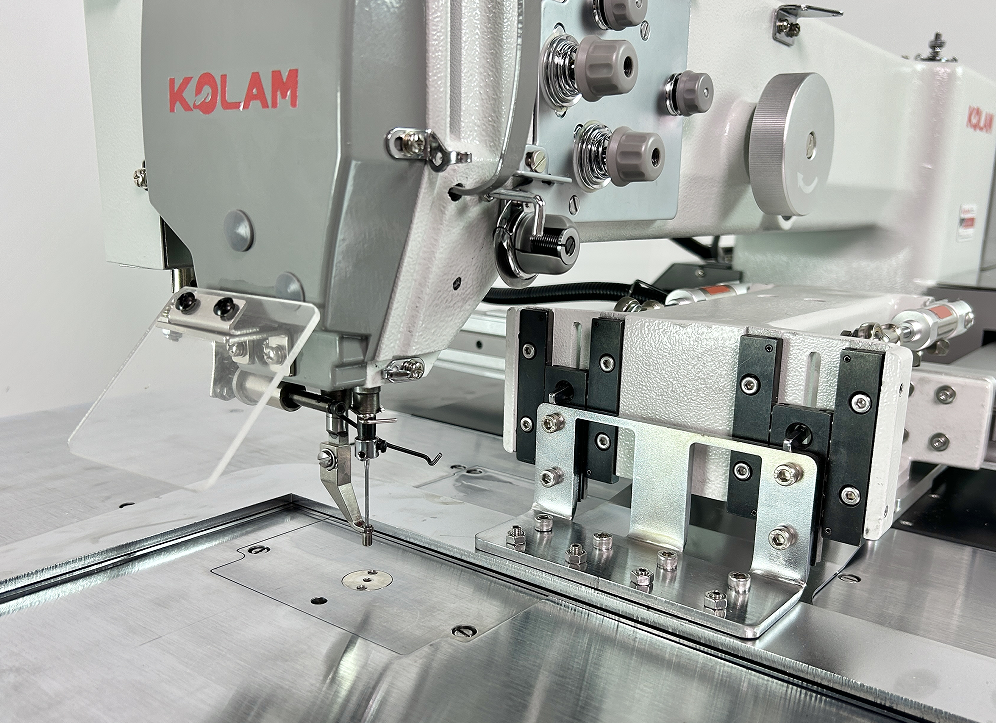

9. The electronic presser foot is easy to carry the thread when starting the needle, there is no nest on the back of the needle, and the thread is easily cut. The thread specifications of 200D to 1200D are no problem.
10. Quick mold change, unified machine standards, computer drawing can be transmitted wirelessly.
2. The German Durkopp cylinder double clamp device is adopted to effectively disperse the pressure of the clamping line, so it is not easy to knot or twist during sewing, the line is smoother, and the stitches are more beautiful. Reduce the frequency of thread breakage by more than 20%.
3. The 9 mm guide rail is upgraded to a 15 mm high-precision guide rail. The 2 guide rails in the Y direction are upgraded to 4 guide rails, the durability is increased by more than 50%, and the load capacity is increased by more than 80%.
4. The Y direction is upgraded from one imported belt to 2, with a spacing of 30 cm, and the operation can be powered at the same time.
5. The motor direct connection 1:1 is upgraded to 1:2.5, and the power is increased by 70%. High-speed sewing is more accurate, and vibration noise is reduced by 20%.
6. Supports Internet cloud service platform, pattern management, pattern transmission, and easier management.
7. The electronic control performance is improved by 30%, with the fastest speed of 3000 revolutions per minute (3.0). Stronger penetration and more stable performance.
8. Conventional pattern free pattern making function, simple and easy to understand, you can easily get started in 5 minutes.
9. The electronic presser foot is easy to carry the thread when starting the needle, there is no nest on the back of the needle, and the thread is easily cut. The thread specifications of 200D to 1200D are no problem.
10. Quick mold change, unified machine standards, computer drawing can be transmitted wirelessly.
（suit for automotive supplies, PET supplies, PET leashes, luggage and luggage, rigging, seatbelts, PET belts, tensioner, tie-UPS）
Detial:
Application:

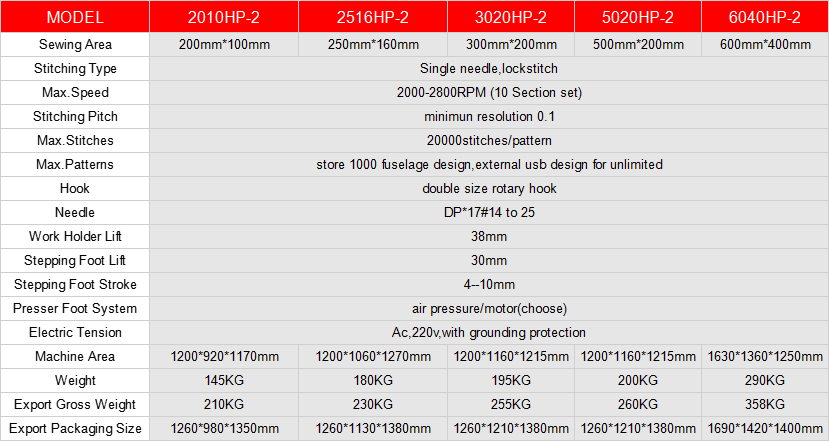

Specification:
Double size rotary hook: 2010HP-2/2516HP-2/5020HP-2/6040HP-2 sewing range models to choose .
