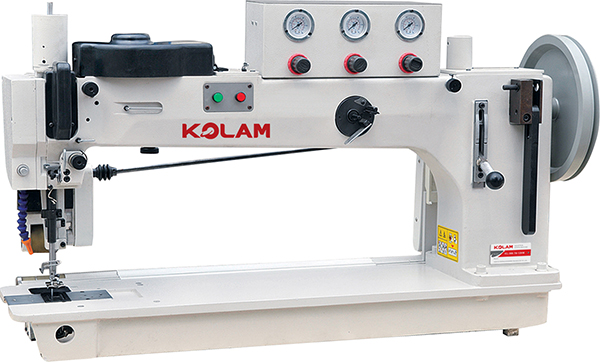

KL-366-76-12HM Long Arm Single Needle Zig Zag Sewing Machine (762mm=30")

KL-366-76-12HM

suit for Extra-Thick Material

Quantity:

Contact Now

add to cart

Description:

KL-366-76-12HM Long Arm Single Needle Zig Zag Sewing Machine For Extra-Thick Material(762mm=30")

1.Zigzag for over-length and extremely thick materials；

2.top and bottom synchronous feeding；

3.synchronous wheels, make it more stable and stronger feeding power for the purpose of multilayer thick materials sewing;

4.suit for Extra-Thick Material.

Specification:

Model	KL-366-76-12-HM
Maximum sewing speed	700r.m.p.
Maximum stitch length	10mm(0-10)
Maximum swing of zigzag sewing	14mm(0-14)
Zigzag sewing mode	Two points, three points, four points
Needle bar stroke	50.8mm
Take-up lever stroke	106.8mm
Needle	DY×3 27#
Shuttle hook	Large semi rotary hook
Presser foot lifting height	20mm
Lubrication system	Hand control
Working space	760×260mm
Motor	550W Electronic speed control motor

Product Advantages:

KL-750N servo motor

HM550W servo motor

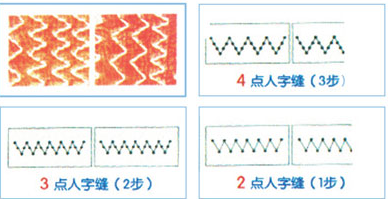

Stitch Sample/ Applications：
