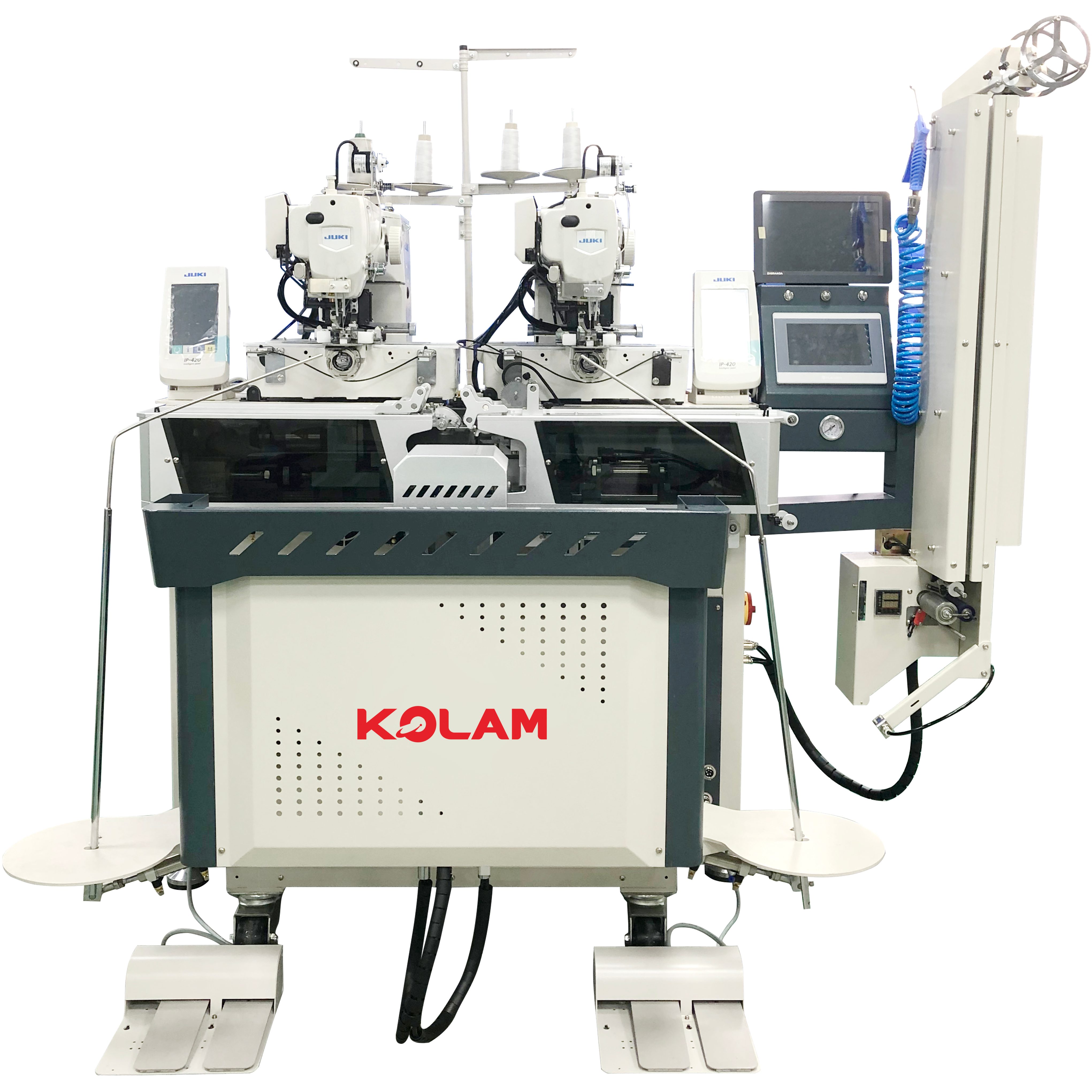

KL-PST-86TJ/KL-PST-86TJ-YX Multifunctional dual station automatic rubber splicing machine (ultrasonicwelding&logobendhmarking)

KL-PST-86TJ/KL-PST-86TJ-YX
Flat seams,overlapping seams,welding,adhesive cutting,and then sewing°are available Multi functional process,splicing 750 to 1040 pieces per hour.
Quantity:
Contact Now
add to cart
Description:
KL-PST-86TJ/KL-PST-86TJ-YX Multifunctional dual station automatic rubber splicing machine (ultrasonicwelding&logobendhmarking)

1.High definiton visualcamera recognition letter logo alignment；
2.Automatic identfication of rubber joint and automatic cutting off；
3.Automatic alam for disconnection；
4.Automatic counter；
5.Welding and re flat joint;
6.suit for undewear,sportsdothes,home dothes,wamdothes,cildren'scotes,yogadothes,has,bags.
Detail:
    Ultrasonic seamless welding              Flat seam                            Overlap seam

Application:
Specification:
ModelKL-PST-86TJKL-PST-86TJ-YX
DescibeCannotcenter logoLogo alignment
PowerMain unit 450W + ironing device 1000W
Use power220Vsngle-phase 50/60hz(heremustbegroundwire)
Use air pressure0.4~0.6Mpa(0.406Kgf/cm²)
Machine needleDP×5(11#,12#)
Control systemNC Control
Sewing macnine speed2700rpm(MAX)
Rubber band sewing width15mm~50mm
Mnimum folded length150mm
Measurement output systemServo motor
Pattern storageMemory card
Maximum number of pattern128M maximum
Pattern data128 patterns
Cutting methodUltrasonic welding and cutting
Applicable fabricRubber band jacquard belt
Sewing output
①1000 pieces/hour(70stitches, total length 600mm,not alphabetic)
②600pieces/hour(220stittches, total length 600mm,not alphabetic)
Package size180(L)×110(W)×175(H) CM
Gross weight420 KG
