industrial sewing machine
KL-20U-A2
industrial sewing machine

KL-20U-A2 Single Stepping Motor Computerized Auto-Oil ZigZag Sewing Machine(190 Designs,Built-in Display)

KL-20U-A2
Suitable for decorative embroidery of thin and medium-thick materials in industries such as down jackets, bras, underwear, gloves, clothing, shoes and hats, leather goods, and luggage
Quantity:
Contact Now
add to cart

Description:

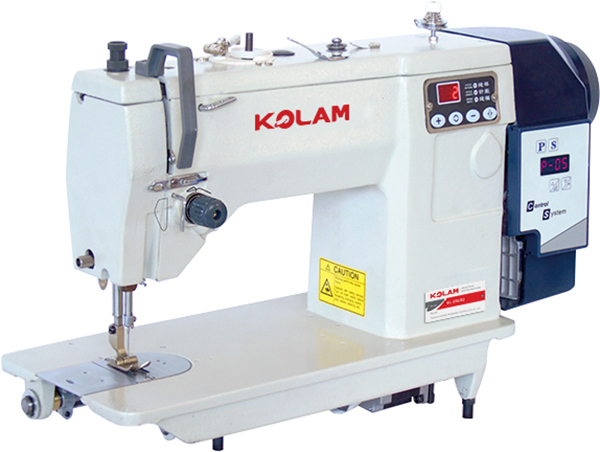

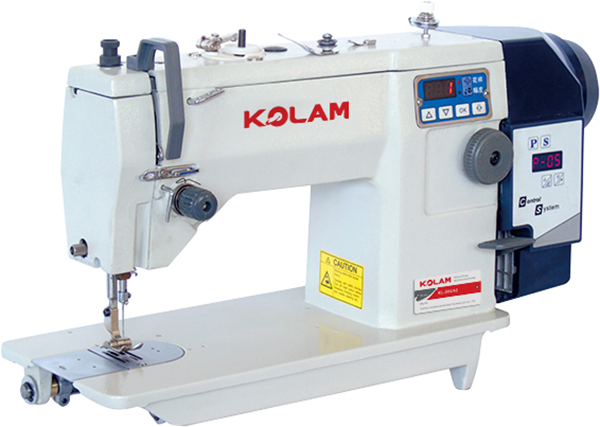

KL-20U-A2 Single Stepping Motor Computerized Auto-Oil ZigZag Sewing Machine(190 Designs,Built-in Display)

1. The KL-20U-A2 is an industrial single-needle zigzag sewing machine with feed dog and one-step piercing. The maximum stitch length is 5 mm and the zigzag width is 9 mm;
2. The machine is equipped with: integrated control panel, bobbin winder and servo drive with options: needle positioning and smooth start;
3. Control panel: This model is equipped with a built-in control panel, intuitive navigation and display. There are 190 different decorative stitches to choose from. The KL-20U-A4 machine is equipped with an external display screen, which can be directly operated through the panel buttons to select the seam width and seam pattern;
4. Winder: There is a device in the zigzag body for winding the thread on the bobbin, which can adjust the thread winding amount and seat lock;
5. Built-in servo drive: The sewing machine is equipped with a single stepper motor, which can control the left and right swing to achieve pattern sewing. Engine power 550W. Basic working speed 1500 st/min (maximum 2000 st/min);
6. Lubrication system: The lubrication system is equipped with an automatic oil pump to circulate the lubricant through all friction units;
7. Suitable for decorative embroidery of thin and medium-thick materials in industries such as down jackets, bras, underwear, gloves, clothing, shoes and hats, leather goods, and luggage;

(SINGER 20U、JUKI 2280、JUKI 2290、JUKI 391)

Detail:

Related products:

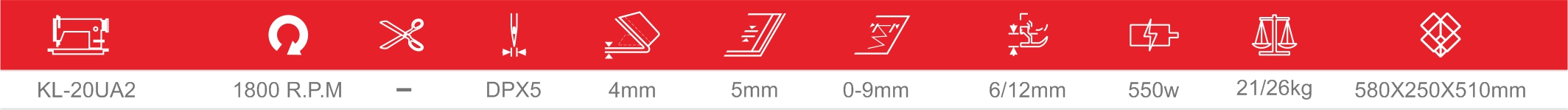

Specification:
