KL-6D-311PK Automatic Pocket Setter (Universal type for all materials)
KL-6D-311PK
通用型厚薄料自动贴袋机
Quantity:
Description:

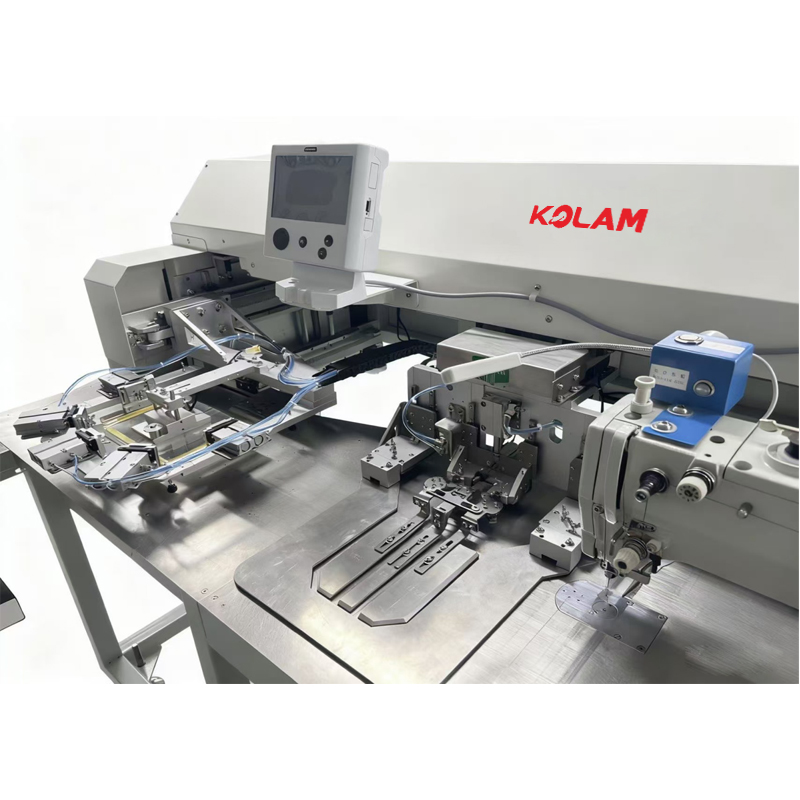

KL-6D-311PK Automatic Pocket Setter (Universal type for all materials)
1. Wide material compatibility – Works with Brother BAS-311 pattern head, supporting light to heavy materials such as denim, twill, leather, knits, and shirts.
2. Precision positioning – The machine is equipped with a material alignment check function and allows manual insertion of side labels, ensuring precise positioning and branding requirements.
2. Precision positioning – The machine is equipped with a material alignment check function and allows manual insertion of side labels, ensuring precise positioning and branding requirements.
3. Vacuum switching – Easily turn suction on/off to secure fabric during folding and sewing, and release finished pieces smoothly.
4. Fully automated & intelligent operation – The machine integrates automatic folding, feeding, sewing, and finished-piece stacking, along with thread breakage detection and an automatic needle cooling system, ensuring continuous production, stable stitch quality, and extended needle life.
5. High-speed output – Achieves a standard production rate of 5–6 pockets per minute under normal operation.
6. Quick changeover versatility – By simply changing the jigs, the machine can also attach T‑shirt back half‑moon pieces, front slanted pockets, or perform any other operations that require automatic edge folding.
4. Fully automated & intelligent operation – The machine integrates automatic folding, feeding, sewing, and finished-piece stacking, along with thread breakage detection and an automatic needle cooling system, ensuring continuous production, stable stitch quality, and extended needle life.
5. High-speed output – Achieves a standard production rate of 5–6 pockets per minute under normal operation.
6. Quick changeover versatility – By simply changing the jigs, the machine can also attach T‑shirt back half‑moon pieces, front slanted pockets, or perform any other operations that require automatic edge folding.
7. Superior stitching – Powered by a Delta 750W servo system that optimally matches torque and speed for flawless stitch formation.
Detail:
Process Demonstration:

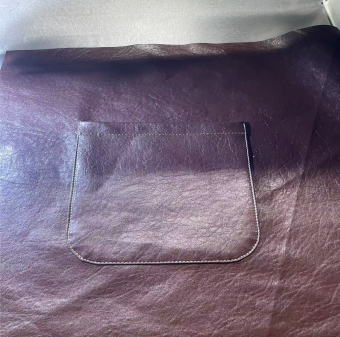

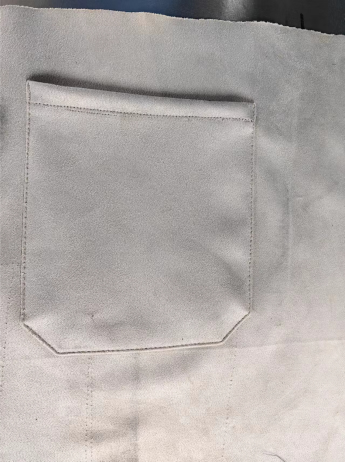

Denim pocket, shirt pocket, materials, jacket pocket, trousers pocket, fully automatic pocket setter
Specification:
| Max speed | 2800 RPM |
| Recommend speed | 2200-2500 RPM |
| Stitch length | 0.1 -12.7mm |
| Stitch | Lock stitch |
| Max pocket area | 250x300mm |
| Min pocket size | 65x65mm (optional parts needed) |
| Pattern quantity in memory | 999+USB memory |
| Workpiece counter | up/down(0-9999) |
| option | oval undercorner tape function, automatic cut/feed/sewing under tape |
| power & consumption | 220V1 P 50/60Hz, 3.5Kw (direct drive) |
| Air pressure | 5 Bar (Alarm when below 5 bar) |
| Efficiency | 5 pockets/minute |
| Special Feature | Thread breakage detect |
