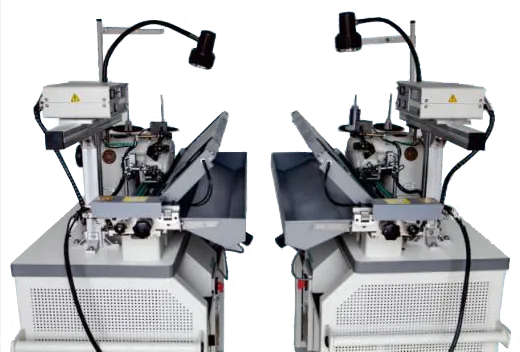

KL-2406B Strobel KA-ED Single Thread Roll-padding Machine

KL-2406B

Electronically controlled automatic sewing unit for high-quality and efficient rol-padding of lapels of jackets and coats

Quantity:

Contact Now

add to cart

Description：

1.Electronically controlled automatic sewing unit for high-quality and efficient rol-padding of lapels of jackets and coats;

2.With a daily output of 600 to 1500 jackets,it meets higest quality requirements:Lapels(up to 63 cm) roll-padded on this machine have a perfect shape and are absolutely free of twist and pucker;This means high stability of shape and very soft wear comfort;

3.The KA-ED is very easy to operate since the individual lapel shapeis sensed automatically and accurately.Easy shift to peaked lapel by the operator;

4.Equipped with STROBEL head；

Video：

Specification：

Model	KL-2406B
Recommanded rated speed	2800/min
Stitch length	6.5mm
Top feed&differential carriage transport	equipped with
Fixed plunger	equipped with
Needle plate opening	6.0mm
Stitch depth regulation	digital display
Seam distance	4-15mm
Needle system/Needle size	GROZ-BECKERT 4669 EEO 80/12
2 sewing units	equipped with
Thread stop motion	equipped with
ILED sewing lamp	equipped with
Power consumption	2*1040W
Electricity	190-240V/50-60Hz
Max.lapel length	3cm
Max.seam length	63cm
Daily output(8 h)	500-1050 Sakkos/pairs of lapels
Stitch type	single thread chain stitch type 103
Thread	polyester continuous fliament 200/2
Pneumatic connection	5-6bar
Avarage air consumption	2*4751/h
Weight without packaging	2*158kg
Operating noise	LpAm 77 dB(A)
