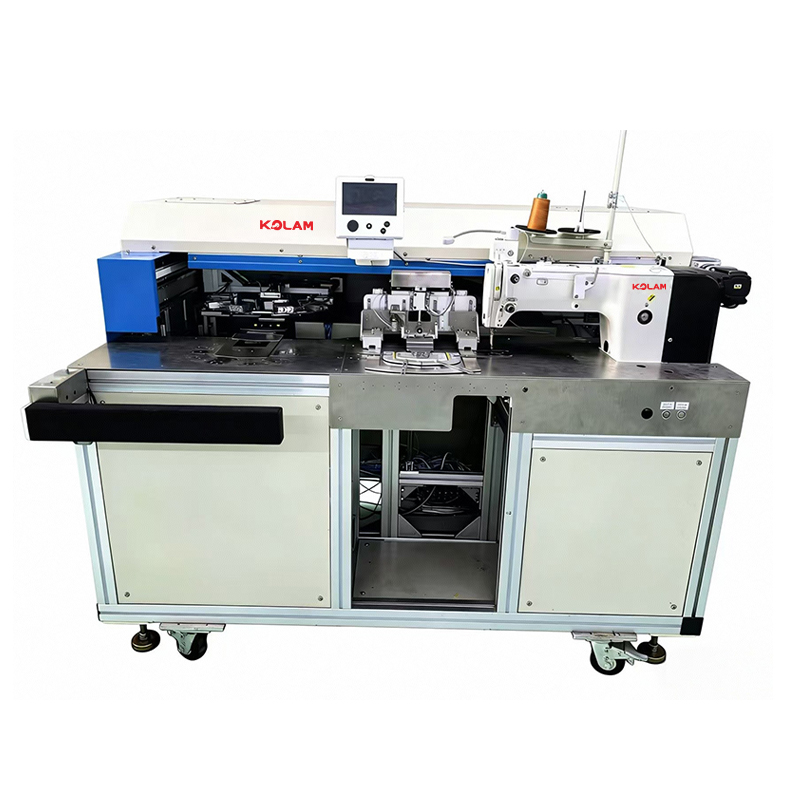

KL-311FLP Pocket Flap Machine
KL-311FLP
This model is designed for making flaps in 1 click operation with all kinds of materials.
Quantity:
Description:
KL-311FLP Pocket Flap Machine
1.One‑click flap making – Uses a pattern sewing machine head to create flaps (pocket flaps) from all kinds of materials with a single operation.
2.Fully automatic process – Integrates automatic folding, feeding, sewing, thread breakage detection, finished piece stacking, and an automatic needle cooling system.
3.High efficiency – Produces approximately 4–5 pocket flaps per minute.
4.Power & air supply – Operates on 220V, 1‑phase, 50/60Hz, 1.25kW direct drive; requires 5 Bar air pressure with a low‑pressure alert.

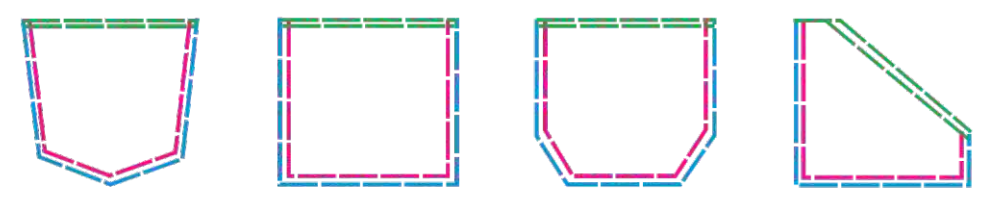

5.Versatile application – Designed as a fully automatic pocket setter for big pockets, shirt pockets, twill material pockets, jacket pockets, and trousers pockets.
6.Quick changeover – Comes with plug‑and‑play jigs as standard; operators can change jigs and recall stored patterns in 30 minutes to start a new production.
7.Precision drive system – Equipped with a Delta 750W dynamic servo motor and driver, ensuring high‑accuracy XY positioning and stitching.
Application:
2.Fully automatic process – Integrates automatic folding, feeding, sewing, thread breakage detection, finished piece stacking, and an automatic needle cooling system.
3.High efficiency – Produces approximately 4–5 pocket flaps per minute.
4.Power & air supply – Operates on 220V, 1‑phase, 50/60Hz, 1.25kW direct drive; requires 5 Bar air pressure with a low‑pressure alert.
5.Versatile application – Designed as a fully automatic pocket setter for big pockets, shirt pockets, twill material pockets, jacket pockets, and trousers pockets.
6.Quick changeover – Comes with plug‑and‑play jigs as standard; operators can change jigs and recall stored patterns in 30 minutes to start a new production.
7.Precision drive system – Equipped with a Delta 750W dynamic servo motor and driver, ensuring high‑accuracy XY positioning and stitching.
Application:
parameter：
| Max speed | 2800 RPM |
| Recommend speed | 2200-2500 RPM |
| Stitch length | 0.1-12.7mm |
| Lock stitch | |
| Thread breakage detect | |
| Max pocket area | 440x300mm |
| Min pocket size | 65x65mm（optional parts needed） |
| Pattern quantity in memory | 999+USB memory |
| Work piece counter | up/down(0-9999) |
Video:
