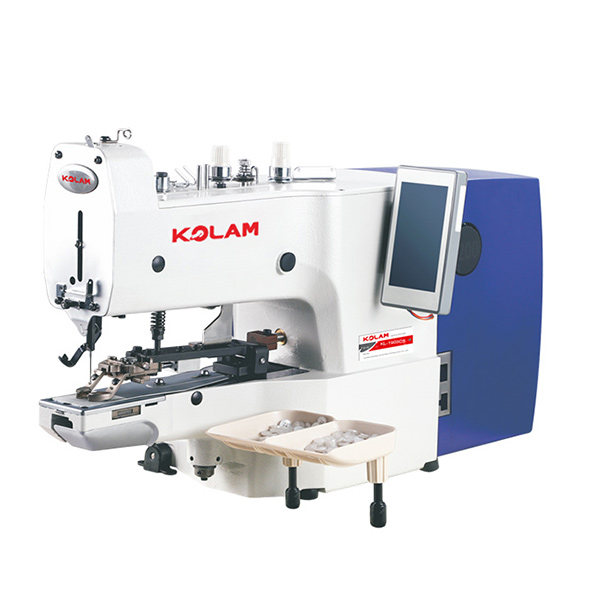

KL-988-1903CS Three stepping motor chain-stitch direct drive button attaching machine

KL-988-1903CS
The KL-988-1903CS is a high-precision, direct-drive button attaching machine designed for superior efficiency and stitch quality in garment manufacturing. Its advanced drive system and user-friendly smart controls make it an ideal solution for modern production lines.
Quantity:
Contact Now
add to cart
Description:
KL-988-1903CS Three stepping motor chain-stitch direct drive button attaching machine

1.Drive System: Main shaft motor + Three stepping motors ；
2.Stitch Type: Single-thread chain stitch ；
3.Ultra-short wire tail: Approximately 3-4mm；
4.Thread Securing (Prevent unraveling): Start stitching / End stitching(Securing stitch count adjustable)；
5.Expansion and contraction function: freely adjustable stitch length；
6.Programmable color touchscreen: effortless editing for diverse patterns；
7.Storage Media: NORFLASH；
8.Storage capacity: Maximum 99 pins；
9.Standard patterns: Currently 18 patterns (can store up to 100)；
10.Number of storable data: 100 patterns.
（like juki MB-1800）
Detail:

Parameter:
ModelKL-988-1903CS
NeedleDPX17 #14/90
Button diameter9-30
9-20(Standard)
Button hole spacing3-5
3.5(Common)
Button hole spacing2.5-6.5
Height presser foot16.0
Needle bar stroke45.7
Automatic thread trimmer
Max.speed
3000
2600(Common)
Weight
45/52
Package size780 *360*550
