KL-H800

KL-H300/H400/H500/H600 Fusing Machine Basic Type

KL-H300/H400/H500/H600
Forced anti-bias bonding machine (with seam tape)
Quantity:
Contact Now
add to cart
Description:
1.This machine is a hot melt adhesive pressurized continous fusing machine,it has to prevent migraine with special properties suitable for fabric and fusible interlining of thermo-compression bonding purposes;
















                                  Machine operation video
2.This machine is in the non rotating driven wheel(inlet position)add in limit plate,in order to achieve the purpose of adhesive tape;

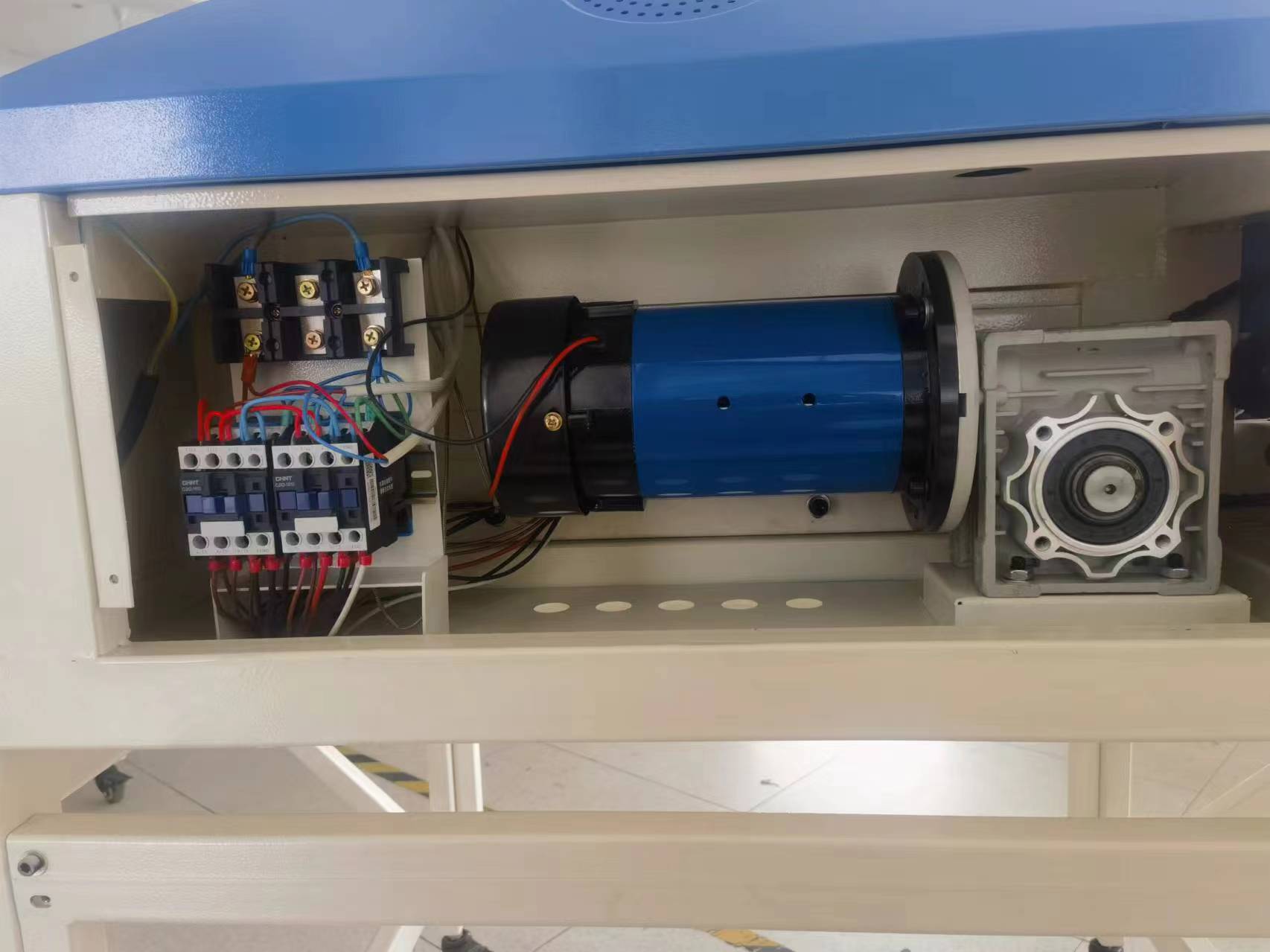

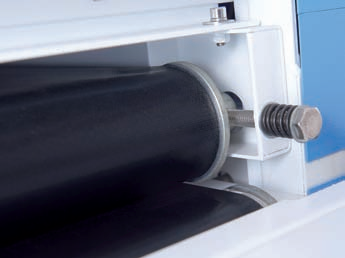

               Adjusting screws                                            Motor


















 Forced correction working video
Correction method：If the conveyor belt deflects to the left, tighten the left screw with a wrench, or loosen the screw on the other side. The correction method for the upper and lower conveyor belts is the same. Be careful not to twist the screw too much when adjusting. A deflection of about 15 degrees is sufficient；
Application：
It can be widely used in various non-flammable agents contain fabric collar,chest,cuffs,placket,waists top fabric and adhesive products smooth stiff and resistant to washing,wrinkle-resistant,especially suitable for bonding various resin collar linings and non-woven linings;
Specification：
Model

KL-MS450/MS500/MS600

KL-H300/H400/H500/H600

Max.bonding width450/500/600mm300/400/500/600mm
Upper belt width*length450*1350/500*1350/600*1350mm300*1530/400*1530/500*1530/600*1530mm
Botton belt width*length450*1650/500*1650/600*1650mm300*1840/400*1840/500*1840/600*1840mm
Operating speed of conveyer belt0-10m/min
Bonding pressure0-0.3MPa
Bonding temperature≤190℃
Motor power of conveyer belt50W70W
Electric heating power5.2/5.2/6kW4/5/6.5/7.5kW
Power supply220V/1PH/50Hz220V/1PH 380V/3PH/50Hz
G.W.202/202/222kg144/160/176/194kg
Out line dimension(L*W*H)1965*973(1073)*1093mm2320*900(1000/1100)*1095mm
Packing size1050(1050/1130)995*730mm1050*755(855/955/1055)*730mm
