KL-MS500

KL-MS450/MS500/MS600 Auto Belt Adjustment Fusing Machine With Seamless Belt

KL-MS450/MS500/MS600
Automatic deviation-adjusting fusing machine (seamless belt)
Quantity:
Contact Now
add to cart
Description：
1.This machine is a hot melt adhesive pressurized continous fusing machine,it has to prevent migraine with special properties suitable for fabric and fusible interlining of thermo-compression bonding purposes;















                                  Machine operation video
2.This machine is have limit swich,automatic belt warping prevention by motor;

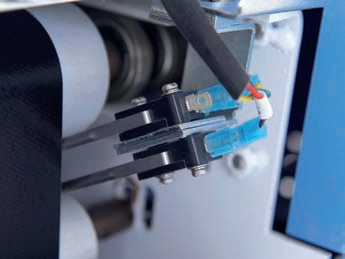

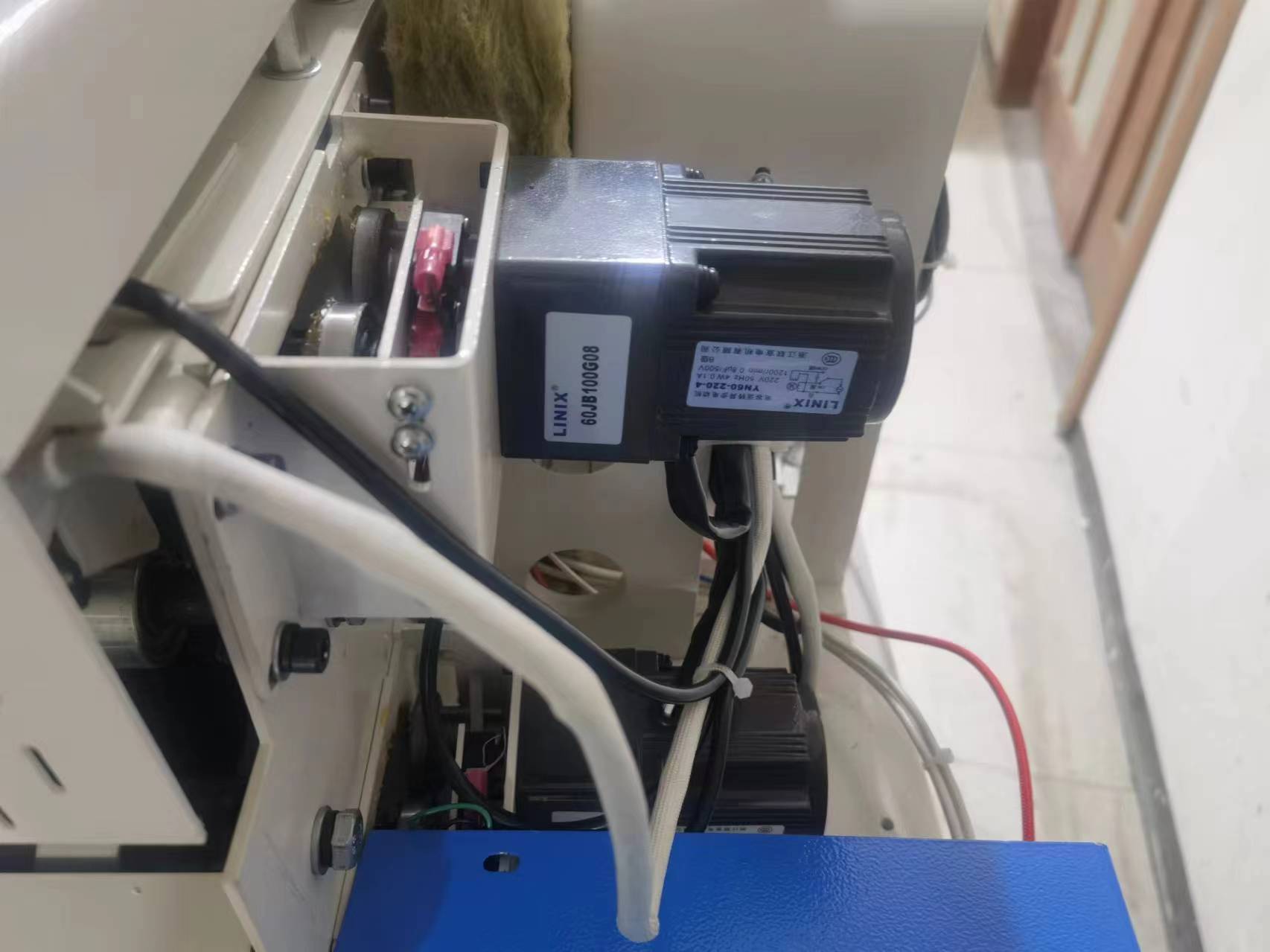

                       Sensor                                            Adjustment motor


















Automatic correction working video
Application：
It can be widely used in various non-flammable agents contain fabric collar,chest,cuffs,placket,waists top fabric and adhesive products smooth stiff and resistant to washing,wrinkle-resistant,especially suitable for bonding various resin collar linings and non-woven linings;
Specification：
Model

KL-MS450/MS500/MS600

KL-H300/H400/H500/H600

Max.bonding width450/500/600mm300/400/500/600mm
Upper belt width*length450*1350/500*1350/600*1350mm300*1530/400*1530/500*1530/600*1530mm
Botton belt width*length450*1650/500*1650/600*1650mm300*1840/400*1840/500*1840/600*1840mm
Operating speed of conveyer belt0-10m/min
Bonding pressure0-0.3MPa
Bonding temperature≤190℃
Motor power of conveyer belt50W70W
Electric heating power5.2/5.2/6kW4/5/6.5/7.5kW
Power supply220V/1PH/50Hz220V/1PH 380V/3PH/50Hz
G.W.202/202/222kg144/160/176/194kg
Out line dimension(L*W*H)1965*973(1073)*1093mm2320*900(1000/1100)*1095mm
Packing size1050(1050/1130)995*730mm1050*755(855/955/1055)*730mm
