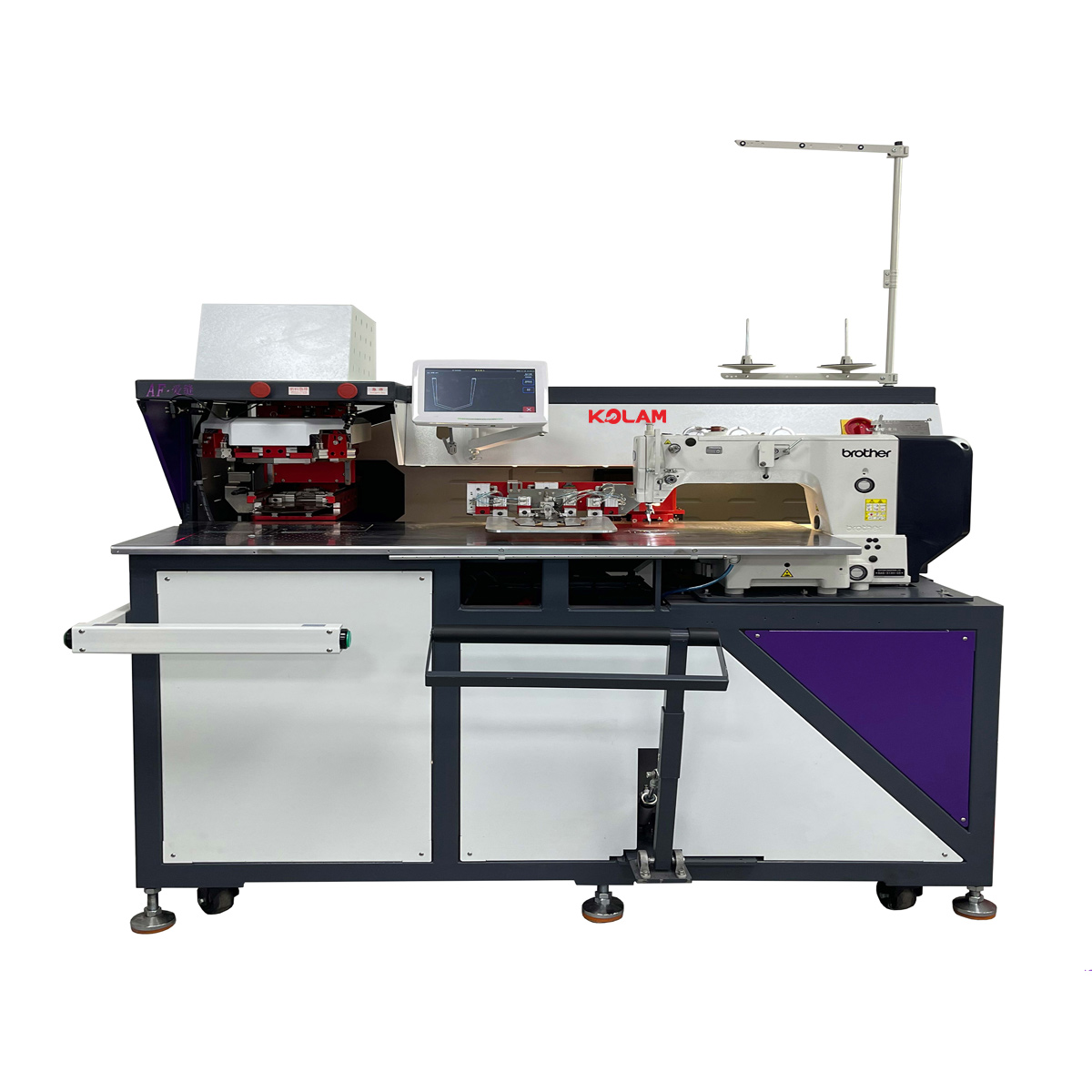

KL-LT288-311 3D Pocket Welting Sewing Machine
KL-LT288-311
The biggest feature of the KL-LT288-311 pocket flap machine is that it has excellentontrol over special soft, elastic and smooth fabrics.
Quantity:
Description:
KL-LT288-311 3D Pocket Welting Sewing Machine
1.Equipped with Japanese Brother BAS-31XH-05 pattern sewing head.
2.Quick replaceable mold design, compatible with both thick and thin fabrics.
3.The pattern sewing head adapts to both thick and thin materials. With matched presser foot installed, it can achieve perfect sewing stitches.
4.Full computer program controlled, servo + pneumatic drive, easy operation and high stability.
5.Suitable for patch pockets and back pocket sewing on jeans, knitwear, shirts, work clothes, leisure wear and military uniforms. It can sew pocket flaps simultaneously and supports customized production.
2.Quick replaceable mold design, compatible with both thick and thin fabrics.
3.The pattern sewing head adapts to both thick and thin materials. With matched presser foot installed, it can achieve perfect sewing stitches.
4.Full computer program controlled, servo + pneumatic drive, easy operation and high stability.
5.Suitable for patch pockets and back pocket sewing on jeans, knitwear, shirts, work clothes, leisure wear and military uniforms. It can sew pocket flaps simultaneously and supports customized production.
Finished Product Effect:
Parameter：
| Machine model | KL-LT288-311 |
| Machine head | Brother BAS-31XH-05 |
| Production capacity (per hour) | 90-120 pcs/hour (Depends on pocket size and number of sewing stitches) |
| Hook type | Shuttle hook |
| Max sewing range | 250mm × 250mm |
| Min sewing range | 100mm × 100mm |
| Max speed | 3000 RPM |
| Stitch length | 0.1 - 12.7 mm |
| Machine size | 173cm × 154cm × 156cm |
| Package size | 180cm × 160cm × 176cm |
| Net weight | 450 kg |
| Gross weight (G.W.) | 620 kg |
| Working voltage | AC 220V |
| Working air pressure | 5 Bar (Low air pressure alert when pressure below 5 Bar) |
| Air consumption | 230 L/min |
Video:
