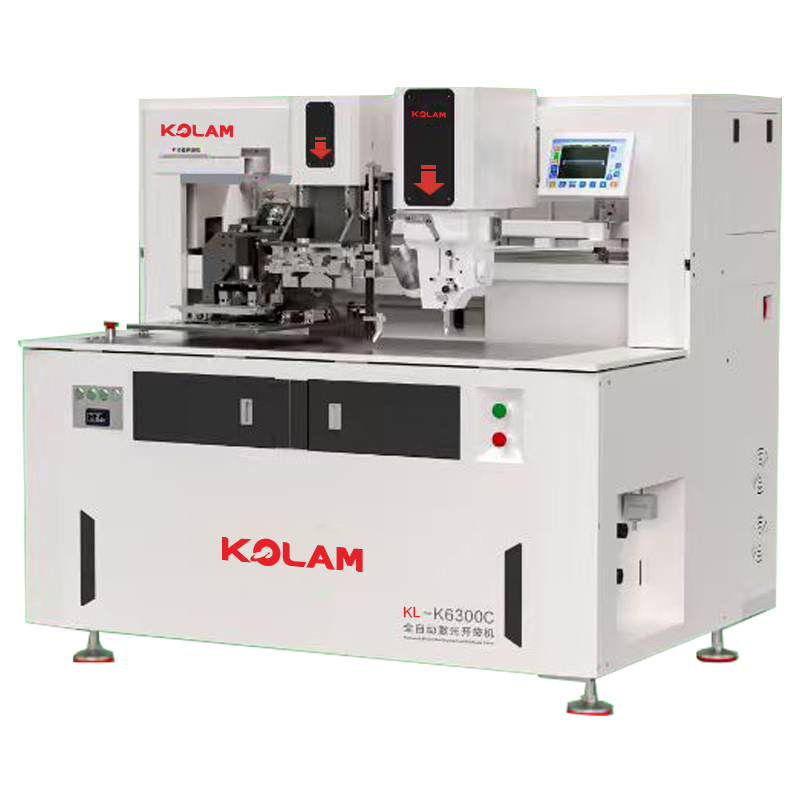

KL-K6300C Automatic Pocket Welting Machine With Laser Cutter

KL-K6300C

Quantity:

Contact Now

add to cart

Description:

KL-K6300C Automatic Pocket Welting Machine With Laser Cutter

1. Equipped with Elevatable Head: Equipped with an elevatable head to prevent needle jamming on thick materials, minimize materials waste and provide larger workspace for placing cutting pieces.

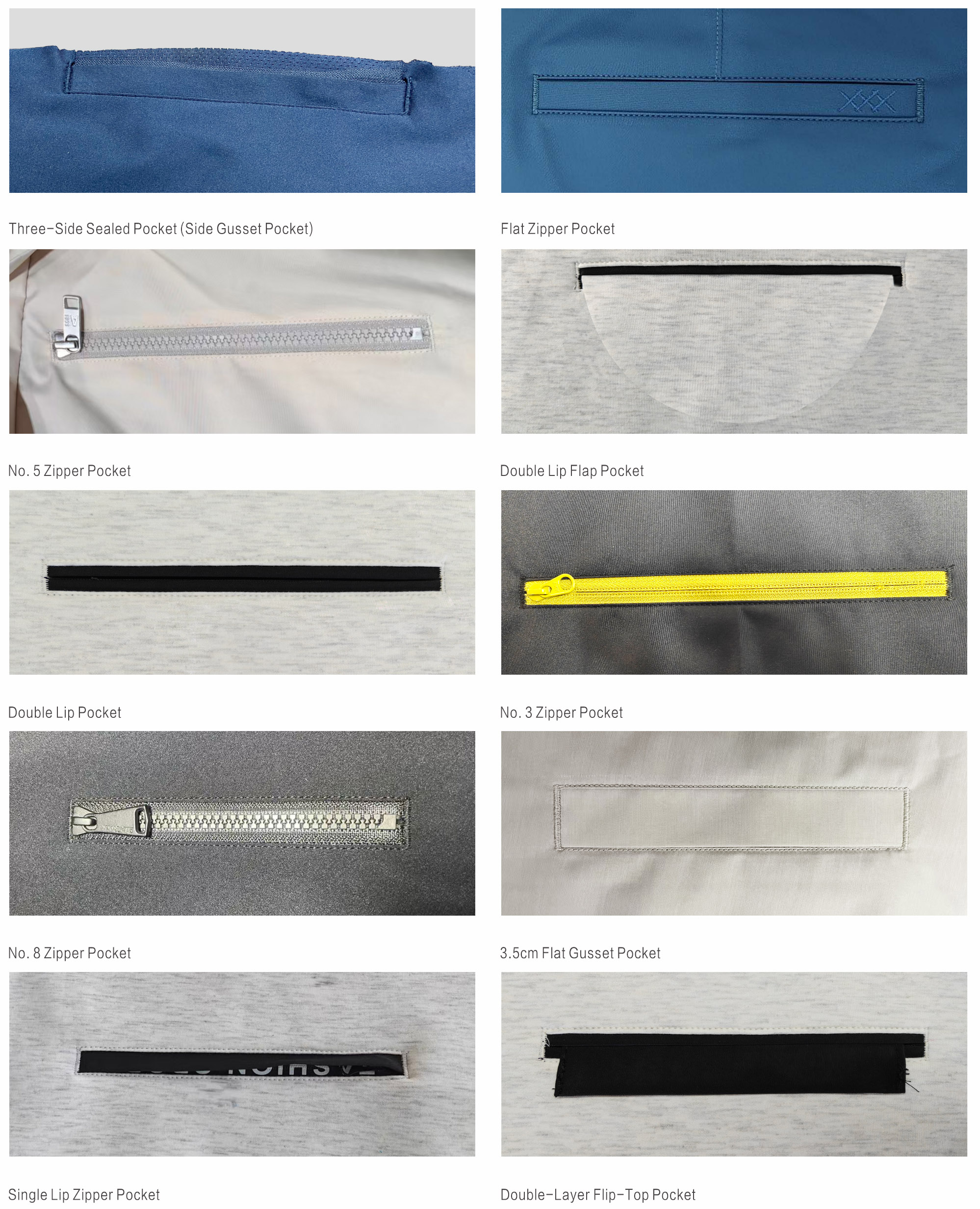

2. Large Sewing Width & Long Stroke: Maximum width up to 40 mm. Maximum customizable length up to 290mm, meeting diverse pocket welting applications.

3. Faster, More Stable Pocket Folding: Pocket welting efficiency increased by 33%, with cycle times of 15-18 seconds to mock pockets with bartack and 22-28 seconds for 3D pockets.

4. Multi-Stage Material Feeding System: Stepper motor controls feeding length, ensure natural sewing edges, delivering straighter and more unfirm sewing edges.

5. Pocket width, precisely controllable: The puller knife and material stop plate precisely control the pocket width viamotorized adjustment. Simply enter the value on the operation screen, and the system automatically positions itself-no screw disassembly required, eliminating the need for pocket template change.

6. Detachable Sub-Presser for Enhanced Fabric Stability: The system effortlessly handles fabrics of all thicknesses, allowing it to spread the fabric more naturally.

7. Precision-Controlled Main Fabric Presser Frame: The system effortlessly handles fabrics of all thicknesses simply.

Detail:

Specification:

Customized Maximum Sewing Area	220x40(mm)
Factory Default Sewing Area	200x40(mm)
Maximum Sewing Speed	2800RPM
Speed Setting	100-2800RPM
Stitch Length	0.1-12.7
Pattern Storage	Internal Storage, USB Storage
Stitch Formation Mechanism Type	Rotary Hook
Needle Type	DP17*14#
Presser Foot Type	Motor-driven
Cylinder	Airtac
Power Supply	AC 220V 50HZ, Need To Be Grounded
Spindle Motor	Servo Motor
Language Selection	Chinese, English, Japanese, Korean, Turkish
Machine Head	Elevating Machine Head
Sewing Area Oil Supply	Mini Oil
Hourly Production Rate	120-180pcs
Applicable Fabrics	Suitable for Knitted and Woven Fabrics
Maximum Pocket Size	220x40(mm)
Electrical Control System	Systemtop
Dimensions	1800x1300x1660(mm)
Machine Weight	Gross Weight 1 ton
