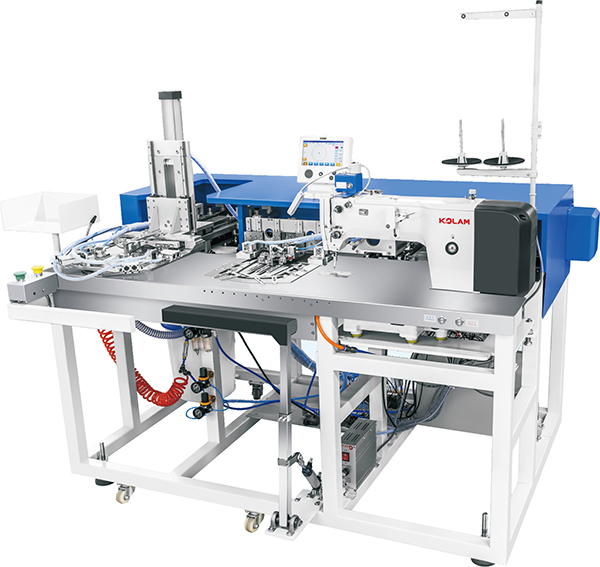

KL-BAS311-2023PK Full Automatic Pocket Machine（Brother BAS311HN-05XT）

1.High-speed cold-folding mechanism for more production；

2.Optional reinforcement device to meet different requirement；

3.Available optional double needle device to meet double color stitch requirement；

4.Special-designed double pin mechanism to offer a huge range of adjustable lossness；

5.Mould Quick change system, changing time less then 2 minutes;

6.Retractable inner clamp;

Optional available:

1.Reinforcement pad feeder for bar-tack area;

2.Oval reinforcement XY 25x15mm;

3.2-needle version (1002F-BR-2);

1.Apply to Medium & Heavy Fabric;

2.Production : 110-140 pairs / hour;

3.Sewing Area : 90mm*90mm - 250mm*250mm;

---

Specification:

Machine Model	KL-BAS311-2023PK
Machine Head Model	Brother BAS 311HN
Maximun Sewing Speed	3000sti/minS
Needle Type	DP*17
Stitch Length	0.05-12.7mm
Sewing Area	90*90mm-250*250mm
Shuttle type	Half-Rotate 2 times Capacity bobbin
Thread Breakage Detection	Equipped
Motor Power	Panasonic Servo Motor 750W
Power Supply	220V-204V
Air Pressure/Consumption	0.5MPa/20L/min
Machine NW	545KG
Machine GW	650KG
Machine Size	2000*1230*1560mm
Machine Package Size	2020*1320*1710mm
Machine Feature	Stepping Feet Equipped;Electric Thread Clamp; Quick Jig changing;Quick design making;

---
