sleeve making machine

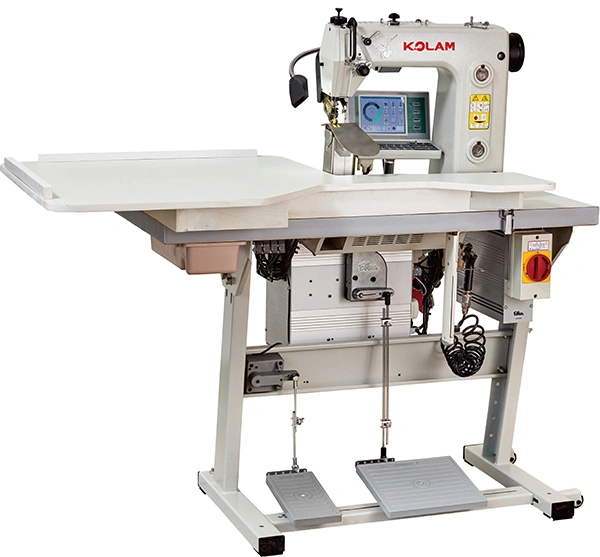

KL-550A Computerized Sleeve Setting Machine（single motor）

KL-550A
The machine is used to complete the sleeve setting process
Quantity:
Contact Now
add to cart
Description:
1.Single motor up feeding;

2.LCD with buttons;

3.Armhole curve guiding;

4.Wrinkle value define per segment;

5.Wrinkle value control by pedal;
Application:
The machine is used to complete the sleeve setting process.Meanwhile,the corresponding wrinkle value can be adjusted.It is typically applied on businedd suit,overcoat,casual attire,chiledren wear,rtc.
Specification:
ModelKL-550A
Sewing speed4000 stitches/min
Needle bar stroke41mm
Max lift of the presser toot8mm
Thread number2
Needle134-35 DP*35 9#-16#
Needle positioningA
Lock stitch1.5-5.5mm
Vertical rotary hookA
Thread trimmerA
Oil feedingSpindle
Air pressure0.5Mpa
Motor power0.75kW
Input220V 50Hz
Computer controlA
Storage number of sewing patterns  100
