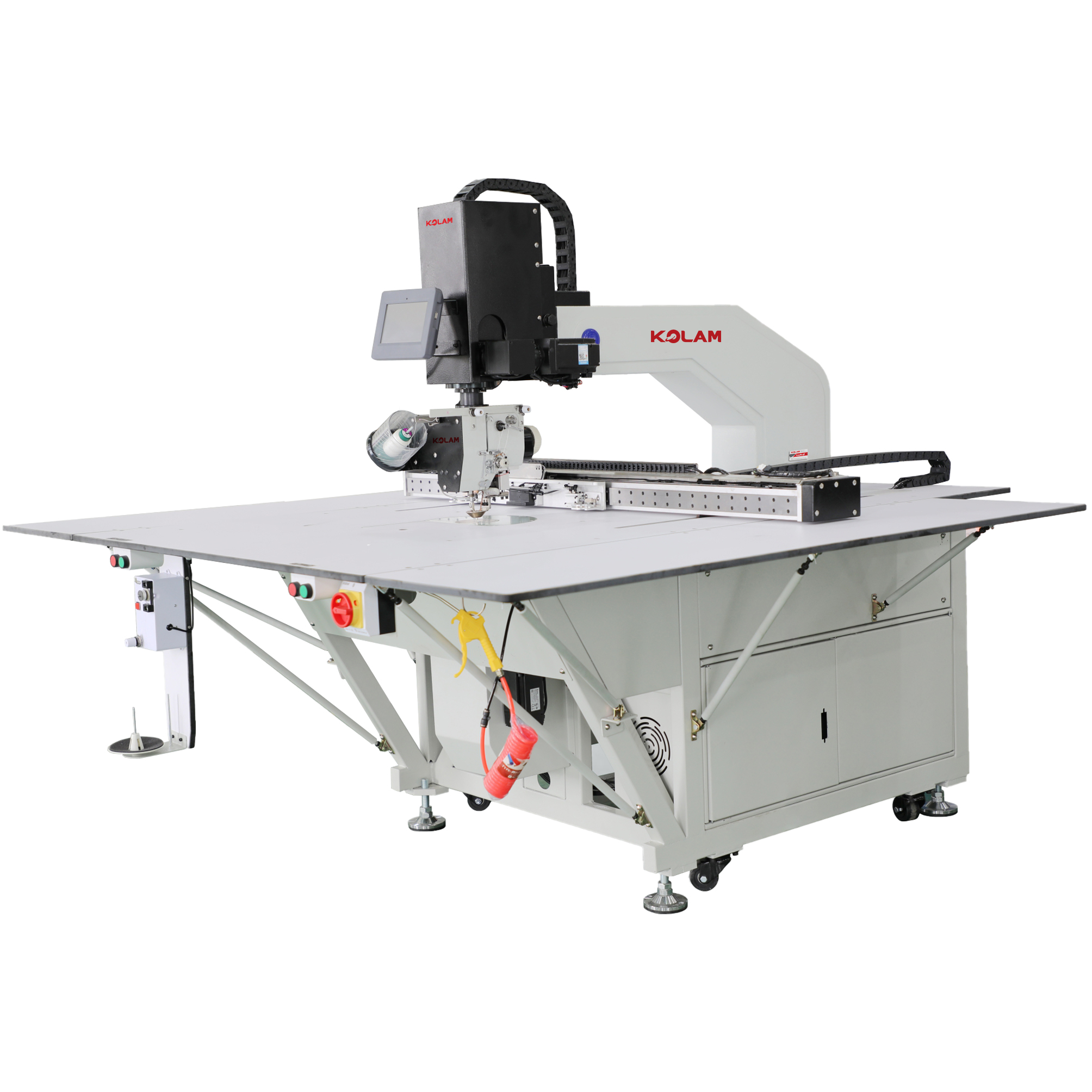

KL-10060-1SD Head Rotate Head Lift Template Sewing Machine
KL-10060-1SD
Quantity:
Description:
KL-10060-1SD Head Rotate Head Lift Template Sewing Machine
1. Large Sewing Area & High-Speed Performance：Sewing Area: Standard X1000 × Y600mm (expandable up to X2600 × Y1300mm)，Max Speed: 2500 RPM with a maximum stitch length of 12.7mm，Program Capacity: Supports up to 100,000 stitches per program and stores 999 programs.
2. Advanced Control & Connectivity：10-inch Touch Screen: User-friendly interface with multilingual support (Chinese/English)，RFID & IoT Integration: Enables production data tracking and real-time statistics.
3. Precision Drive System：9 Driving Motors: Ensures smooth and powerful operation，X/Y Axis Mechanism: X-axis uses a lead screw, while Y-axis employs a synchronous belt for stability at high speeds，Special Speed Reducer: Enhances durability and performance.
4. Enhanced Lubrication & Durability：Micro-Oil Lubrication System: Prevents oil leakage in the sewing head and hook (adjustable oil output)，Strong Mechanical Presser Foot: Improves fabric handling and stitching consistency.
5. Thread & Trim Stability：Electromagnet Thread-Releasing Structure: Ensures stable auto-trimming，Exclusive Base Design: Reduces noise and enhances machine stability during operation.
6. Flexible Power & Structural Design：Voltage Compatibility: Works with AC110V or AC220V power supply，Rotating Head & Lift Mechanism: Allows versatile sewing applications with reduced material handling.
Specification:
| Model | KL-10060-1SD |
| Rotate | 360 degree head rotate 8CM head lift |
| Sewing area X*Y | 1000x600mm(Accept OEM) |
| Feeding type | X Leading screw,YSynchronous belt |
| Hook | XL-Hook(26mm) |
| File format | Convert DXF/Al/PLT format to SLW format with programming software |
| Needle No. | DPx17 |
| Trimmer | Flat trimmer |
| Inner presser foot | Mechanicalinnerpresserfoot |
| Outer presser foot stroke | 15mm |
| Inner presser foot stroke | 0-8mm |
| Inner presser foot lifting height | ≤20mm |
| Package Carton size | (L)205x(W)125x(H)175 cm |
| Unfold size | 201x198 cm |
| Fold size | 201x125 cm |
| Net weight/gross weight | 680kg/720kg |
| Power | 1500W |
| Air presser /air consumption | 0.4-0.6Mpa 3L/min |
