KL-1280AP Fully Automatic Perforation (Round-hole)
KL-1280AP
Suitable for punching, embroidering, and sewing processes on various types and thicknesses of genuine leather and microfiber leather, widely used in automotive seats, car interiors, aviation seats, luggage, furniture, and related industries.
Quantity:
Description:

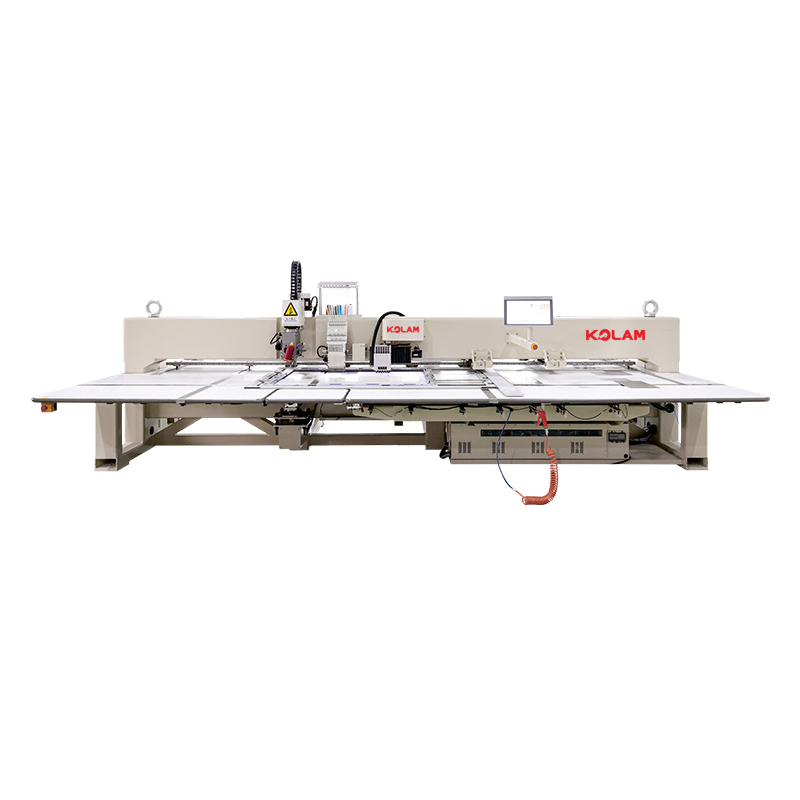

KL-1280AP Fully Automatic Perforation (Round-hole)+Embroidery+ Sewing (Rotating Head) Machine (SewPerEmb Pro)
1.Integrates punching, embroidery, and sewing functions into a single machine, enabling arbitrary pattern design and seamless combination of these processes for complex manufacturing needs.
2.A robust machine frame and custom-designed fixtures, specifically engineered for integrated processes, ensure easy material handling and high processing precision.

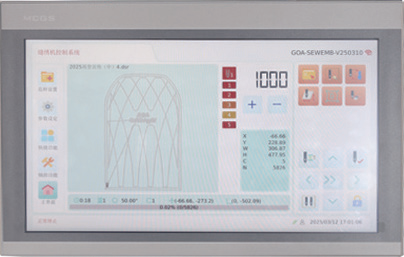

3.15-inch touchscreen control panel offers a user-friendly interface for easy operation.
4.Specialized punching head developed for leather, equipped with six standard punch sizes (0.8–2.5mm) for diverse hole pattern requirements.
5.9-color embroidery head features an advanced thread clamping mechanism that reduces thread breakage and dropout, meeting diverse embroidery needs.
6.Specialized sewing head engineered for leather delivers beautiful stitching; motor-controlled presser foot with a wide adjustment range.
7. Sewing head lifts up to 50mm, providing ample space for easy material loading.
8. Includes upper thread breakage detection, bobbin thread counting, and piece counting functions.
9.Needle bar and related parts feature DLC coating for wear resistance and extended service life.

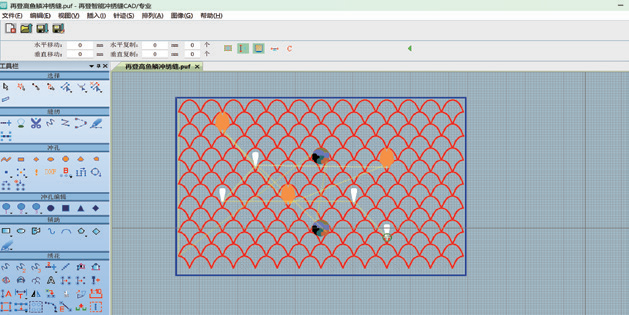

10.Optional: Professional pattern making software -- RaiseAgain SerPerEmb CAD system.

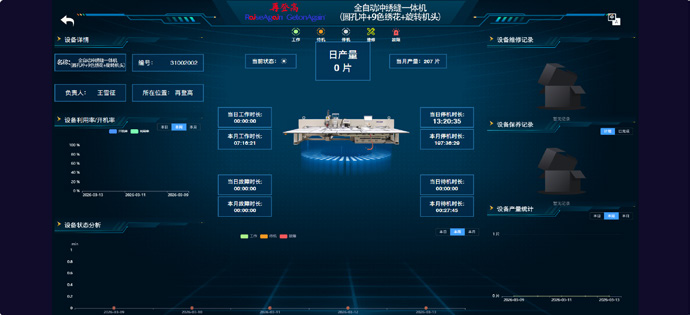

11.Optional: Can be equipped with a smart IoT system for real-time cloud data management, improving production efficiency and establishing a digital production control system.
2.A robust machine frame and custom-designed fixtures, specifically engineered for integrated processes, ensure easy material handling and high processing precision.
3.15-inch touchscreen control panel offers a user-friendly interface for easy operation.
4.Specialized punching head developed for leather, equipped with six standard punch sizes (0.8–2.5mm) for diverse hole pattern requirements.
5.9-color embroidery head features an advanced thread clamping mechanism that reduces thread breakage and dropout, meeting diverse embroidery needs.
6.Specialized sewing head engineered for leather delivers beautiful stitching; motor-controlled presser foot with a wide adjustment range.
7. Sewing head lifts up to 50mm, providing ample space for easy material loading.
8. Includes upper thread breakage detection, bobbin thread counting, and piece counting functions.
9.Needle bar and related parts feature DLC coating for wear resistance and extended service life.
10.Optional: Professional pattern making software -- RaiseAgain SerPerEmb CAD system.
11.Optional: Can be equipped with a smart IoT system for real-time cloud data management, improving production efficiency and establishing a digital production control system.
Detila:
Main Configuration

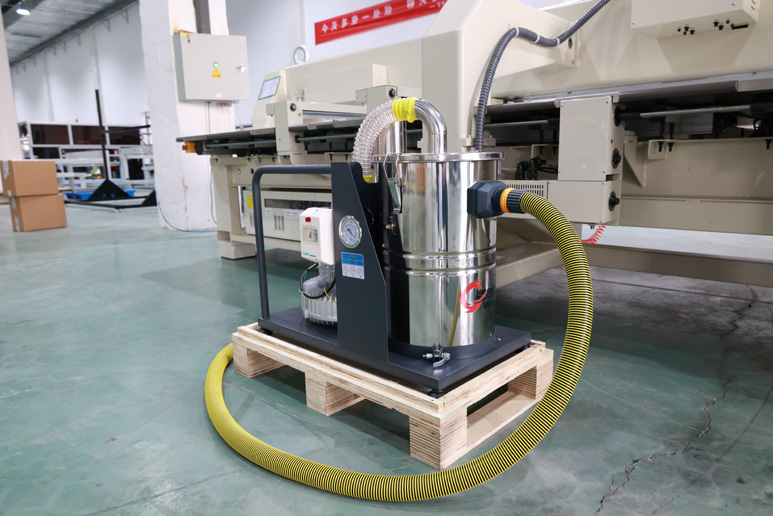

15-inch High-Definition Touch Screen Industrial vacuum cleaner
Optional
Configured stainless steel table, Strong and durable SewPerEmb CAD GOATS-IIoT System
Parameter：
| Embroidery Speed | 800-1000sttches/min |
| Sewing Speed | 1000-1200stitches/min |
| Punching Speed | 800-1000holes/min |
| Sewing Needle | 18-23# |
| Embroidery Needle | 9-16# |
| Stitch Length | 0.1-25.6(mm) |
| Material Clamping Method | Embroidery Frame Clamping |
| Sewing Bcbbin | Leather-specific 2.6 times large bobbin |
| Oil supply | Automatic oil supply |
| Air Pressure | 0.6MPa |
| Power Supply | 3P 380V |
