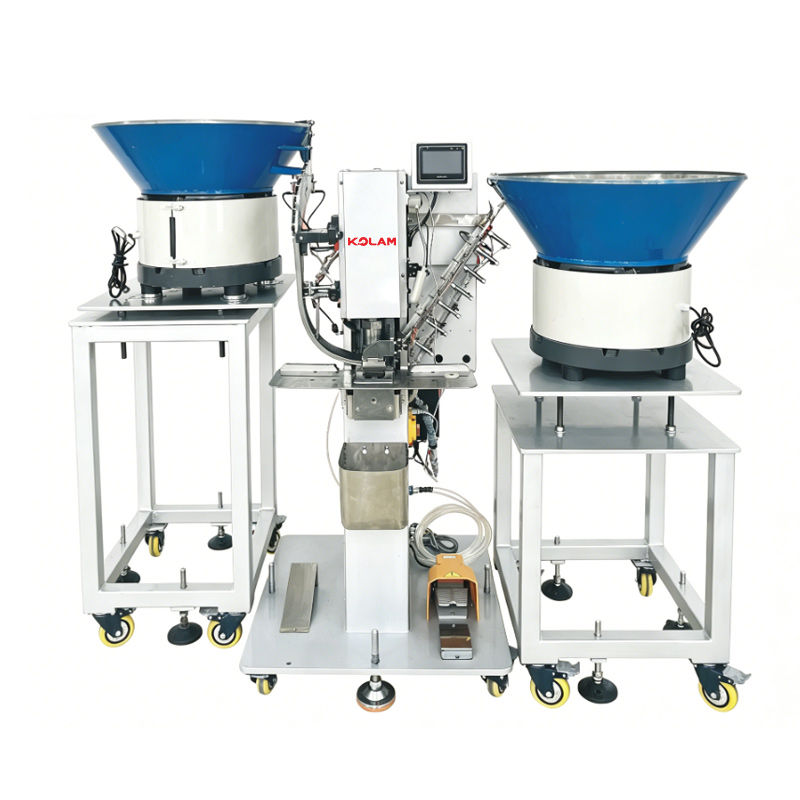

KL-98F Automatic Rivet (Punching)Machine for Curtains (4000# eyelets)
KL-98F
This machine is applicable to curtains, tarpaulins, woven bags(leather, fabric), etc., for the riveting of large-sized metal eyeletsand plastic eyelets.
Quantity:
Description:
KL-98F Automatic Rivet (Punching)Machine for Curtains (4000# eyelets)
1.This machine adopts a touch screen control system to adjust parameters, featuringsimple and convenient operation.
2.This machine has been upgraded with servo motor control for forward and reverserotation of the entire operation, eliminating the need for manual rotation. The speed canbe adjusted at any time by simply modifying parameters, with a eyelets riveting capacityranging from 40 to 60 eyelets per minute.
2.This machine has been upgraded with servo motor control for forward and reverserotation of the entire operation, eliminating the need for manual rotation. The speed canbe adjusted at any time by simply modifying parameters, with a eyelets riveting capacityranging from 40 to 60 eyelets per minute.
3.The main structure of this machine employs in-situ punching, upper eyelet and lowereylet, all completed in one integrated process. No specialized technicians are required,as ordinary staff can easily master the operation. This design saves time and effort,
boosts production efficiency.
boosts production efficiency.
4.This machine adopts a double vibrating plates split-type feeding device, featuringsimple and convenient adjustment and ensuring more stable button feeding.
5.This machine features a button feeding sensor device, preventing empty punching inthe absence of bottom buttons, reducing unnecessary material waste, and enhancingwork efficiency.
6.This machine is equipped with laser positioning, making operations more intuitive,accurate, and stable.
6.This machine is equipped with laser positioning, making operations more intuitive,accurate, and stable.
7.This machine features an automatic counting function.
8.This machine is equipped with a waste hopper, allowing waste material to directly fallinto the hopper. This design reduces the need for manual cleaning, keeping theproduction workshop environment cleaner and tidier.
9.This machine is applicable to button specifications between 2000# and 4000#.
Detial:
Parameter：
| Model | KL-98F |
| Voltage | 220V 50-60HZ |
| Motor Power | 2.35KW |
| Air Pressure | 0.4MPA |
| Two Vibrating Plates | 1320*760*1740MM |
| Gross Weight | 430KG |
| Runner In The Middle | 1120*870*1720MM |
| Gross Weight | 310KG |
Video:
