KL-254BS Beltloop Setter

KL-254BS
Quantity:
Contact Now
add to cart
Description:
1.Feeding, cutting ,folding, inserting and stitching the loop accordingly needed length;
2.Loop joint detection : The unit will cut and blow out the joints；

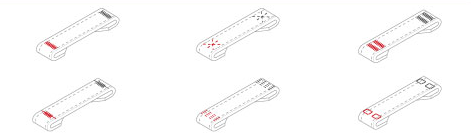

3.The loops can be cut straight or in angle, “V”-cut, to prevent/reduce manual cutting after stitching/washing；
4.Compensating pressure feet for thickness calibration；
5.Optimized programming system for making the bar-tack design on the unit over color touchscreen;
6.Height adjustable stand by handle, in order to get the best ergonomic position for the operator;
7.Optimized edge adjustment can be done by operator；
8.Panasonic drive and motor for loop feeding；
Optional available:
1.Inserted loop device (Parts);
2.Needle distance 45-100mm;
Efficiency:
1.Production capacity: 2618 pants can be produced in 8 hours per machine (±30%);
2.5 loops can be made within 11 seconds;
Detial:



Standard trousers ear:
