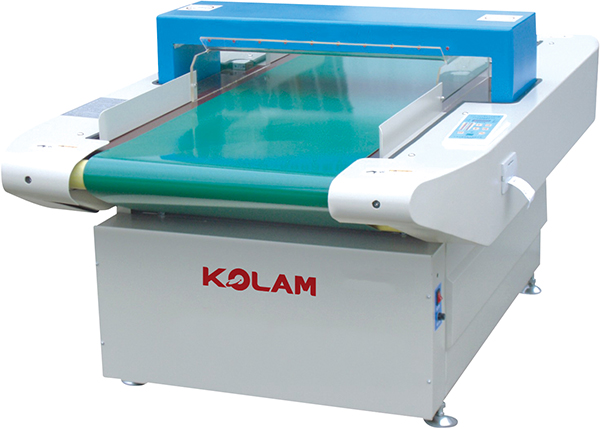

KL-630-12P/15P/20P/25P Single/Double Probe Automatic Conveyor Series Needle Detector

KL-630-12P/15P/20P/25P
Optional: Printing(Detection Height 12cm/15cm/20cm/25cm)
Quantity:
Contact Now
add to cart
Description:

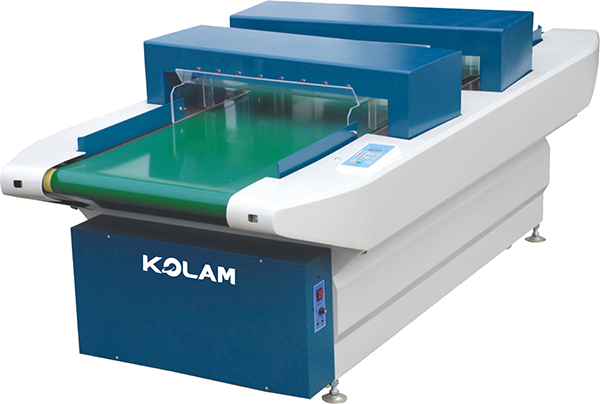

             Single probe needle detector                                                                Double probe needle detector
1.Super anti-interference computer chip integrated circuit;The double probe needle detector adopts dual-channel signal detection circuit merging technology, which has high sensitivity and high anti-interference ability；
2.All function keys are light touch switches,which avoid the disadvantages of easy damage of mechanical keys;
3.With position display function,eight indicator lights show the exact position of broken needle;
4.Optional printer can be added,print test results in time, more convenient and efficient;
5.With counting function,distinguish between good and bad products;
6.Alarm function is sound,light and stop machine,sensitivity is 1-10 pole adjustment;
7.It has B/C(accessories/finished products)mode switching function,adapt to different product testing;
8.High sensitivity.When the detection height of the gantry is 12cm,the detection standard is 1.0mm;

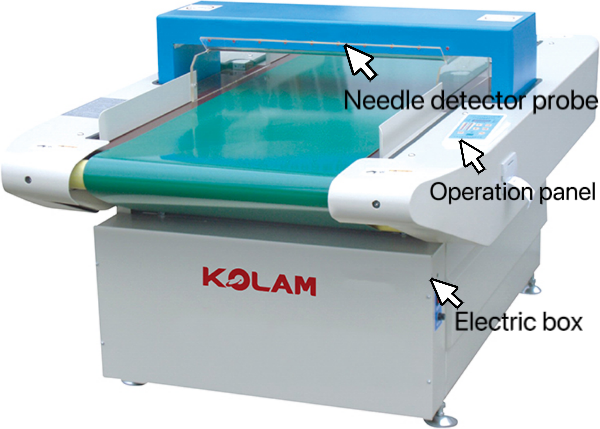

Machine composition：
1.Needle detector probe: built-in 32 sets of magnets and coils, using thickened permanent magnets to ensure stable sensitivity；

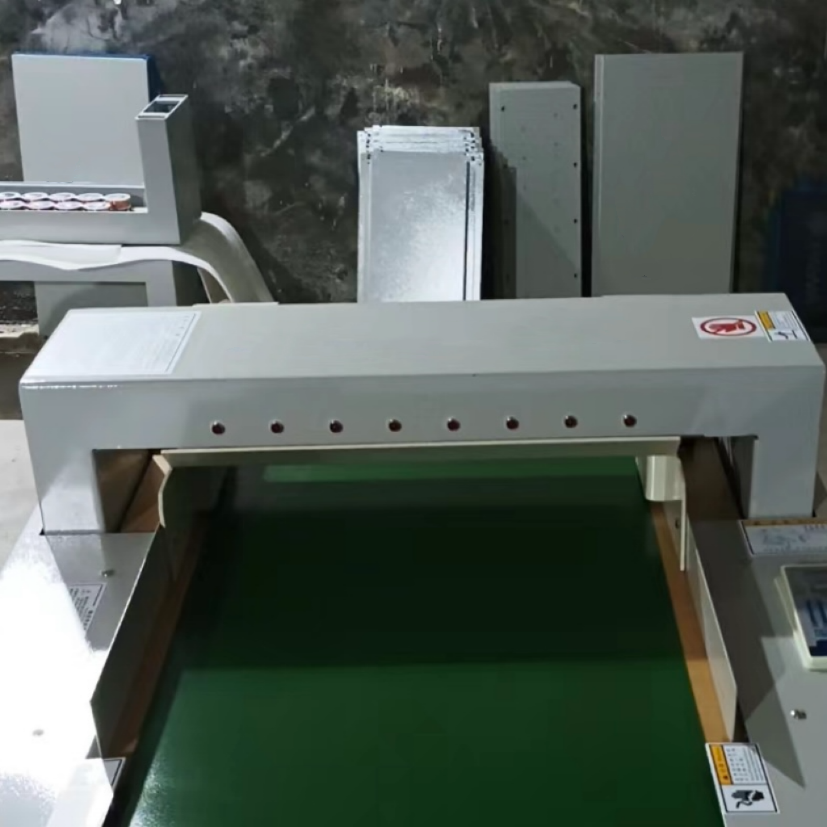

2.Detection height: The detection height is the distance from the conveyor belt to the upper probe. The detection height can be selected as 12cm/15cm/20cm/25cm; the lower the detection height, the better the sensitivity;

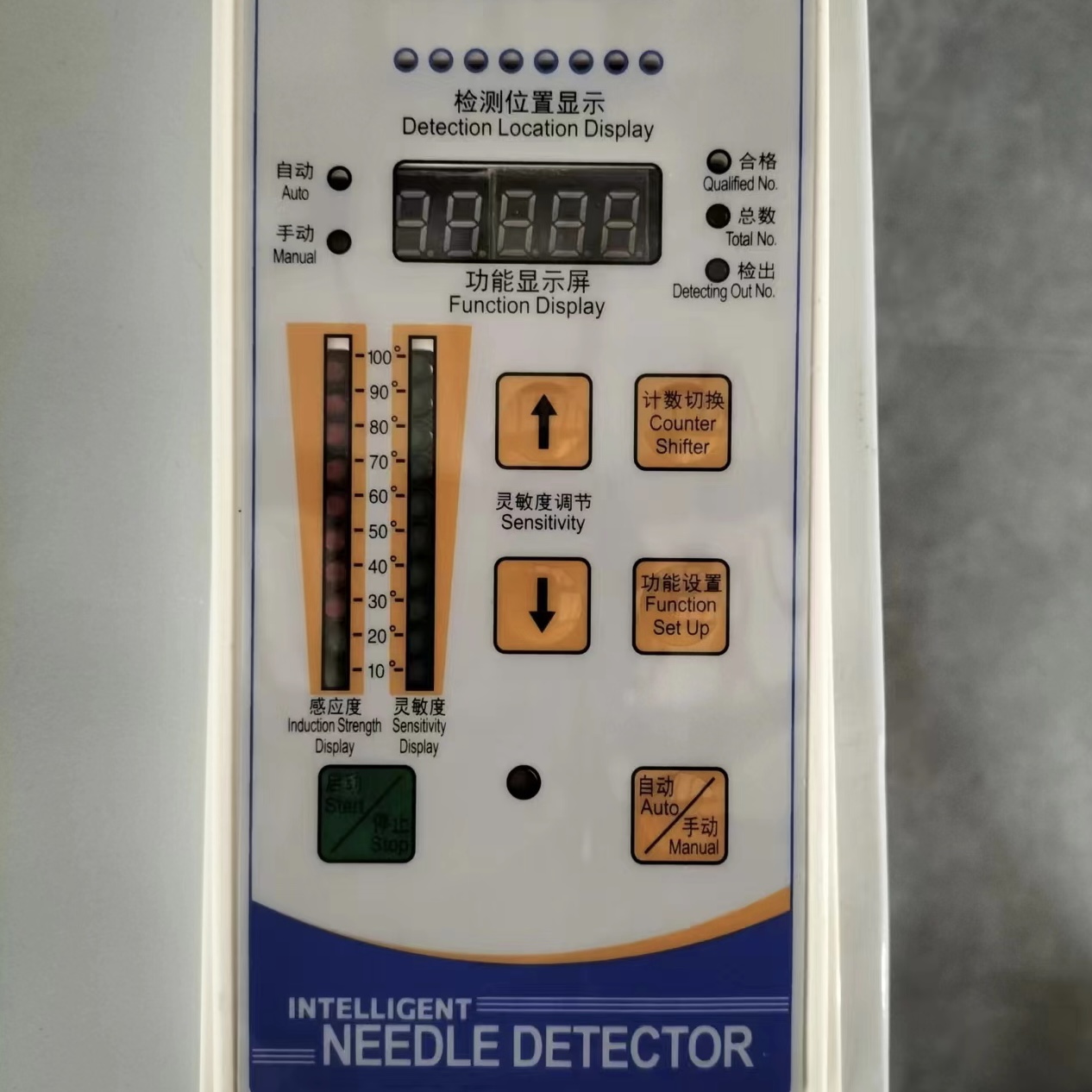

3.Operation panel: Front operation panel, easy to operate, ASMD-630E model adopts digital display, simple operation；

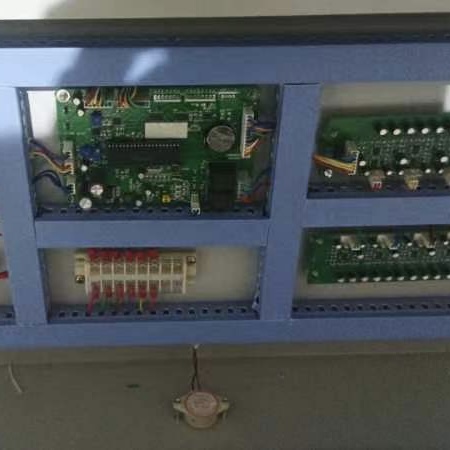

4.Electric box: integrated circuit board, chip, buzzer；
Application：
1.Detect broken needles and ferromagnetic fragments in stitched products(clothing,toys,handbags,etc.);
2.Probe the remaining needles and nails and other unpulled metal objects in the shoe material;
3.Detect ferromagetic substances mixed in chemical raw materials,rubber and paper industry;
4.Detect non-ferrous substances,such as copper,aluminum and stainless steel,whether they contain iron(hardware accessories-buttons,zippers,rtc.);
