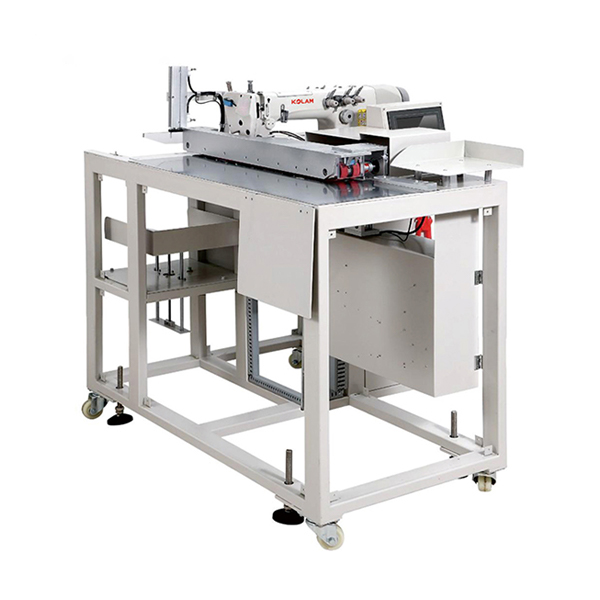

KL-8338P-PLB Automatic Pocket Mouth Culing Machine(Chain Stitch)
KL-8338P-PLB
Applicable pocket of jeans casual pants.
Quantity:
Description:
KL-8338P-PLB Automatic Pocket Mouth Culing Machine(Chain Stitch)
1.Automation:No curling edge exposed,and the width of curling edgeis adjustable.
2.Efficiency:The efficiency is increased by triple times compared withthe traditional procedure.
3.No skilled workers are needed;simple training is sufficient to operate.
2.Efficiency:The efficiency is increased by triple times compared withthe traditional procedure.
3.No skilled workers are needed;simple training is sufficient to operate.
Detail:
Related products：
KL-8720-5-DK Automatic Pocket Mouth Curling Machine(Lock Stitch)
Specification:
| Sewing process | Pocket mouth curling |
| Maximum sewing speed | 4000 rpm |
| Machine needle | TVX7 |
| Standard stitch length | 1/4”(6.4mm) |
| Optional stitch length | 5/16(7.9mm)3/8'(9.6mm)1/2"(12.7mm) |
| Machine sewing length | 0.9mm-4.0mm |
| Presser height | 10mm |
| Feeding device | Standard equipment |
| Curling dege width | Adjustable |
| Material receiving device | Standard equipment |
| Control system | Japan Mitsubishi |
| Machine size | 1062x1000x1240mm(LxWxH) |
| Weight | 190kg |
